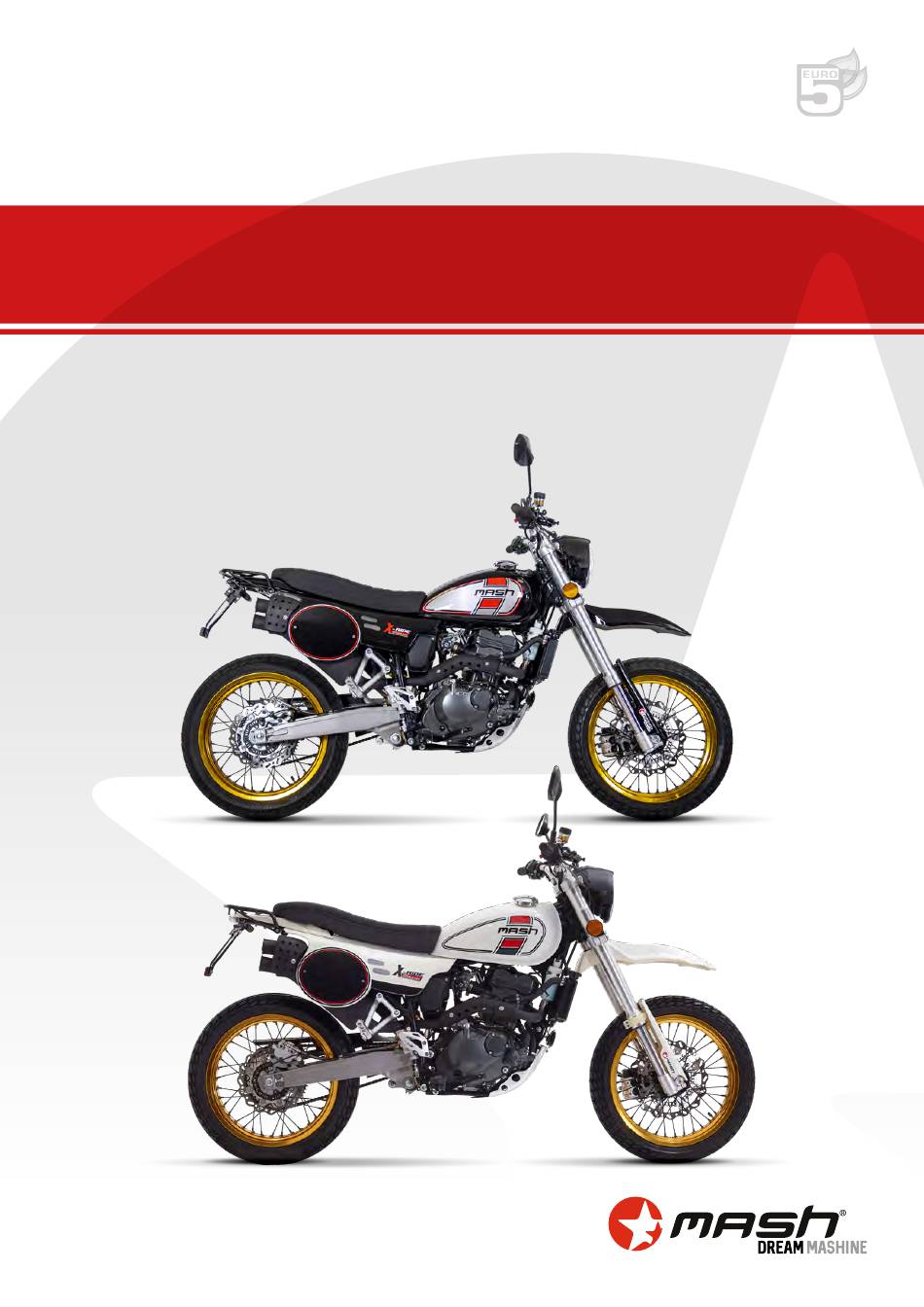

- Page 1 cc cc USER MANUAL X-RIDE X-RIDE...
- Page 2 Congratulations ! You are the happy new owner of a MASH which embodies a new spirit, a new trend : a motorcycle with a look and a philosophy «Vintage», synonymous of freedom. Please read this manual thoroughly before using your MASH.
- Page 3 Important Cautions About running-in of a motorcycle The first 1000 km operation is very important in the entire service life of a motorcycle. A correct running-in can guarantee both the longest service life and the best performance of the vehicle. Running-in can polish machined surfaces and form smooth engagement.
-
Page 4: Table Of Contents
Observing the following recommendations will ensure the reliability of your motorcycle and prolong its life. The staff of MASH authorized dealers (list available by consulting the website www.mash-motors.fr) have the skills and technical qualifications required to carry out maintenance and provide quality service. -
Page 5: I Main Technical Data
I - Main Technical Data Mash X-Ride 125cc Euro 5 Engine Type Single cylinder 4T, liquid cooled Engine Capacity 124 cc Compression Ratio 8.3:1 Idle speed 1500±100 RPM Power max 15 hp/9000 rpm (11kW) Torque max. 11,5N.m/8500 rpm Ignition Transmission... -
Page 6: User Instruction
II - User Instruction Preparation before use • Read the user manual carefully This user’s manual describes the standard and safety method as well as basic • Maintain and check the vehicle before using it maintenance. Read it carefully. • It is necessary to have the driving license corresponding to your vehicle and that The images and illustrations in this manual may differ from those of your vehicle, if it is insured... -
Page 7: Installation Position Of Parts
If this light comes on, you should contact a dealer 8. Engine Light Coolant Lights up in case of engine malfunction. If this light comes on, you must visit an authorized Mash dealer for diagnosis.. 9. Gear indicator 10. Neutral indicator: Illuminates when in neutral Front Footrests... -
Page 8: Ignition Switch
11. Kilometers/Miles setting: Ignition OFF, press and hold the “info” switch, then turn the key to ON (keeping the info key pressed). keeping the info key pressed). When the display is on, release the “info” switch. A short pulse (minus 1 second) will switch from kms to miles. A long impulse (3 seconds) will select “Sensor”... -
Page 9: Control System
V - Control system Right handlebar control system Left handlebar control system Electric starter button Press this button to start the engine. Dimmer switch Caution Press the button, using the switch allows Make sure that the vehicle is always in you to choose the distance of the headlights : neutral position (N or 0) and always operate high or low. -
Page 10: Essentials Of Driving
VI - Essentials of driving Caution Make sure that the vehicle is always in neutral position (N or 0) and always Fuel tank cap operate the clutch lever before starting the engine To open the tank cap, insert the key and turn it To start the engine clockwise. - Page 11 • Always start the vehicle first and start as gently and carefully as possible. If you park the motorcycle on a slope, stop it uphill to prevent it from • If you hear any abnormal noise while driving, contact a MASH dealer to have descending.
-
Page 12: Controls And Setting
VII - Controls and setting Parking and using the steering lock Place the motorcycle on level ground and put on the side stand. Running-in Then turn the handlebars to the stop on the left side and position the key switch in The importance of a good running-in of the new vehicle has been stressed in the the steering lock position (padlock logo). - Page 13 Engine oil Coolant Replacing the engine oil. Caution This engine has a liquid cooling system. During the operation of the Engine oil plays an important role in the normal operation of the engine and for motorcycle, the coolant is at high temperature and high pressure in the cooling this reason it is necessary to check the engine oil periodically and to renew it after the system.
- Page 14 First turns of the wheel with the motorcycle Brakes - Adjust the «play free» of the rear brake pedal and the front brake lever Caution - Ensure effective braking - Check for leaks Start the engine with the transmission in neutral, the clutch engaged and the Indicator lights Engine light, gear engaged, oil level, turn signals, high beam rider in the normal driving position.
-
Page 15: Inspection And Maintenance
To ensure your safety, it is recommended that inspection and The greater the braking distance the faster the vehicle speed is. Be sure to maintenance be performed by your authorized MASH dealer. correctly assess the distance to the vehicle or object in front of you to brake Caution accordingly. - Page 16 * Coolant Replace every 2 years or 20,000 km Legend: I: Carry out an inspection, cleaning, adjustment, tightening, lubrication or replacement. N: Cleaning. R: Replacement. S: Tightening * This item should be serviced by a MASH dealer Back to summary...
- Page 17 Engine oil Spark plug The longevity of the engine depends on the quality of the oil used, the frequency After driving the first 1000 km, then every 5000 km, clean the carbon deposits from of its replacement and the checking of the oil level. the spark plug using a small wire brush or spark plug cleaner.
- Page 18 If the ABS warning light comes on on the speedometer, it is necessary to go to an - If you notice oil leaks and blockages, contact your Mash dealer for service. authorized Mash dealer in order to carry out a precise diagnosis.
- Page 19 Once the position has been adjusted, lock it using the lock nut (2). Please maintain The proper functioning of the brakes is essential for driving safety. Have the brake system periodically inspected by your authorized MASH dealer. a clearance of between 10 and 20 mm (3).
- Page 20 Exhaust pipe Warning Brake fluid is poisonous. In case of accidental ingestion, spit it out vigorously. It is advisable to stay away from the exhaust pipe after a long journey to avoid any In case of contact with skin or eyes, rinse thoroughly with clean water and consult risk of burns a doctor immediately.
- Page 21 / fuel mixture. Prohibition and inability to adjust the injection system. Therefore, it is not possible and strictly forbidden to adjust the motorcycle’s injection system. If the EFI warning light on the meter comes on, you must go to an authorized Mash dealer in order to carry out a diagnosis.
- Page 22 Adjusting the transmission chain Tires To adjust: Check the tire pressure and their tread after the first 1000 km, then every 3000 1. Secure the motorcycle on its side stand or center stand (if equipped). km. In addition to periodic checks, get in the habit of checking tire pressure from 2.
- Page 23 Storage and cleaning 2. Remove the spark plug; press the starter to let the engine run for a few moments before reinstalling the spark plug. Prolonged non-use of the motorcycle during winter or another season requires 3. Replace the battery. Note: Do not forget to connect the positive pole before the specific operations requiring suitable materials, equipment and techniques.
- Page 24 Cleaning : Cleaners that are too acidic or aggressive are not recommended for washing the motorcycle. Particularly at the level of axles, bearings, levers, pivots, wheels and spokes. If, however, it is necessary to use it for stubborn stains, follow the instructions and application times for the product.
- Page 25 Copyright in this manual and its ultimate interpretation is ours. Under no circumstances may this document or any part of it be reproduced or cited without our prior written permission. All information, descriptions, illustrations and specifications contained herein reflect the state of our knowledge at the time of publication. However, we reserve the right to modify this manual at any time in the event of improvements or other changes.
- Page 27 Trouvez votre revendeur JOIN US ON SOCIAL NETWORKS: @MASH_MOTORCYCLES @MASHMOTORCYCLES @MASH MOTORS FRANCE Mash préconise Mash préconise...
