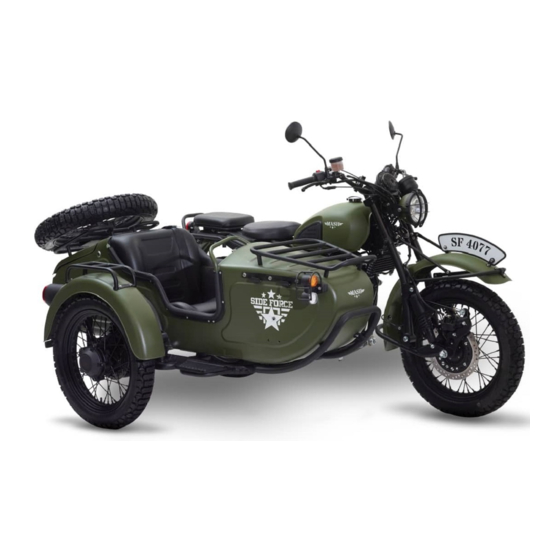

Mash SIDE FORCE 445cc User Manual

Hide thumbs

Advertisement

Quick Links

445
445
cc cc
USER MANUAL
SIDE FORCE
SIDE FORCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIDE FORCE 445cc and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mash SIDE FORCE 445cc

Summary of Contents for Mash SIDE FORCE 445cc

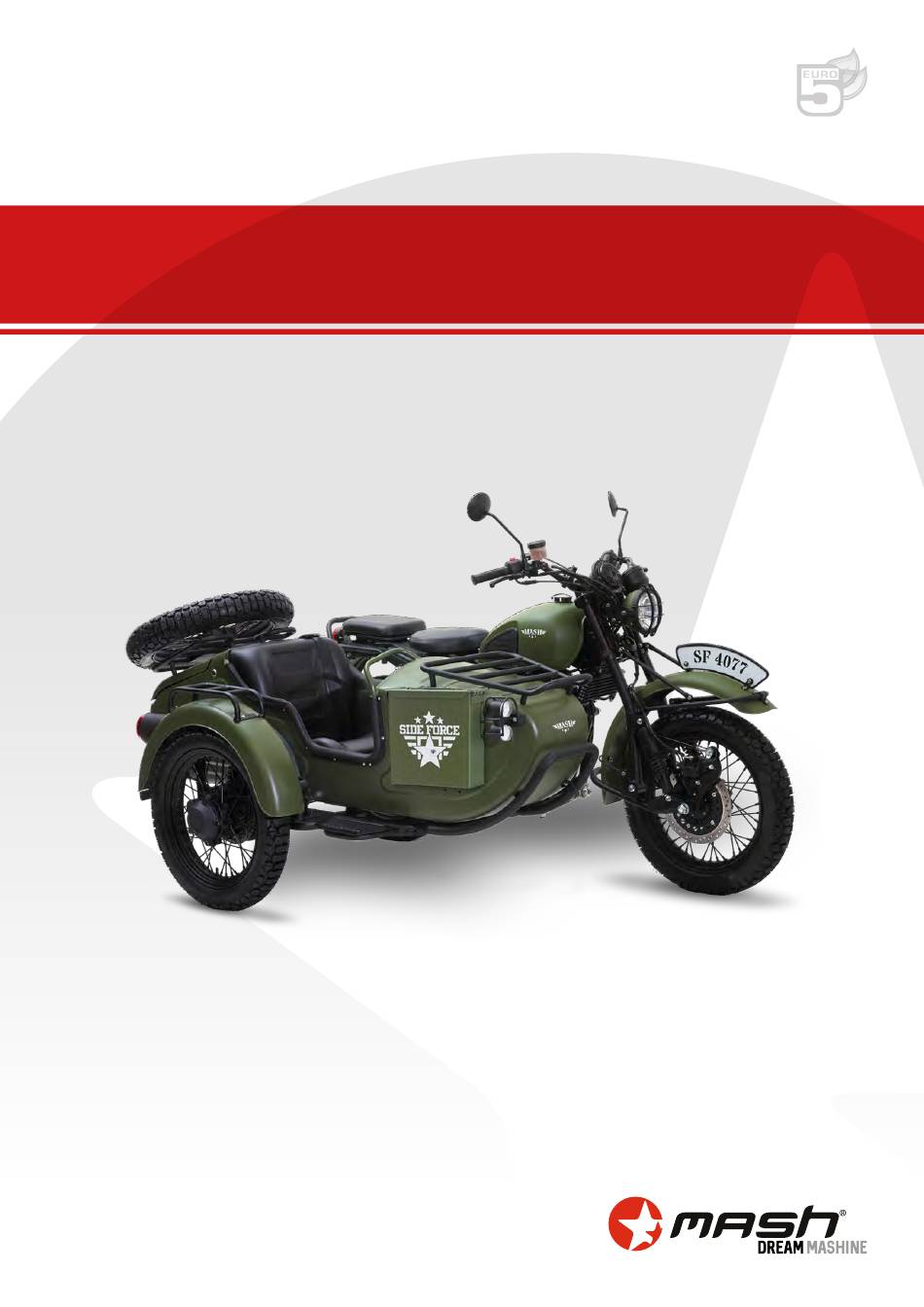

  • Page 1 cc cc USER MANUAL SIDE FORCE SIDE FORCE...
  • Page 2 Congratulations ! You are the happy new owner of a MASH which embodies a new spirit, a new trend : a motorcycle with a look and a philosophy «Vintage», synonymous of freedom. Please read this manual thoroughly before using your MASH.
  • Page 3 Important Cautions Information on running in your sidecar The first 1000 km operation is very important in the entire service life of a motorcycle. A correct running-in can guarantee both the longest service life and the best performance of the vehicle. Running-in can polish machined surfaces and form smooth engagement.

  • Page 4: Table Of Contents

    Observing the following recommendations will ensure the reliability of your sidecar and prolong its life. The staff of MASH authorized dealers (list available by consulting the website www.mash-motors.fr) have the skills and technical qualifications required to carry out maintenance and provide quality service.

  • Page 5: I Main Technical Data

    I - Main Technical Data Mash Side Force 445cc Euro 5 4T dry sump, single overhead camshaft, 4 Engine Type valves, air cooled Engine Capacity 445cc Compression Ratio 9.5:1 Idle speed 1600±60RPM Power max 28.5 hp at 6000 rpm (21kW) Torque max.

  • Page 6: User Instruction

    II - User Instruction Preparation before use • Read the user manual carefully This user’s manual describes the standard and safety method as well as basic • Maintain and check the vehicle before using it maintenance. Read it carefully. • It is necessary to have the driving license corresponding to your vehicle and that The images and illustrations in this manual may differ from those of your vehicle, if it is insured...

  • Page 7: Installation Position Of Parts

    III - Installation position of parts Panier side Handle bar instrument Ignition switch Rearview mirror Speedometer Spare Front wheel brake Clutch grip grip Right Left handlebar Accelerator handlebar switch switch Motorcycle side Panier wheel Panier Rear footrest Passenger seat with belt Wheel Selector back...

  • Page 8: Ignition Switch

    Comes on when there is an engine malfunction. If this warning light comes on on the The engine and the sidecar must be stopped before removing the key. speedometer, it is necessary to go to an authorized Mash dealer in order to carry out a diagnosis.

  • Page 9: Control System

    V - Control system Right handlebar control system Left handlebar control system Electric starter button Press this button to start the engine. Dimmer switch Caution Press the button, using the switch allows Make sure that the vehicle is always in you to choose the distance of the headlights : neutral position (N or 0) and always operate high or low.

  • Page 10: Essentials Of Driving

    VI - Essentials of driving To start the engine Make sure that the key switch and the emergency stop switch are in the « », Tank cap position, that the gearbox is in neutral (neutral) and always operate the clutch lever. To open the tank cap, insert the key and turn it To start, press the electric starter button.
  • Page 11 • Always start the vehicle first and start as gently and carefully as possible. there are traffic, there is a risk of burns. • If you hear any abnormal noise while driving, contact a MASH dealer to have it checked.
  • Page 12 Mirrors Panier Before driving, always adjust your mirrors. The passenger in the panier must remain in a seated position and wear his Warning Do not put anything in the rear seat so as not to obstruct visibility in the seat belt. mirrors.

  • Page 13: Controls And Setting

    VII - Controls and setting Lubricant By using a high quality lubricant suitable for a four-stroke engine, you will prolong Running-in the life of your engine. Please select IPONE SAE10W40 high quality lubricant type. The importance of a good running-in of the new vehicle has been underlined in Engine oil the Foreword and presupposes compliance with the rules set out below.
  • Page 14 Pre-ride inspection Before road, remember to check the following points. Never underestimate the importance of inspection. Element Control to be carried out Handlebar Ensure that direction is: - soft - free - no hard point in rotation Lighting Operate all lights (front light, rear light, front and rear brake light, instrument cluster lighting, turn signals) Engine oil Check the oil level...
  • Page 15 First laps with the sidecar Warning Never overstress the engine for an extended period of time. Caution Start the engine with the transmission in neutral, the clutch engaged and the Braking rider in the normal driving position. Inexperienced riders are usually content to use only the rear brake, which causes Shift gear premature brake wear and extends stopping distance.

  • Page 16: Inspection And Maintenance

    * Braking, front / rear brake pads, linings Please note that the service interval is 3000 km. Do not forget to certify them in the maintenance sheets of the warranty book provided by your MASH dealer. * Brake fluid To be replaced every 2 years...
  • Page 17 LUBRICATION CHART Spark plug After driving the first 1000 km, then every 3000 km, clean the carbon deposits from Interval Every 3,000 km or 12 Every 6,000 km or 24 the spark plug using a small wire brush or spark plug cleaner. Using a feeler gauge, Element months months...
  • Page 18 Remove the oil filter cover. Remove the used oil filter. Clean dirty oil before replacing new filter. Idle speed Warning The engine of your Mash is fitted with a petrol injection system. It is therefore not possible to adjust the idle speed of this engine. Back to summary...
  • Page 19 Front brake Brake fluid The sidecar is equipped with a disc brake at the front, the play of the brake lever Warning must be between 5 and 10 mm (measured at the level of the pressure cooker). Brake fluid is poisonous. In case of accidental ingestion, spit it out vigorously. The hydraulic brake system should be checked daily, proceeding as follows: In case of contact with skin or eyes, rinse thoroughly with clean water and 1.
  • Page 20 Degrease the rear brake disc at regular intervals to guarantee optimal braking quality at all times. In the event of a brake fluid leak, contact your MASH dealer. In the event of a braking problem, contact your MASH dealer. Brake fluid type: DOT4 Caution •...
  • Page 21 / fuel mixture. Prohibition and inability to adjust the injection system. Therefore, it is not possible and strictly forbidden to adjust the motorcycle’s injection system. If the EFI warning light on the meter comes on, you must go to an authorized Mash dealer in order to carry out a diagnosis.
  • Page 22 Adjusting the transmission chain Tires To adjust: Check the tire pressure and their tread after the first 1000 km, then every 3000 1. Secure the motorcycle on its side stand or center stand (if equipped). km. In addition to periodic checks, get in the habit of checking tire pressure from 2.
  • Page 23 Storage and cleaning Reuse after storage: the procedure to follow 1. Thoroughly clean the sidecar Prolonged non-use of the sidecar during winter or another season requires 2. Remove the spark plug; press the starter to let the engine run for a few specific operations requiring suitable materials, equipment and techniques.
  • Page 24 Cleaning : Caution Cleaners that are too acidic or aggressive are not recommended for washing the Special precautions: Never use lubricating or greasy products on the braking sidecar. In particular at the level of the axes, bearings, levers, pivots, wheels and elements.
  • Page 26 Copyright in this manual and its ultimate interpretation is ours. Under no circumstances may this document or any part of it be reproduced or cited without our prior written permission. All information, descriptions, illustrations and specifications contained herein reflect the state of our knowledge at the time of publication. However, we reserve the right to modify this manual at any time in the event of improvements or other changes.
  • Page 27 Trouvez votre revendeur JOIN US ON SOCIAL NETWORKS: @MASH_MOTORCYCLES @MASHMOTORCYCLES @MASH MOTORS FRANCE Mash préconise Mash préconise...
