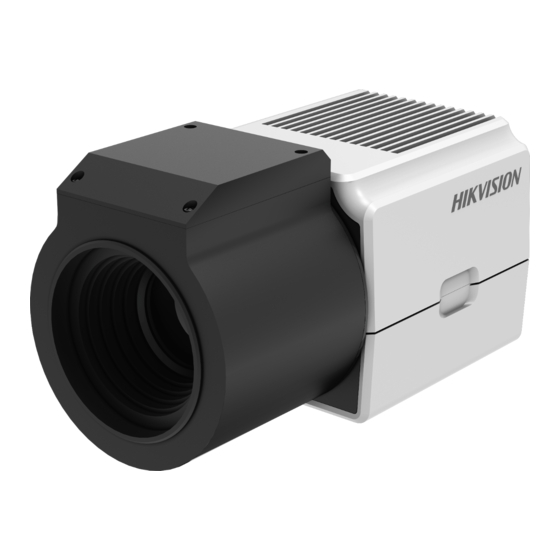

Thermal & optical bi-spectrum network camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Thermal & Optical Bi-spectrum Network
Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-2TB2617-6/QA and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-2TB2617-6/QA

Summary of Contents for HIKVISION DS-2TB2617-6/QA

  • Page 1 Thermal & Optical Bi-spectrum Network Camera User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Thermal & Optical Bi-spectrum Network Camera User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
  • Page 4 Thermal & Optical Bi-spectrum Network Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 5 Thermal & Optical Bi-spectrum Network Camera User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
  • Page 6 Thermal & Optical Bi-spectrum Network Camera User Manual example, in the case of some lithium battery types). ● DO NOT dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery, which may result in an explosion. ●...
  • Page 7 Thermal & Optical Bi-spectrum Network Camera User Manual liquids, such as vases, shall be placed on the equipment. ● No naked flame sources, such as lighted candles, should be placed on the equipment. ● Provide a surge suppressor at the inlet opening of the equipment under special conditions such as the mountain top, iron tower, and forest.

  • Page 8: Table Of Contents

    Thermal & Optical Bi-spectrum Network Camera User Manual Contents Chapter 1 Overview........................1 1.1 Brief Description ........................1 1.2 Function ..........................1 Chapter 2 Device Activation and Accessing ................. 2 2.1 Activate the Device via SADP ....................2 2.2 Activate the Device via Browser ................... 2 2.3 Login ............................
  • Page 9 Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 5 Arming Schedule and Alarm Linkage ................. 24 5.1 Set Arming Schedule ......................24 5.2 Linkage Method Settings..................... 24 5.2.1 Trigger Alarm Output ....................24 5.2.2 FTP/NAS/Memory Card Uploading ................. 26 5.2.3 Send Email ........................
  • Page 10 Thermal & Optical Bi-spectrum Network Camera User Manual 7.1.8 Smoothing......................... 36 7.1.9 Display VCA Info ....................... 36 7.1.10 Audio Settings ......................37 7.1.11 Two-way Audio ....................... 37 7.1.12 Set ROI ........................38 7.2 Display Settings ........................38 7.2.1 Image Adjustment ....................39 7.2.2 Image Adjustment (Thermal Channel) ..............
  • Page 11 Thermal & Optical Bi-spectrum Network Camera User Manual 8.1.1 Set Memory Card...................... 47 8.1.2 Set NAS ........................47 8.1.3 Set FTP ........................48 8.1.4 Set Cloud Storage ..................... 48 8.2 Video Recording ........................49 8.2.1 Record Automatically ....................49 8.2.2 Record Manually ...................... 51 8.2.3 Playback and Download Video ................
  • Page 12 Thermal & Optical Bi-spectrum Network Camera User Manual 9.12 Set Alarm Server ........................ 63 9.13 Set Network Service ......................64 Chapter 10 System and Security ....................65 10.1 View Device Information ....................65 10.2 Search and Manage Log ....................65 10.3 Import and Export Configuration File ................

  • Page 13: Chapter 1 Overview

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 1 Overview 1.1 Brief Description The Temperature Screening Thermal & Optical Bi-Spectrum Network Camera is a camera with function of high accuracy temperature measurement. With built-in high sensitivity sensor and passive infrared imaging, the camera is able to measure object's temperature at a high accuracy.

  • Page 14: Chapter 2 Device Activation And Accessing

    2.1 Activate the Device via SADP Search and activate the online devices via SADP software. Before You Start Access www.hikvision.com to get SADP software to install. Steps 1. Connect the device to network using the network cable. 2. Run SADP software to search the online devices.

  • Page 15: Login

    Thermal & Optical Bi-spectrum Network Camera User Manual Note The default IP address of the device is 192.168.1.64. You can set the IP address of the PC from 192.168.1.2 to 192.168.1.253 (except 192.168.1.64). For example, you can set the IP address of the PC to 192.168.1.100.

  • Page 16: Illegal Login Lock

    Thermal & Optical Bi-spectrum Network Camera User Manual Operating System Web Browser Operation plug-in installation is not required. Display and operation of certain functions are restricted. For example, Playback and Picture are not available. For detailed restricted function, refer to the actual device.

  • Page 17: Chapter 3 Smart Function

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 3 Smart Function 3.1 Enable VCA Function The different VCA function corresponds to different VCA resource type. Enable the VCA resource first to active corresponding VCA function. Steps 1. Go to Configuration → System → Maintenance → VCA Resource Type page. 2.

  • Page 18: Thermography Configuration Flow Chart

    Thermal & Optical Bi-spectrum Network Camera User Manual 3.2.2 Thermography Configuration Flow Chart This part introduces the process of configuring temperature measurement.
  • Page 19 Thermal & Optical Bi-spectrum Network Camera User Manual Figure 3-1 Thermography Configuration Flow Chart...

  • Page 20: Automatic Thermography

    Thermal & Optical Bi-spectrum Network Camera User Manual Note Please refer to the Quick Start Guide for detailed information of Installation part in the flow chart. 3.2.3 Automatic Thermography Configure the temperature measurement parameters and temperature measurement rules. The device can measure the actual temperature and output alarms when temperature exceeds the alarm threshold value.
  • Page 21 Thermal & Optical Bi-spectrum Network Camera User Manual Add Original Data on Capture Check to add data on alarm triggered capture of thermal channel. Add Original Data on Stream Check to add original data on thermal view. Data Refresh Interval It means the refresh interval of temperature information.
  • Page 22 Thermal & Optical Bi-spectrum Network Camera User Manual Set the emissivity of your target. The emissivity of each object is different. Distance The distance between the target and the device. Pre-Alarm Threshold When the temperature of target exceeds the pre-alarm threshold, and this status keeps more than Filtering Time, it triggers pre-alarm.
  • Page 23 Thermal & Optical Bi-spectrum Network Camera User Manual Note Go to Image → VCA Rules Display to adjust the fonts size and the temperature colour of normal, alarm and pre-alarm. 8. Optional: Call the preset and check if the rules are efficient. 9.
  • Page 24 Thermal & Optical Bi-spectrum Network Camera User Manual Set the tolerance temperature to prevent the constant temperature change to affect the alarm. E.g., set tolerance temperature as 3°C, set alarm temperature as 55°C, and set pre- alarm temperature as 50°C. The device sends pre-alarm when its temperature reaches 50°C and it alarms when its temperature reaches 55°C and only when the device temperature is lower than 52°C will the alarm be cancelled.

  • Page 25: Manual Thermography

    Thermal & Optical Bi-spectrum Network Camera User Manual 3.2.4 Manual Thermography After enable the manual thermography function of the device, you can click any position on the live view to show the real temperature. Steps 1. Go to Configuration → Local and select Display Temperature Info. as Yes. 2.

  • Page 26: Set Temperature Compensation

    Thermal & Optical Bi-spectrum Network Camera User Manual Point 1. Select Point. 2. Click Draw Area. 3. Click on the black body in the live image to show a blue dot. Frame 1. Select Frame. 2. Click Draw Area. 3. Click and drag the mouse on the live image to frame the black body with a blue rectangle.

  • Page 27: Set Thermography Parameters

    Thermal & Optical Bi-spectrum Network Camera User Manual temperature is higher than the setting value. 3.3.1 Set Thermography Parameters Configure the basic parameters of temperature screening. Before You Start Go to Configuration → System → Maintenance → VCA Resource Type, select Temperature Screening.

  • Page 28: Set Face Thermography

    Thermal & Optical Bi-spectrum Network Camera User Manual 3.3.2 Set Face Thermography This function is used for measuring the human temperature in optical channel or thermal channel. In optical channel, the device can detect human face and display the highest temperature. In thermal channel, the device can measure the body temperature.
  • Page 29 Thermal & Optical Bi-spectrum Network Camera User Manual 4. Check Upload Captured Face Image to capture and upload the face image of the target. If face detection function is also enabled, max. temperature of the face displays on the image. Note Refer to Face Capture to set the corresponding parameters.

  • Page 30: Face Capture

    Thermal & Optical Bi-spectrum Network Camera User Manual It refers to the low temperature alarm threshold. When the target temperature is lower than the set value, the device triggers an alarm. Pre-Alarm Temperature When the face temperature is higher than the set value, the device outputs pre-alarm and upload captured face image.
  • Page 31 Thermal & Optical Bi-spectrum Network Camera User Manual need to be uploaded to surveillance center, check Background Upload. Text Overlay You can check desired items (Device No., Camera Info. and Capture Time) and adjust their order to display on captured pictures by The content of Device No.
  • Page 32 Thermal & Optical Bi-spectrum Network Camera User Manual Capture Times It refers to the capture times a face will be captured during its stay in the configured area. Capture Threshold It stands for the quality of face to trigger capture and alarm. Higher value means better quality should be met to trigger capture and alarm.

  • Page 33: Chapter 4 Event And Alarm

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 4 Event and Alarm This part introduces the configuration of events. The device takes certain response to triggered alarm. 4.1 Set Alarm Input Alarm signal from the external device triggers the corresponding actions of the current device. Before You Start Make sure the external alarm device is connected.

  • Page 34: Set Flashing Alarm Light Output

    Thermal & Optical Bi-spectrum Network Camera User Manual 4.3 Set Flashing Alarm Light Output Steps 1. Go to Configuration → Event → Basic Event → Flashing Alarm Light Output. 2. Select a White Light Mode. Mode Description Flashing Alarm triggers the light to flash for a certain duration. Set the flashing speed in Flashing Frequency.

  • Page 35: Detect Audio Exception

    Thermal & Optical Bi-spectrum Network Camera User Manual Note The function is only supported by certain device models. 4.5 Detect Audio Exception Audio exception detection function detects the abnormal sound in the scene, such as the sudden increase/decrease of the sound intensity, and some certain actions can be taken as response. Steps 1.

  • Page 36: Chapter 5 Arming Schedule And Alarm Linkage

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 5 Arming Schedule and Alarm Linkage Arming schedule is a customized time period in which the device performs certain tasks. Alarm linkage is the response to the detected certain incident or target during the scheduled time. 5.1 Set Arming Schedule Set the valid time of the device tasks.
  • Page 37 Thermal & Optical Bi-spectrum Network Camera User Manual Automatic Alarm For the information about the configuration, see Automatic Alarm. Manual Alarm For the information about the configuration, see Manual Alarm. 3. Click Save. Manual Alarm You can trigger an alarm output manually. Steps 1.

  • Page 38: Ftp/Nas/Memory Card Uploading

    Thermal & Optical Bi-spectrum Network Camera User Manual 5.2.2 FTP/NAS/Memory Card Uploading If you have enabled and configured the FTP/NAS/memory card uploading, the device sends the alarm information to the FTP server, network attached storage and memory card when an alarm is triggered.

  • Page 39: Notify Surveillance Center

    Thermal & Optical Bi-spectrum Network Camera User Manual Note If you want to use STARTTLS, make sure that the protocol is supported by your email server. If you check the Enable STARTTLS while the protocol is not supported by your email sever, your email is sent with no encryption.

  • Page 40: Flashing Light

    Thermal & Optical Bi-spectrum Network Camera User Manual warning. Steps 1. Go to Configuration → Event → Basic Event → Audible Alarm Output. 2. Select an Alarm Type. 3. Select Sound Type and set related parameters. – Select Warning and its contents. Set the alarm times you need. –...
  • Page 41 Thermal & Optical Bi-spectrum Network Camera User Manual Note Only certain camera models support the function.

  • Page 42: Chapter 6 Live View

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 6 Live View It introduces the live view parameters, function icons and transmission parameters settings. 6.1 Live View Parameters The supported functions vary depending on the model. Note For multichannel devices, select the desired channel first before live view settings. 6.1.1 Window Division ●...

  • Page 43: View Previous/Next Page

    Thermal & Optical Bi-spectrum Network Camera User Manual 6.1.5 View Previous/Next Page When the number of channels surpasses that of live view window division, this function can switch live view among multiple channels. Click to switch live view among multiple channels. 6.1.6 Full Screen This function is used to view the image in full screen mode.
  • Page 44 Thermal & Optical Bi-spectrum Network Camera User Manual network environments, you can adjust the transmission parameters to solve the problem. Steps 1. Go to Configuration → Local. 2. Set the transmission parameters as required. Protocol TCP ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected.

  • Page 45: Chapter 7 Video And Audio

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 7 Video and Audio This part introduces the configuration of video and audio related parameters. 7.1 Video Settings This part introduces the settings of video parameters, such as, stream type, video encoding, and resolution.

  • Page 46: Resolution

    Thermal & Optical Bi-spectrum Network Camera User Manual 7.1.3 Resolution Select video resolution according to actual needs. Higher resolution requires higher bandwidth and storage. 7.1.4 Bitrate Type and Max. Bitrate Constant Bitrate It means that the stream is compressed and transmitted at a comparatively fixed bitrate. The compression speed is fast, but mosaic may occur on the image.
  • Page 47 Thermal & Optical Bi-spectrum Network Camera User Manual file than MJPEG or MPEG-4 Part 2. H.264+ H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, you can estimate the HDD consumption by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes.

  • Page 48: Smoothing

    Thermal & Optical Bi-spectrum Network Camera User Manual quality of the image is, and the requirement for network bandwidth is also higher. I-Frame Interval I-frame interval defines the number of frames between 2 I-frames. In H.264 and H.265, an I-frame, or intra frame, is a self-contained frame that can be independently decoded without any reference to other images.

  • Page 49: Audio Settings

    Thermal & Optical Bi-spectrum Network Camera User Manual 7.1.10 Audio Settings It is a function to set audio parameters such as audio encoding, environment noise filtering. Go to the audio settings page: Configuration → Video/Audio → Audio. Audio Encoding Select the audio encoding compression of the audio. Audio Input Note ●...

  • Page 50: Set Roi

    Thermal & Optical Bi-spectrum Network Camera User Manual 2. Click on the toolbar to enable two-way audio function of the camera. 3. Click , disable the two-way audio function. 7.1.12 Set ROI ROI (Region of Interest) encoding helps to assign more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.

  • Page 51: Image Adjustment

    Thermal & Optical Bi-spectrum Network Camera User Manual 7.2.1 Image Adjustment By adjusting the Brightness, Saturation, Hue, Contrast and Sharpness, the image can be best displayed. Figure 7-1 Saturation 7.2.2 Image Adjustment (Thermal Channel) You can optimize the image display effect of thermal channel by setting background correction and manual correction.

  • Page 52: Exposure Settings

    Thermal & Optical Bi-spectrum Network Camera User Manual 7.2.3 Exposure Settings Exposure is controlled by the combination of iris, shutter, and photo sensibility. You can adjust image effect by setting exposure parameters. In manual mode, you need to set Exposure Time, Gain and Slow Shutter. 7.2.4 Set Supplement Light Steps 1.

  • Page 53: White Balance

    Thermal & Optical Bi-spectrum Network Camera User Manual Figure 7-2 WDR 7.2.7 White Balance White balance is the white rendition function of the camera. It is used to adjust the color temperature according to the environment. Figure 7-3 White Balance 7.2.8 DNR Digital Noise Reduction is used to reduce the image noise and improve the image quality.

  • Page 54: Defog

    Thermal & Optical Bi-spectrum Network Camera User Manual 7.2.9 Defog You can enable the defog function when the environment is foggy and the image is misty. It enhances the subtle details so that the image appears clearer. Figure 7-4 Defog 7.2.10 Gray Scale This section introduces the gray scale function in optical channel.

  • Page 55: Dde

    Thermal & Optical Bi-spectrum Network Camera User Manual Between (be colored) When the target of an interval temperature needs to be colored, you can set the interval temperature color. Target between the minimum and the maximum temperatures will be displayed in setting color. Below (be colored) When the target of low temperature needs to be colored, you can set the low temperature color.

  • Page 56: Digital Zoom

    Thermal & Optical Bi-spectrum Network Camera User Manual Note The video recording will be shortly interrupted when the function is enabled. 7.2.17 Digital Zoom You can zoom in the image. The larger the zoom size is, the more blurred the image is. 7.2.18 Scene Mode There are several sets of image parameters predefined for different installation environments.

  • Page 57: Set Privacy Mask

    Thermal & Optical Bi-spectrum Network Camera User Manual 7.5 Set Privacy Mask The function blocks certain areas in the live view to protect privacy. No matter how the device moves, the blocked scene will never be seen. Steps 1. Go to privacy mask setting page: Configuration → Image → Privacy Mask. 2.
  • Page 58 Thermal & Optical Bi-spectrum Network Camera User Manual 2. Select the thermal channel. 3. Select manual mode. 4. Click the defective pixel on the image, then a cursor shows on the live view. 5. Click Up, Down, Left, Right to adjust the cursor position to the defective pixel position. 6.

  • Page 59: Chapter 8 Video Recording And Picture Capture

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 8 Video Recording and Picture Capture This part introduces the operations of capturing video clips and snapshots, playback, and downloading captured files. 8.1 Storage Settings This part introduces the configuration of several common storage paths. 8.1.1 Set Memory Card If you choose to store the files to memory card, make sure you insert and format the memory card in advance.

  • Page 60: Set Ftp

    Thermal & Optical Bi-spectrum Network Camera User Manual The saving path of network disk files. User Name and Password The user name and password of the net HDD. 3. Click Test to check whether the network disk is available. 4. Click Save. 8.1.3 Set FTP You can configure the FTP server to save images which are captured by events or a timed snapshot task.

  • Page 61: Video Recording

    Thermal & Optical Bi-spectrum Network Camera User Manual 2. Check Enable Cloud Storage. 3. Set basic parameters. Protocol Version The protocol version of the cloud video manager. Server IP The IP address of the cloud video manager. It supports IPv4 address. Serve Port The port of the cloud video manager.
  • Page 62 Thermal & Optical Bi-spectrum Network Camera User Manual Note The record type is vary according to different models. Continuous The video will be recorded continuously according to the schedule. Motion When motion detection is enabled and trigger recording is selected as linkage method, object movement is recorded.

  • Page 63: Record Manually

    Thermal & Optical Bi-spectrum Network Camera User Manual The recordings are deleted when they exceed the expired time. The expired time is configurable. Note that once the recordings are deleted, they can not be recovered. 7. Click Save. 8.2.2 Record Manually Steps 1.

  • Page 64: Capture Automatically

    Thermal & Optical Bi-spectrum Network Camera User Manual path. You can view and download the snapshots. 8.3.1 Capture Automatically This function can capture pictures automatically during configured time periods. Before You Start If event-triggered capture is required, you should configure related linkage methods in event settings.
  • Page 65 Thermal & Optical Bi-spectrum Network Camera User Manual 3. Set search condition and click Search. The matched pictures showed in the file list. 4. Select the pictures then click Download to download them. Note Go to Configuration → Local, click Save snapshots when playback to change the saving path of pictures.

  • Page 66: Chapter 9 Network Settings

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 9 Network Settings 9.1 TCP/IP TCP/IP settings must be properly configured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be configured simultaneously without conflicting to each other.

  • Page 67: Multicast Discovery

    Thermal & Optical Bi-spectrum Network Camera User Manual Manual Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network administrator for required information. It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transaction.

  • Page 68: Port Mapping

    Thermal & Optical Bi-spectrum Network Camera User Manual TCP-based full-duplex communication protocol port for plug-in free preview. Certificate verification is required to ensure the secure access. Note ● WebSocket Port and WebSockets Port are only supported by certain models. ● For device models that support that function, go to Configuration → Network → Advanced Settings →...

  • Page 69: Set Manual Port Mapping

    Thermal & Optical Bi-spectrum Network Camera User Manual 9.3.2 Set Manual Port Mapping Steps 1. Check Enable UPnP™, and choose a friendly name for the device, or you can use the default name. 2. Select the port mapping mode to Manual, and set the external port to be the same as the internal port.

  • Page 70: Multicast

    Thermal & Optical Bi-spectrum Network Camera User Manual Figure 9-1 Port Mapping on Router Note The port of the network camera cannot conflict with other ports. For example, some web management port of the router is 80. Change the camera port if it is the same as the management port.

  • Page 71: Snmp

    Thermal & Optical Bi-spectrum Network Camera User Manual 9.5 SNMP You can set the SNMP network management protocol to get the alarm event and exception messages in network transmission. Before You Start Before setting the SNMP, you should download the SNMP software and manage to receive the device information via SNMP port.

  • Page 72: Access To Device Via Pppoe Dial Up Connection

    Thermal & Optical Bi-spectrum Network Camera User Manual By Browsers Enter the domain name in the browser address bar to access the device. By Client Software Add domain name to the client software. Refer to the client manual for specific adding methods. 9.7 Access to Device via PPPoE Dial Up Connection This device supports the PPPoE auto dial-up function.

  • Page 73: Enable Hik-Connect Service On Camera

    Thermal & Optical Bi-spectrum Network Camera User Manual 9.8 Enable Hik-Connect Service on Camera Hik-Connect service should be enabled on your camera before using the service. You can enable the service through SADP software or Web browser. 9.8.1 Enable Hik-Connect Service via Web Browser Follow the following steps to enable Hik-Connect Service via Web Browser.

  • Page 74: Access Camera Via Hik-Connect

    1. Get and install Hik-Connect application by the following ways. Visit https://appstore.hikvision.com to download the application according to your mobile phone system.Visit the official site of our company. Then go to Support → Hikvision App Store.Scan the QR code below to download the application.

  • Page 75: Set Open Network Video Interface

    Thermal & Optical Bi-spectrum Network Camera User Manual 3. Select Enable. 4. Select a protocol version and input related parameters. 5. Click Save. Register status turns to Online when the function is correctly set. 9.10 Set Open Network Video Interface If you need to access the device through Open Network Video Interface protocol, you can configure the user settings to enhance the network security.

  • Page 76: Set Network Service

    Thermal & Optical Bi-spectrum Network Camera User Manual Note HTTP, HTTPS, and ISUP are selectable. It is recommended to use HTTPS, as it encrypts the data transmission during communication. 4. Click Test to check if the IP or host is available. 5.

  • Page 77: Chapter 10 System And Security

    Thermal & Optical Bi-spectrum Network Camera User Manual Chapter 10 System and Security It introduces system maintenance, system settings and security management, and explains how to configure relevant parameters. 10.1 View Device Information You can view device information, such as Device No., Model, Serial No. and Firmware Version. Enter Configuration →...

  • Page 78: Export Diagnose Information

    Thermal & Optical Bi-spectrum Network Camera User Manual 10.4 Export Diagnose Information Diagnose information includes running log, system information, hardware information. Go to Configuration → System → Maintenance → Upgrade & Maintenance, and click Diagnose Information to export diagnose information of the device. 10.5 Reboot You can reboot the device via browser.

  • Page 79: View Open Source Software License

    Thermal & Optical Bi-spectrum Network Camera User Manual 2. Choose one method to upgrade. Firmware Locate the exact path of the upgrade file. Firmware Directory Locate the directory which the upgrade file belongs to. 3. Click Browse to select the upgrade file. 4.

  • Page 80: Set Dst

    Thermal & Optical Bi-spectrum Network Camera User Manual Note Server Address is NTP server IP address. 5. Click Test to test server connection. 6. Click Save. 10.9.3 Set DST If the region where the device is located adopts Daylight Saving Time (DST), you can set this function.

  • Page 81: Set Rs-485

    Thermal & Optical Bi-spectrum Network Camera User Manual 10.12 Set RS-485 RS-485 is used to connect the device to external device. You can use RS-485 to transmit the data between the device and the computer or terminal when the communication distance is too long. Before You Start Connect the device and computer or terminal with RS-485 cable.

  • Page 82: Security Audit Log

    Thermal & Optical Bi-spectrum Network Camera User Manual 10.13.2 Security Audit Log The security audit logs refer to the security operation logs. You can search and analyze the security log files of the device so as to find out the illegal intrusion and troubleshoot the security events. Security audit logs can be saved on device internal storage.

  • Page 83: Set Https

    Thermal & Optical Bi-spectrum Network Camera User Manual Steps 1. Go to Configuration → System → Security → IP Address Filter. 2. Check Enable IP Address Filter. 3. Select the type of IP address filter. Forbidden IP addresses in the list cannot access the device. Allowed Only IP addresses in the list can access the device.

  • Page 84: Set Qos

    Thermal & Optical Bi-spectrum Network Camera User Manual Result The device will install the self-signed certificate by default. Install Authorized Certificate If the demand for external access security is high, you can create and install authorized certificate via HTTPS protocol to ensure the data transmission security. Steps 1.

  • Page 85: User And Account

    Thermal & Optical Bi-spectrum Network Camera User Manual needed. Go to Configuration → Network → Advanced Settings → 802.1X, and enable the function. Set Protocol and EAPOL Version according to router information. Protocol EAP-TLS and EAP-MD5 are selectable EAP-MD5 If you use EAP-MD5, the authentication server must be configured. Register a user name and password for 802.1X in the server in advance.
  • Page 86 Thermal & Optical Bi-spectrum Network Camera User Manual their own passwords, but no permission for other operations. Operator Operators can be assigned all permission except for operations on the administrator and creating accounts. Modify Select a user and click Modify to change the password and permission.

  • Page 87: Chapter 11 Appendix

    0.98 Hard Paperboard 0.90 White Paper 0.90 Water 0.96 11.2 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for Hikvision thermal cameras.

  • Page 88: Device Communication Matrix

    Thermal & Optical Bi-spectrum Network Camera User Manual 11.3 Device Communication Matrix Scan the following QR code to get device communication matrix. Note that the matrix contains all communication ports of Hikvision thermal cameras.
  • Page 89 UD28093B...

This manual is also suitable for:

Ds-2tb2617-3/qaDs-2tb1217-3/qaDs-2tb1217-6/qaDs-2ta03-15sviDs-2ta06-25sviUd28093b
