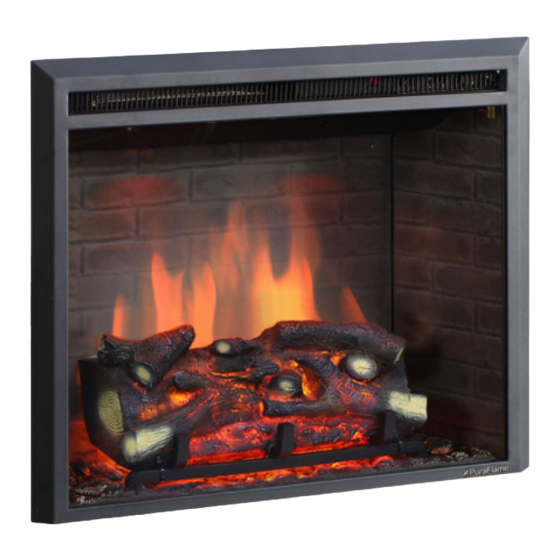

Electric fireplace insert

Advertisement

PuraFlame
Western
Electric Fireplace Insert
Model Number: (EF42D, EF43D, EF44D, EF45D, EF302A)
OWNER'S MANUAL
Read and understand this en re owner's manual, including
all safety informa on, before plugging in or using this
WARNING
product. Failure to do so could result in fire, electric shock,
or serious personal injury.
Keep this owner's manual for future reference. If you sell or
CAUTION
give this product away, make sure this manual accompanies
this product.
DO NOT RETURN!
Contact our customer service team for help first.
customerservice@puraflame.com
Call: 844-377-5786

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EF42D and is the answer not in the manual?

Questions and answers

Jennie
April 4, 2025

hello, is the PuraFlame EF44D CSA approved for Canada?

Summary of Contents for PuraFlame EF42D

  • Page 1 PuraFlame Western Electric Fireplace Insert Model Number: (EF42D, EF43D, EF44D, EF45D, EF302A) OWNER'S MANUAL Read and understand this en re owner's manual, including all safety informa on, before plugging in or using this WARNING product. Failure to do so could result in fire, electric shock, or serious personal injury.
  • Page 2: Table Of Contents

    Important Safety Information .............1 Technical Specifications ..............4 Electric Specifications ..............4 Product Specifications ..............4 Before Installation ................5 Check ..................5 Spare Parts Checking ..............5 Kindly Suggestion ...............5 Installation Instruction ..............6 Locating the Appliance ...............6 Locate an Outlet .................6 Recessed into a wall ..............7 Insert into a cabinet or wood mantel ..........8 Operation Instruction.................9 5a.
  • Page 3: Important Safety Information

    1. IMPORTANT SAFETY INFORMATION WARNING Read all instruc ons before using this heater! Ÿ This heater is hot when in use. To avoid burns, DO NOT let bare skin Ÿ touch hot surfaces. If provided, use handles when moving this heater.
  • Page 4 (outlet/power strip). Connect to properly grounded outlets ONLY. Ÿ DO NOT place the heater near a bed because objects such as Ÿ pillows or blankets can fall off the bed and be ignited by the heater. NEVER use this heater in bathrooms, laundry rooms, or any other Ÿ...
  • Page 5 ALWAYS store this heater in a dry loca on. NEVER use the fireplace Ÿ if it has become wet. ONLY use this heater on a 120V AC 15-Amp circuit. NEVER overload Ÿ the circuit. If this heater trips the circuit breaker, unplug all other appliances on the same circuit before the next use.
  • Page 6: Technical Specifications

    BTU(max) Model Volt (min/max) Area(max) 400 square EF42-45D 750/1500 4600 12.5 feet EF302A 2) Product Dimensions Power Cord Removable Handle Units: inches Model EF42D 24.80 22.91 21.89 16.93 21.46 20.04 EF43D 27.95 25.96 25.20 20.02 24.61 23.19 EF44D 31.89 29.90 29.02...
  • Page 7: Before Installation

    3. BEFORE INSTALLATION 1) Check: WARNING! DO NOT use this Electric Fireplace if any part has been under water. Immediately call a qualified service technician to inspect and to replace any part of the electrical system if necessary. Keep plas c wrapping away from children. Spare Parts Checking Open the packaging carefully and remove the polystyrene.
  • Page 8: Installation Instruction

    4. INSTALLATION INSTRUCTIONS ALWAYS unplug this fireplace heater before assembly or cleaning, or before reloca ng. Failure to do so could result in electric shock, fire, or personal injury. KEEP drapery and other furnishings at least 3 /0.9m from the front and sides of the electric fireplace. AFTER installa on, ensure that there is ≥0.004㎡...
  • Page 9: Recessed Into A Wall

    It is available to install the unit into a wall. The opening depth 8.1” is suggested for be er ven la on. Build the opening according to the suggested specifica on shown below. Opening sizes ranges/inches Height Depth(min) Depth(suggest) Width EF42D 21.9-23.9 20.1-21.3 EF43D 25.2-27.2 23.2-24.4 EF44D 29.1-31.1 23.2-24.4...
  • Page 10: Insert Into A Cabinet Or Wood Mantel

    4) Insert into a cabinet or wood mantel. It is available to install the unit into a wood cabinet or mantel. Also, it would be be er to keep the depth at 8.1”. The clearance from the top of the unit to the bo om of TV or something else si ng on the cabinet should be 8”...
  • Page 11: Operation Instruction

    5a. Manual Control Panel ON/OFF Flame(3 settings) Heater(750/1500w) Thermostat Note: When the heater is first turned on, a slight odor may be present. This is normal and should not occur again unless the heater is not used for a long period of me. BUTTON NAME FUNCTION...
  • Page 12 The flame will be cycled from Flame A – Flame B – Flame C – Flame Off. FLAME Flame A: full bright flame + li le blue Flame B: full bright flame Flame C: half bright flame The heater will be cycled from Low – High – Heater Off.
  • Page 13: 5B. Remote Control

    5b. Remote Control Note: Remote control can be used only when the main power switch is on. Aim the remote control at the remote receiver (see picture on page 9) which is on the le of the main power switch POWER CRACKLING HIGH...
  • Page 14: Temperature Limiting Control

    The flame will be cycled from Flame A – Flame B FLAME – Flame C – Flame Off. To turn on the heater on half heat se ng or LOW HEAT turn off the heater. To turn on the heater on full heat se ng or turn HIGH HEAT off...
  • Page 15: Care And Maintenance

    6. CARE AND MAINTENANCE ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. Cleaning NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.
  • Page 16: Limited Warranty

    Maintenance Risk of electric shock! DO NOT OPEN! No user- serviceable parts inside! ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury.
  • Page 17: Troubleshooting Guide

    transport from the point of purchase to the consumer's home. This warranty does not cover glass, light bulbs, ba eries, transporta on, labor, or other issues not associated with the manufacture of the product. This product is for residen al use only. Any and all commercial use of this product voids all warran es, and frees the manufacturer from all liability.
  • Page 18 2) If the power cord is fine, check the wires behind the rocker switch to see if they are burned. 3) If the wires are well, too, the PCB board might be broken and need to be replaced. Please contact service team for a replacement and instruc on.
  • Page 19: Schematic Diagram

    for help. 6. The flame does not show up or flicker or a noise when turn it on. Please contact service team for a checking instruc on of the flame LED board connecter, flame motor and spindle. 7. There is a black e inside the unit or there is a small spot on the glass.
  • Page 20 Ningbo Richen Electrical Appliance Co., Ltd Address: No.19, Yongdinghe Road, Xiapu, Beilun, Ningbo PR. China www.puraflame.com 3.EF.43.05.456 A4...
