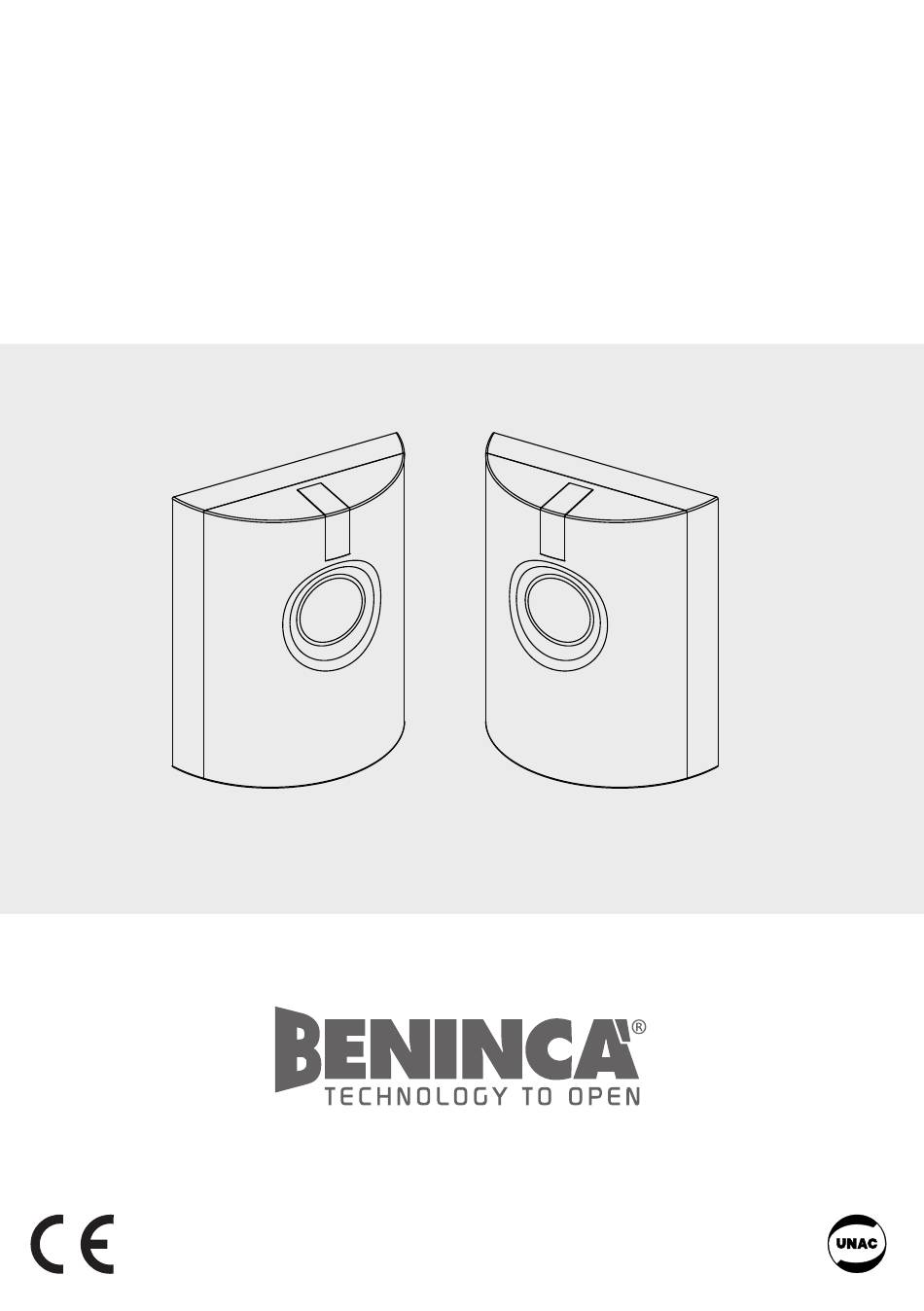

- Page 1 L854200221 06/2020 rev 0 FTC.S UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 (+) (-) (+) (-) 24Vac/24Vdc 24Vac/24Vdc...
- Page 3 24 Vac 24 Vac...
- Page 4 24 Vac...

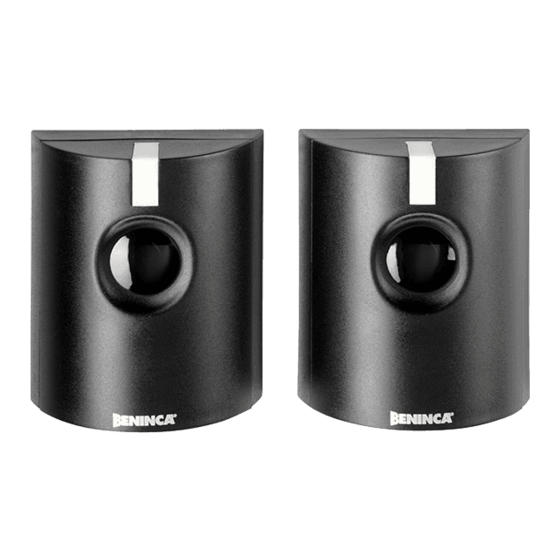

- Page 5 Pair of photocells for wall or column COL 05N/10N/12N colonnina COL 05N/10N/12N con alimentazione 24 installation with 24 Vac/dc power supply. Vac/dc. FTC.S allows synchronisation of up to 4 pairs. FTC.S consente di sincronizzare fino a 4 coppie. INSTALLATION (Fig.1) INSTALLAZIONE (Fig.1) Remove the screw cap T and remove the screw V.
- Page 6 Paire de photocellules pour installation murale ou COL 05N/10N/12N mit 24 Vac/DC-Stromversor- colonne COL 05N/10N/12N avec alimentation 24 gung. Vac/dc. FTC.S ermöglicht die Synchronisation bis zu 4 Paa- FTC.S permet de synchroniser jusqu’à 4 paires. ren. INSTALLATION (Fig.1) INSTALLATION (Fig.1) Retirez le bouchon à...
- Page 7 Para de fotocélulas para instalación en pared o co- lumnie COL 05N/10N/12N z zasilaniem 24 Vac/dc. lumna COL 05N/10N/12N con alimentación 24 Vca/ FTC.S j umożliwia synchronizację do 4 par. INSTALOWANIE (Rys.1) FTC.S permite sincronizar hasta 4 parejas. Zdjąć nasadkę śruby T i odkręcić śrubę V.
- Page 8 DATI TECNICI / TECHNICAL DATA FTC.S Alimentazione / Power supply 22÷30 Vac - 20÷28Vdc 50/60 Hz Portata / Capacity 20-25 m Temperatura funzionamento / Working temperature -20°C / +70°C Assorbimento* TX: 40 mA (Vac) - 75 mA (Vdc) Absorption* RX: 20 mA (Vac) - 40 mA (Vdc)
