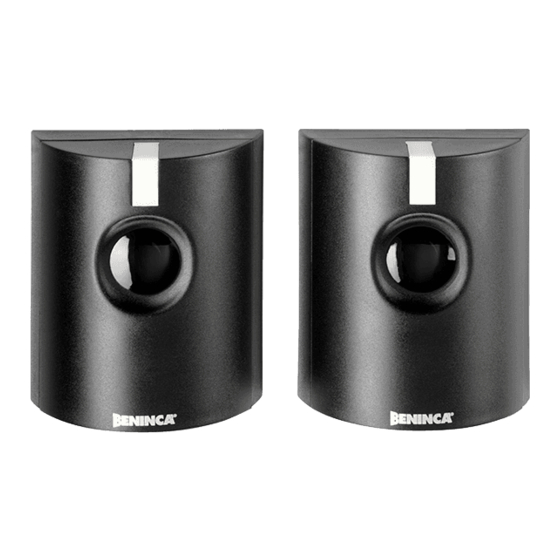

FTC.S - FTM.S
L8542304
Rev. 10/06/02
TX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
RX M1: 24Vac (+24Vdc)
M2: 24V ac (-24Vdc)
M3: Comune, COM.
M4: Contatto normalmente aperto, N.O.
M5: Contatto normalmente chiuso, N.C.*
*Con fotocellule alimentate e allineate.
TX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
RX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
M3: Common, COM.
M4: Normally open contact, N.O.
M5: Normally closed contact, N.C
*With powered and aligned photocells.
JP2 Open
SYNC OFF
SYNC
24Vac/dc
M1
M2
TX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
RX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
M3: Gemeinsam, COM.
M4: Arbeitskontakt, N.O.
M5: Ruhekontakt, N.C.
*Bei gespeisten und angereihten
Fotozellen
TX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
RX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
M3: Commun, COM
M4: Contact normalement ouvert, N.O.
M5: .Contact normalement fermé, N.C.
*Avec photocellules alimentées
et alignées.
Viti di regolazione
Adjustment screws
Stellschrauben
Vis de réglage
Tornillos de ajuste
Śruby regulacyjne
TX
SYNC
(+) (-)
24Vac/24Vdc
Fig.1
RX
JP2 Open
SYNC OFF
24Vac/dc
COM
N.O.
N.C.
M1
M2
M3
M4
M5
TX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
RX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
M3: Común, COM.
M4: Contacto normalmente abierto, N.O.
M5: Contacto normalmente cerrado, N.C.
*Con fotocélulas alimentadas y alineadas.
TX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
RX M1: 24Vac (+24Vdc)
M2: 24Vac (-24Vdc)
M3: Wspólne, COM.
M4: Styk normalnie otwarty (rozwarty), N.O.
M5: Styk normalnie zamknięty (zwarty), N.Z.
*Przy fotokomórkach zasilanych
i uliniowanych.
Advertisement
Related Manuals for Beninca FTC.S
Summary of Contents for Beninca FTC.S
- Page 1 FTC.S - FTM.S L8542304 Rev. 10/06/02 Viti di regolazione Adjustment screws Stellschrauben Vis de réglage Tornillos de ajuste Fig.1 Śruby regulacyjne JP2 Open JP2 Open SYNC OFF SYNC OFF SYNC SYNC 24Vac/dc 24Vac/dc N.O. N.C. (+) (-) 24Vac/24Vdc TX M1: 24Vac (+24Vdc)
- Page 2 Regolazione del centraggio Réglage du centrage La regolazione del centraggio della fotocellula si Le réglage du centrage de la photocellule a lieu en agissant sur les trois vis mises en évidence dans effettua agendo sulle tre viti evidenziate in figura 1. Lampeggio del LED lento: ricezione debole la figure 1.
- Page 4 Hiermit erklaren wir, dass unser Produkt Nous déclarons par la présente que notre produit Por la presente declaramos que nuestro producto Niniejszym oświadczamy że nasz produkt FTC.S - FTM.S è conforme alle seguenti disposizioni pertinenti: complies with the following relevant provisions: folgenden einschlagigen Bestimmungen entspricht:...
