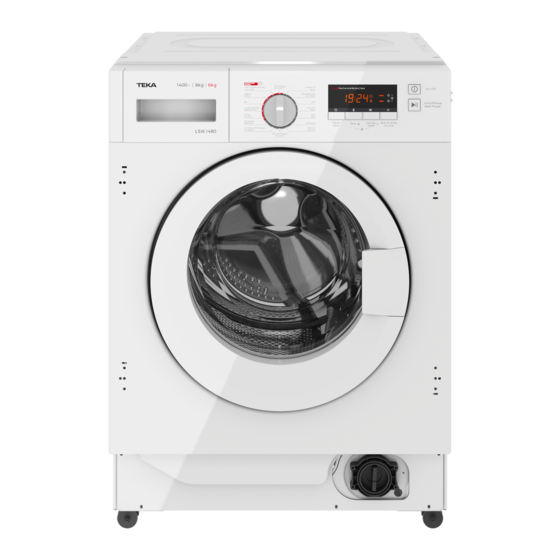

Teka LSI6 1480 User Manual
  1. Manuals
  2. Brands
  3. Teka Manuals
  4. Washer
  5. LSI6 1480
  6. User manual

Teka LSI6 1480 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LSI6 1480

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSI6 1480 and is the answer not in the manual?

Questions and answers

Related Manuals for Teka LSI6 1480

Summary of Contents for Teka LSI6 1480

  • Page 1 LSI6 1480...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation ............OPERATION Quick Start ............. Before Each Washing ..........Detergent Dispenser ..........Control Panel ............Programmes............Option..............MAINTENANCE Cleaning and Care ..........Trouble Shooting ............ Technical Specifications ......... Product Fiche ............Built-in installation ..........

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Safety Instructions Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty. ！...
  • Page 4 SAFETY INSTRUCTIONS •The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 5: Installation

    SAFETY INSTRUCTIONS •Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.
  • Page 6 SAFETY INSTRUCTIONS •Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations. ！ Warning! •Don´t use multiple plugs or extension cords. •The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
  • Page 7 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE ！ Warning! •Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate. •The washer dryer is not to be used if industrial chemicals have been used for cleaning.
  • Page 8 SAFETY INSTRUCTIONS •Always unplug the appliance and close the water tap before cleaning and maintenance and after each use. •Never pour water over the appliance for cleaning purpose. Risk of electric shock! •Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 9 SAFETY INSTRUCTIONS Packaging/Old appliance This marking indicates that this product should not be disposed with other household wastes throughout the EU.To prevent possible harm to the environment or human health from uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material resources.To return your used device, please use the collection systems or contact the retailer where the product was purchased.

  • Page 10: Product Description

    INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service flap Drain hose Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover caps 1 x Owner’s manual 1 x Supply hose cold water...
  • Page 11 INSTALLATION Installation Installation area ！ Warning! • Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable. • Make sure that the product does not stand onto the power cord. W> 20mm •...
  • Page 12 INSTALLATION Remove transport bolts ！ Warning! • You must remove the transport bolts from the backside before using the product. Loosen the 4 transport Remove the bolts Close the holes using the bolts with a spanner. including the rubber parts cover caps.
  • Page 13 INSTALLATION Drain Hose ！ ！ Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough. 2.Connect it to the branch drain pipe of the trough.

  • Page 14: Operation

    OPERATION Quick Start Caution! • Before washing, please make sure the washer dryer is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use.
  • Page 15 OPERATION 1. Before Washing earth terminal Main wash Softener Prewash Close door Plug in Open tap Load Add detergent Note! • Detergent need to be added in compartment I if the pre-wash function is selected. 2. Washing Select programme Select function or Power On Press remain default...

  • Page 16: Before Each Washing

    OPERATION Before Each Washing • The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.

  • Page 17: Detergent Dispenser

    OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "compartment I “after selecting pre-wash function. Programme Programme Cotton Dry Only 1 Hour W/D Spin Only Jeans Quick Sport Wear...
  • Page 18 OPERATION Detergent Recommendation Recommended washing Washing Wash cycles Type of laundry and textile detergent temp. Heavy-duty detergent with White laundry made from bleaching agents and 40 60 Cotton, ECO 40-60, Intensive boil-proof cotton or linen optical brighteners Coloured laundry made Colour detergent without Intensive, Cotton,ECO 40-60, 20/30/...

  • Page 19: Control Panel

    OPERATION Control Panel On/Off Start/Pause Turn the appliance on and off. Start or pause your programme. Programmes Option Available according to the laundry type. This allows you to select additional functions and will light when selected. Display The display shows settings, estimated remaining time, options and status messages. Wash Time Delay Time Speed Error End Door Lock Dry level(...

  • Page 20: Programmes

    OPERATION Programmes Model:LSI6 1480 Washing/Drying Load Programme Display Time (H) (kg) 1400 Quick 0:15 Sport Wear 1:11 20℃ 1:01 Jeans 1:45 Wool 1:07 ECO 40-60 3:35 Intensive 3:48 Spin only 0:12 Rinse&Spin 0:20 Baby care 1:43 Dry Only 4:14 /6.0 Wash and Dry 8.0/6.0...
  • Page 21 OPERATION Programmes LSI6 1480 • The above data is for reference only, and the data may change due to different actual use conditions. • The valves given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only.
  • Page 22 OPERATION The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. 2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle.
  • Page 23 OPERATION Programmes Programmes are available according to thelaundry type. Programmes Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Baby Care Washing the baby’s clothes, it can make the baby's wear cleaner. and make the rinse performance better to protect the baby skin. Jeans Specially for jeans.
  • Page 24 OPERATION Option Default Default spin speed in rpm Temp.(℃) 1400 Cold Quick Delay Delay Sport Wear 1000 Delay 20℃ Delay 1000 Jeans Delay Wool 1400 Delay ECO 40-60 Delay Intensive Delay 1000 Spin only 1000 Delay Rinse&Spin Delay Baby care 1400 Delay Dry Only...
  • Page 25 OPERATION Delay Set the Delay function: 1. Select a programme 2.Press the Delay button to choose the time(the delaying time is 0-24 H.) Start/Pause 3.Press [ ] to commence the delay operation Delay Setting time Start On/Off Choose the Programme Cancel the Delay function: Press the [Delay] button until the display be 0H.It should be pressed before starting the programme.
  • Page 26 OPERATION Spin Speed Speed When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400：0-400-600-800-1000-1200-1400 Caution! • When the lights of speed are off means the spin speed is 0. Temp. ℃, Press the button to regulate the temperature(Cold,20 30℃, 40℃,60℃,90℃) Mute the buzzer Temp.
  • Page 27 OPERATION Dry Level Press the Dry Level button continuously to choose the dry level: Extra Dry/Normal Dry/ Gentle Dry. Extra Dry:Need to wear clothes immediately ,we can choose this function Normal Dry:The normal dry procedure Gentle Dry:Only to dry slightly and then is just ok . Note! •...

  • Page 28: Maintenance

    MAINTENANCE Cleaning and Care ！ Warning! • Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary.
  • Page 29 MAINTENANCE Cleaning the Inlet Filter Note! • Diminishing water flow is a sign that the filter need to be cleaned. 1. Close the tap and remove the water supply hose from it. 2. Clean the filter with a brush. 3. Unscrew the water supply hose from the backside of the machine.
  • Page 30 MAINTENANCE Cleaning the Drain Pump Filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.

  • Page 31: Trouble Shooting

    MAINTENANCE Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service. Description Possible cause Solution Appliance does Door is not closed properly. Close the door properly and not start Clothes are stuck.

  • Page 32: Technical Specifications

    • This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Model LSI6 1480 Power Supply 220-240V~,50Hz Washing Capacity 8.0kg Drying Capacity 6.0kg Dimension(W*D*H) 595*540*825...
  • Page 34 MAINTENANCE 1) The actual energy consumption will depend on how the appliance is used. 2) The actual water consumption will depend on how the appliance is used and on the hardness of the water. 3) )Delivery of the spare parts within 15 working days after having received the order. Product Data Sheet concerning (EU) 2019/2014 The product data sheet for your appliance can be found online.
  • Page 35 MAINTENANCE Remarks: energy efficiency class is from A(highest efficiency) to D (lowest efficiency). Estimated annual energy and water consumption for a four-person household, always using the dryer (based on 200 cycles) per year. Estimated annual energy and water consumption for a four-person household, never using the dryer (based on 200 cycles)per year;...

  • Page 36: Built-In Installation

    MAINTENANCE Built-in installation Appendix Hinges Counter magnet Spacer Fixed position paper Tool Screw driver Automatic driver Ruler Pencil Install Steps 600mm 580mm 825mm 152.5mm Overview The door is open from left to right The door is open from right to left Preparation and assembly of the door...
  • Page 37 MAINTENANCE Position Paper Make the mark on the door Position Paper Position Paper Left Open Right Open Fixed position paper on the door. 35mm Drill hole on the door...
  • Page 38 MAINTENANCE Installation the hinges and spacer Installation the counter magnet Installation the door ！ Warning! • When installing the appliance into the kitchen ensure furniture ,if possible, the hoses are placed in either of the two recesses on the back of the appliance. This will help to prevent the hoses from becoming kinked or trapped.
