Summary of Contents for Arrowquip Q-CATCH QC920

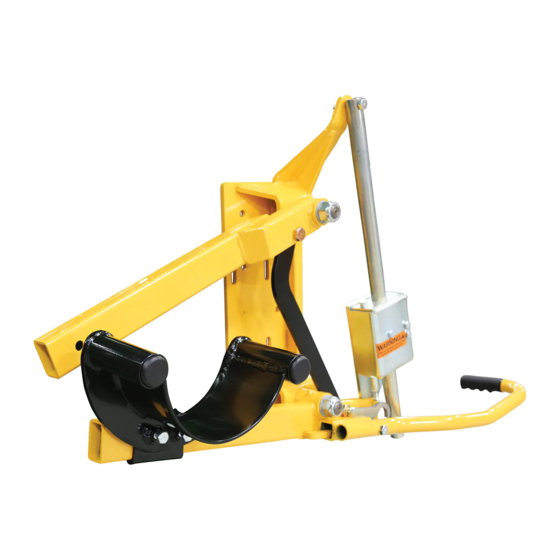

- Page 1 PRODUCT MANUAL Q-CATCH ® CATTLE HEAD HOLDER QC920 JUNE 2021 1-877-275-6075 | cs@arrowquip.com arrowquip.com...
- Page 3 CONTENTS Safety Precautions Installing the Head Holder Recommended Maintenance Troubleshooting Guide Warranty...
- Page 4 OF SAFETY PRECAUTIONS ARE THE SOLE RESPONSIBILITY OF THE OPERATOR. All farm machinery and equipment are potentially dangerous. Careless use of any Arrowquip livestock equipment may cause injury or damage to persons, cattle, or property. Arrowquip has taken precautions in the design and manufacturing of this product to ensure that it is safe and user-friendly.
- Page 5 Installation: a. Insert 4x1/2-13x3” carriage bolts through the head gate door from inside the chute. b. Align the head holder to the slots in the head gate according to your desired height. Secure the head holder with 4 bolts. Safety Precautions: 1.
- Page 6 3. Using the Head Holder operation handle, close the Head Holder half-way. 4. Pull on the Head Holder to test the security of the lock. a. If the lock continues to slip, contact Arrowquip Client Care to determine if replacement parts are needed.
- Page 7 6. Open and close the Head Holder a few times to work the lubricant in. WARRANTY Your product must be registered to claim warranty, and to ensure that Arrowquip has the required information to contact you in the event of a product or part recall. Any owner who fails to register their product warranty with Arrowquip through their Authorized Arrowquip Dealer voluntarily voids their warranty.
- Page 8 If you have any questions regarding your product or require assistance, please contact Arrowquip’s Client Care Team at 1-877-275-6075 or by email at cs@arrowquip.com. Printed in Canada | June 2021...
