- Page 1 Advanced satellite SP - SA series Service Manual ............3 - 10...
- Page 2 Content EN 1. Description ............3 1.1 Layout SP ............4 1.2 Operating Diagrams SP .........5 1.3 Layout SA ............6 1.4 Operating Diagrams SA .........7 2. Maintenance ............8 3. Start ..............8 3.1 New System ...........8 4. Daily Operation .............8 4.1 Start ..............8 4.2 Stop ..............8 4.3 Rinsing the Detergent supply ......8 5.

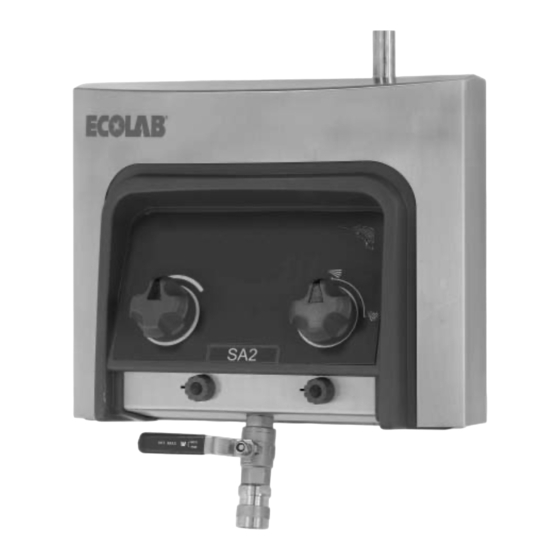

- Page 3 1. Description The satellite in the Chameleon ran- The Advanced satellite incorpora- ge is a complete hygiene station tes a unique pneumatically con- which is connected to a booster or trolled valve system that ensures a main station. Therefore the satel- injectors are fl...
- Page 4 Fig. 4 0627136 1.1 Layout SP Satellites SP11-SP21-SP22-SP32-SP33 (Fig. 4). 1. Water inlet 2. Check valve, air 3. Air Filter unit 4. Injector block 5. Dosing valves 6. Quick coupling with check tap 7. Cover 8. Air regulator 9. Change-over switch, foam/rinse 10.
- Page 5 1.2 Operating Diagrams iht. ISO14617 Satellite SP Ball valve. Filter. Check valve. &RQQHFWLRQ ZLWK 29 DW SRUW QU Detergent regulator. Ejector. Hydraulic valve. Hose connection. Operator valve. OR element. Pressure regulator. Air supply. Outlet. Inlet, topax detergent. Water inlet. &5 & &...
- Page 6 Fig. 4 0627137 1.3 Layout SA Satellites SA11-SA21-SA22-SA32-SA33(Fig. 4). 1. Water inlet 2. Check valve, air 3. Air Filter unit 4. Injector block 5. Dosing valve 6. Flow sensor 7. Quick coupling with check tap 8. Cover 9. Air regulator 0627152 10.
- Page 7 29 DW SRUW QU Solenoid valve. Chemistry regulator. Ejector. Hydraulic valve. Hose connection. Operator valve. OR element. Pressure regulator. Air supply. Outlet. Inlet, Ecolab detergent. Water inlet. JPx : Control board connection. &5 & & &5 & +& 0627149...
-
Page 8: Maintenance
2. Maintenance 5. Service The satellite is maintenance-free. Service may only be carried out by authorized and qualifi ed personnel. Warning: The satellite must only 3. Start be serviced when there is no pres- sure on the system.: 3.1 New system 1. -
Page 9: Troubleshooting
6. Troubleshooting 6.1 Too low or unstable pressure. Steps 1 - 6 Is there suffi cient water Check the water supply. supply to the system? Call a service technician 6.2 Unsatisfactory foam quality Steps 1 - 4 Is the foam nozzle fi tted? Fit a 50/200 foam nozzle. -
Page 10: Recommended Spare Parts
7. Recommended spare parts Satellite Description Amount 0664136 Non-return valve, air 0646050 Non-return valve, detergent 0603338 Non-return valve, water 8. Specifi cations The most important specifi cations are shown on the serial plates on the main station/satellite and pump, respec- tively. - Page 12 © 2005 All rights reserved Ecolab GmbH & Co. OHG P.O. Box 13 04 06 D-40554 Düsseldorf www.ecolab.com Tel.: +49 211 98 93 203 - Fax: +49 211 98 93 223 Printed in Denmark...
