Summary of Contents for LESITE LST1600

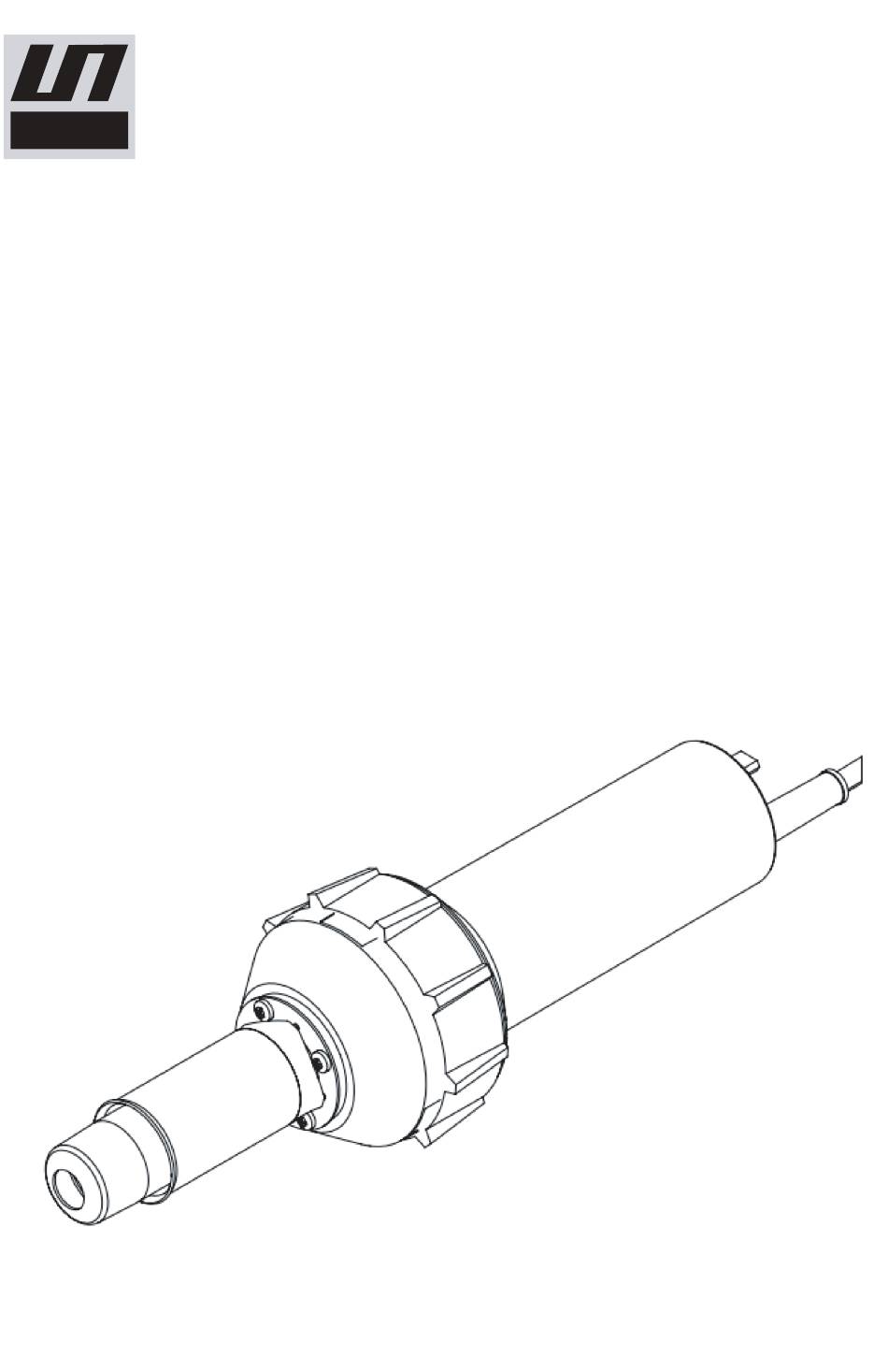

- Page 1 LESITE Lesite Technology Hot Air Welding Gun LST1600 LST3400 LST2000 Manual...
- Page 2 LESITE LST1600/3400/2000 Please read this manual carefully before using this machine, and keep it for future reference Each hot air gun must undergo a double test of 100% performance and safety before leaving the factory. A variety of nozzles and models can meet different heating applications, and deeply meet the needs of customers.
-
Page 3: Product Series
LESITE LST1600/3400/2000 Product Series LST1600A LST1600S LST1600D LST1600E LST3400 LST2000... - Page 4 LESITE LST1600/3400/2000 LST1600 Parameter Model LST1600A LST1600S Rated Voltage 230 V / 120 V 230 V / 120 V 50 / 60 Hz 50 / 60 Hz Frequency Power 1600 W 1600 W Temperature 20 - 620 ℃ 20 - 620 ℃...
- Page 5 LESITE LST1600/3400/2000 LST1600 Main Parts 1、 Air Duct 2、 Outer Cover 3、 Shockproof Pad 4、 Handle 5、 Potentiometer 6、 Power Switch 7、 Power Cord...
- Page 6 LESITE LST1600/3400/2000 LST3400 Parameter Mode LST3400 Rated Voltage 230 V Frequency 50 / 60 Hz Power 3400 W Temperature 20 - 620 ℃ Air Volume Max 360 L/min Noise ≤ 65 Db Net Weight 1.2 Kg Motor Brush Handle Dia φ...
- Page 7 LESITE LST1600/3400/2000 LST2000 Parameter Mode LST2000 Rated Voltage 230 V / 120 V 50 / 60 Hz Frequency Power 1600 W Temperature 20 - 620 ℃ Noise ≤ 65 Db Net Weight 2.4 Kg Handle Dia φ 42 mm Overheat Protection...
-
Page 8: Operation Steps
LESITE LST1600/3400/2000 Operation Steps 1.Start Up Connect Power Supply Turn On the Power Switch Rotate The Potentiometer Rightward Preheat 3 Minutes 2.Shut Down Twist The Potentiometer to "0" Rotate The Potentiometer Leftward Then Wait 5 Minutes Turn Off The Power Switch... - Page 9 LESITE LST1600/3400/2000 Replacing Heating Element...
-
Page 10: Cleaning Air Filter
LESITE LST1600/3400/2000 Cleaning Air Filter Welding Nozzles 20mm Wide 40mm Wide 120° Angle 90°Angle Slot Nozzle Slot Nozzle Nozzle Nozzle φ5mm Round Speed Triangle Tacking Nozzle Tubular Nozzle Nozzle Speed Nozzle... -
Page 11: Warranty
Irregular use and unauthorized modification should not be covered by the warranty. Maintenance · It is strongly recommended to send the product to Lesite company or authorized repair center for professional inspection and repair. · Only original Lesite spare parts are allowed. - Page 12 FUZHOU LESITE PLASTICS WELDING TECHNOLOGY CO.,LTD Tel： +86(591)83818890 E-mail： info@lesite.com.cn Web： www.lesiteweld.com Add: 5# Jingpu Road, Pushang Industry Park, Cangshan, Fuzhou, 350007, Fujian, China...
