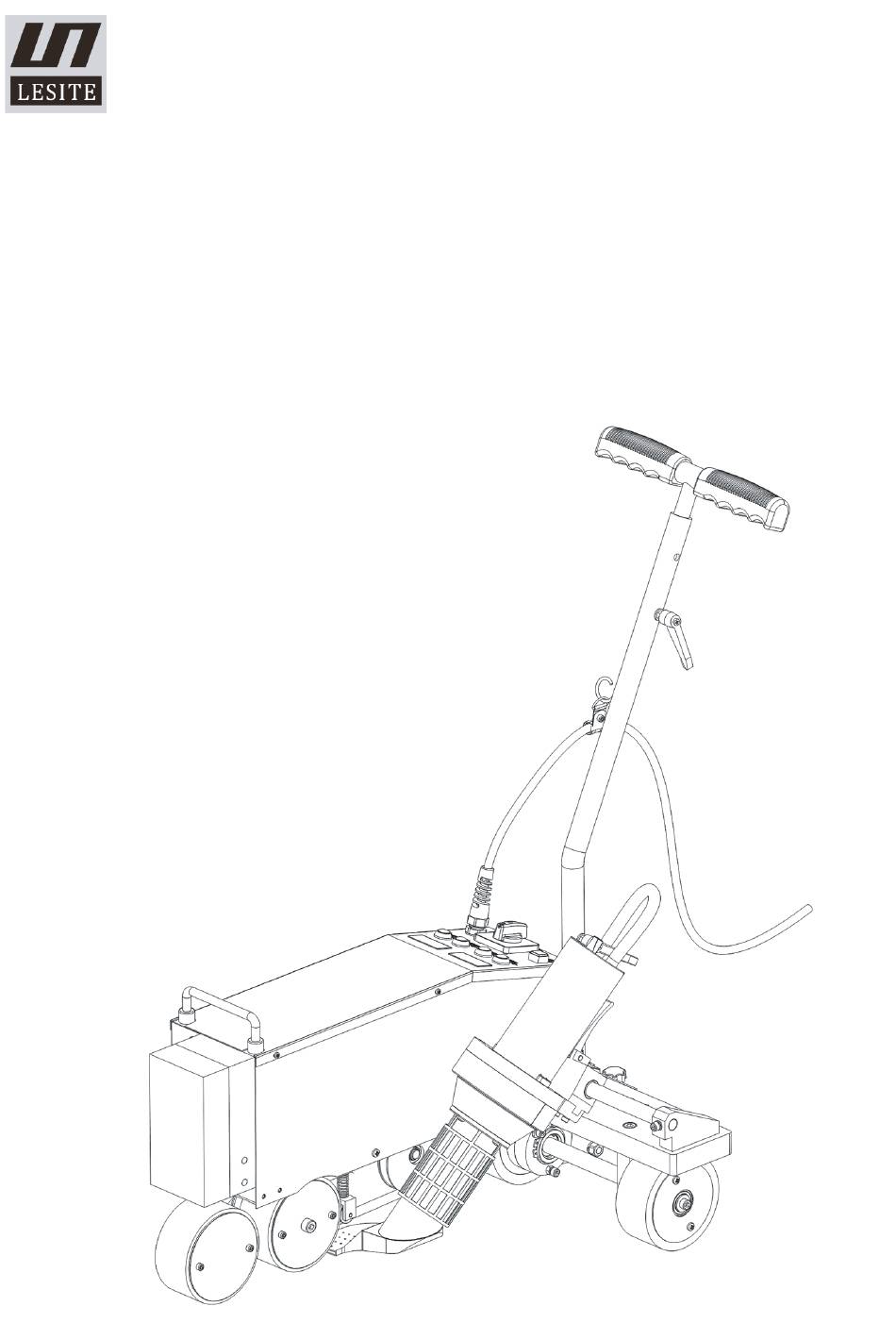

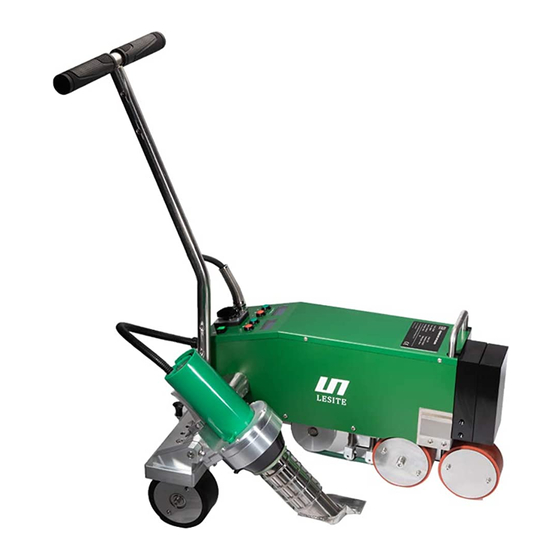

  • Page 1 Lesite Technology LST-WP1 Roofing Hot Air Welder Manual...
  • Page 2 Application The roofing hot air welder LST-WP1 is of advanced heating technology and large welding pressure. And it is powerful, stable and easy to be operated, which is suitable for PVC, TPO, EPDM, CPE and other polymer waterproofing membrane constructions.
  • Page 3 LST-WP1 Parameter Model LST-WP1 Voltage 230V Power 4200W Welding Temp 50~620℃ Welding Speed 1~10m/min Welding Seam 40mm Machine Size 555×358×304mm Net Weight 38 kg Certificate Warranty 1 Year Model LST-WP1 MOTOR Voltage 230V Power 4200W Welding Temp 50~620 ℃ Welding Speed 1~10m/min...
  • Page 4: Main Parts

    LST-WP1 Main Parts 11、 Handle 10、 Guide Bar 12、 Lift Handle 13、 Clump Weight (middle) 9、 Power Wire Of Hot Air Blower 8、 Hot Air Blower 14、 Clump Weight ( outer) 7、 Hot Air Blower 4、 Hot Airblower Fixed Set 1、...
  • Page 5: Control Panel

    LST-WP1 Control Panel 32-Temperature Rise Button 33-Temperature Drop Button 34-Speed Rise Button 35-Speed Drop Button 36-Machine Walk Button 37-Current Temp. 38-Setting Temp. 39-Current Speed 40-Setting Speed 41-Power ON/OFF 32+33- Press Simultaneously Turn OFF/ON Heating 1.Welding temperature: Using bottoms to set the required temperature. You can set the temperature according to the welding materials and the ambient temperature.
  • Page 6 LST-WP1 Positioning Before Welding Limit Groove Plate Of Guide Wheel Handle Of Guide Wheel Upper Film upper Fixed Plate Of Guide Wheel membrane edge Lower Film Guide Wheel 1.Depress handle to lift machine, move it to welding position (the edge of upper film should keep in the same alignment with drive roller), as shown in figure 4.
  • Page 7 LST-WP1 Welding Nozzle Setting Nozzle 35-42mm Nozzle pic1 pic2 ◆ Nozzle default position setting 3 pcs Adjusting screws Distance between nozzle and wheel pic3 ◆ Adjust the nozzle position by 3 pcs screws...
  • Page 8: Error Code

    LST-WP1 Nameplate The model identification and serial number identification are marked on the nameplate of the machine you choose. Please provide these data when consulting Lesite Sales and Service Center. Error Code Error Code Description Measures No thermocouple Error a.Check thermocouple connection...
  • Page 9: Shutdown Steps

    LST-WP1 Boot Steps Current Temp. Current Speed Current Speed ① Turn on the machine, and the LCD display screens are shown as above. At this time, the air blower does not heat and is in the state of blowing natural wind.
  • Page 10: Daily Maintenance

    LST-WP1 Daily Maintenance Use steel brush to clean the welding nozzle. Clean the air inlet at the back of the hot air blower.
  • Page 11: Quality Assurance

    Irregular use and unauthorized modification should not be covered by the warranty. Maintenance · It is strongly recommended to send the product to Lesite company or authorized repair center for professional inspection and repair. · Only original Lesite spare parts are allowed.
  • Page 12 FUZHOU LESITE PLASTICS WELDING TECHNOLOGY CO.,LTD Tel: +86(591)83818890 E-mail: info@lesite.com.cn Web: www.lesiteweld.com Add: 5# Jingpu Road, Pushang Industry Park, Cangshan, Fuzhou, 350007, Fujian, China...
