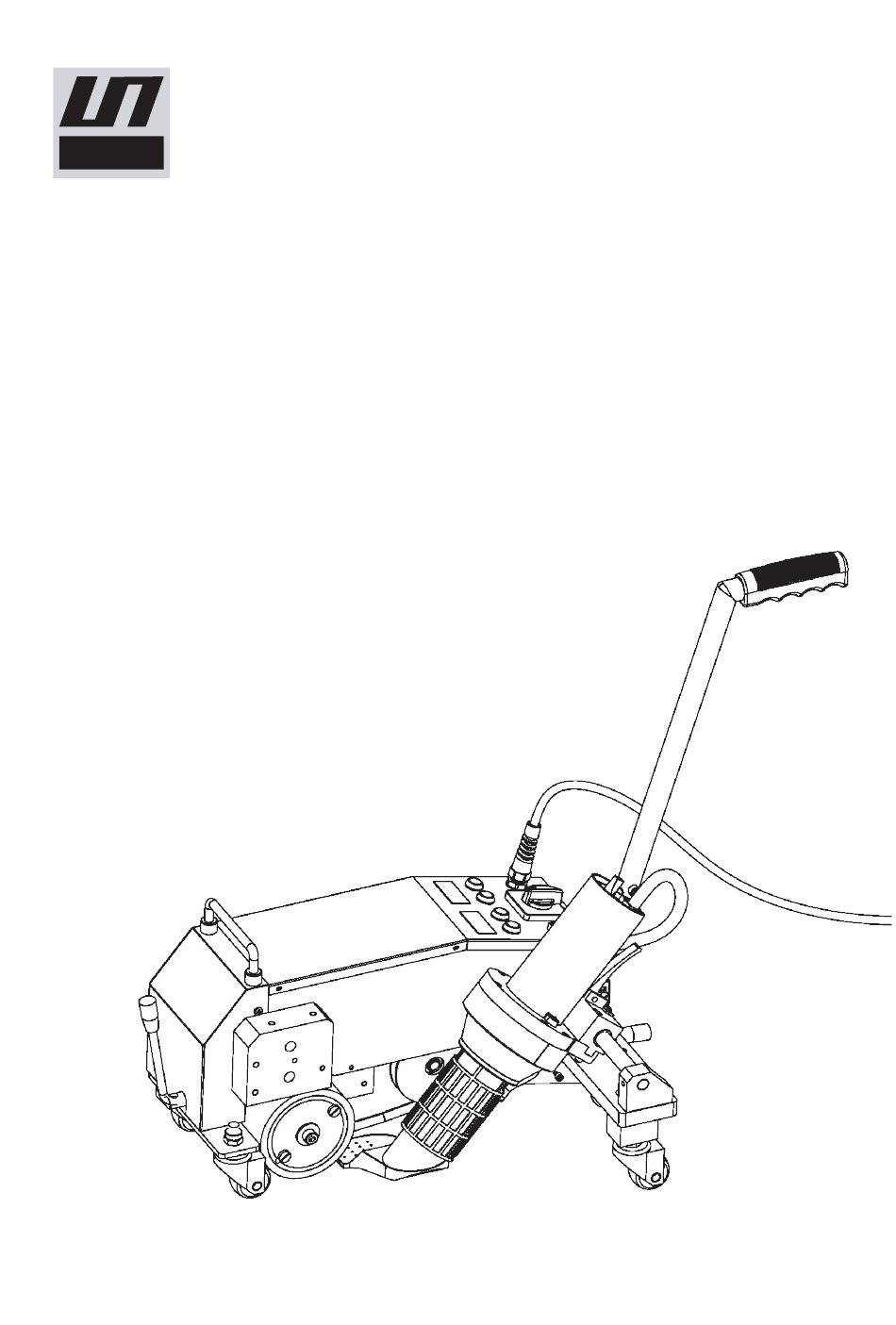

- Page 1 LESITE Lesite Technology LST-MAT Banner & Tarpaulin Welder Manual...
- Page 2 LESITE LST-MAT1/MAT2 Please read this manual carefully before using this machine, and keep it for future reference. Provide practical and high-quality equipment and application solutions for the splicing and production of advertising printing, fast soft doors, awnings, tents, inflatable castles, plastic products, etc.
- Page 3 LESITE LST-MAT1/MAT2 Parameter Model LST-MAT1 Rated Voltage 230 V 50 / 60 Hz Frequency Rated Power 4200 W Welding Speed 1.0 - 10.0 m/min Heating Temperature 50 - 620℃ Seam Width 40 / 50 / 80 mm Net Weight 22.0 Kg...
- Page 4 LESITE LST-MAT1/MAT2 LST-MAT1 Main Parts 1.Power Wire 8.Lift Handle 4.Guide Bar 9.Clump Weight 7.Lift lever 2.Position Handle Of Hot Air Blower 3.Universal wheel 6.Overlap Pressure roller 5.Overlap hot air nozzle 10.Control handle of guide 11.Guide Wheel...

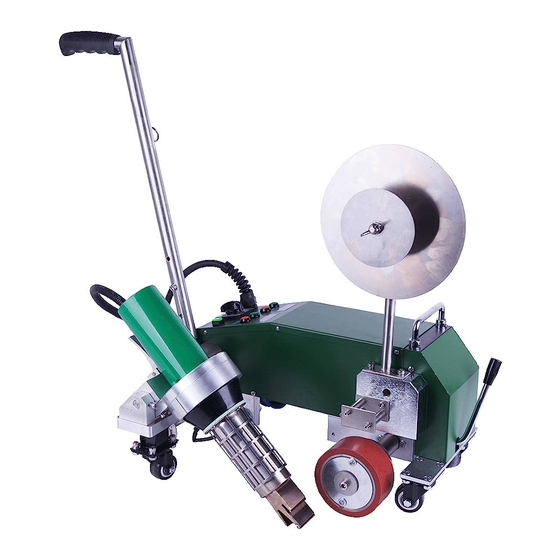

- Page 5 LESITE LST-MAT1/MAT2 LST-MAT2 Main Parts 14.Tape circular disc 15.Disc Nut 13.Tape fixed cover 12.Tape fixed set 16.Tape limit set 17.Pressure roller stopper 18.Tape pressure roller 19.Tape hot air nozzle...
-
Page 6: Control Panel
LESITE LST-MAT1/MAT2 Control Panel 19-Temperature Rise Button 20-Temperature 016°C Drop Button ST： 510°C 5.0M 21-Speed Rise Button 22-Speed Drop Button 23-Machine Walk Button 24-Current Temp. 25-Setting Temp. 26-Current Speed 27-Setting Speed 28-Power ON/OFF 19+20 Press Simultaneously Turn OFF/ON Heating 1.Welding temperature：... - Page 7 LESITE LST-MAT1/MAT2 Welding Nozzle Setting Nozzle 35-45mm Nozzle pic1 pic2 pic3 35mm 1. The distance between the air nozzle and the ground should be shown in pic1 (the distance has been adjusted before delivery). 2. The distance between the air nozzle and the pressure wheel should be as shown in pic2 and pic3 (the distance has been adjusted before delivery).
- Page 8 LESITE LST-MAT1/MAT2 Boot/Shutdown Steps Current Temp. Current Speed Current Speed ① Turn on the machine, and the LCD display screens are shown as above. At this time, the air blower does not heat and is in the state of blowing natural wind.
-
Page 9: Error Code
LESITE LST-MAT1/MAT2 Error Code Error Code Description Measures a.Check thermocouple connection No thermocouple “Error T002” b.Replace thermocouple detected No heating element a.Check heating element connection “Error S002” detected b.Replace heating element a.Check thermocouple connection Thermocouple failure “CT:999 Err-T001” b.Replace thermocouple in operation a.Check hot air blower... -
Page 10: Daily Maintenance
LESITE LST-MAT1/MAT2 Nameplate Daily Maintenance Use steel brush to clean the welding nozzle. Clean the air inlet at theback of the hot air blower. -
Page 11: Quality Assurance
Irregular use and unauthorized modification should not be covered by the warranty. Maintenance · It is strongly recommended to send the product to Lesite company or authorized repair center for professional inspection and repair. · Only original Lesite spare parts are allowed. - Page 12 FUZHOU LESITE PLASTICS WELDING TECHNOLOGY CO.,LTD Tel： +86(591)83818890 E-mail： info@lesite.com.cn Web： www.lesiteweld.com Add: 5# Jingpu Road, Pushang Industry Park, Cangshan, Fuzhou, 350007, Fujian, China...
