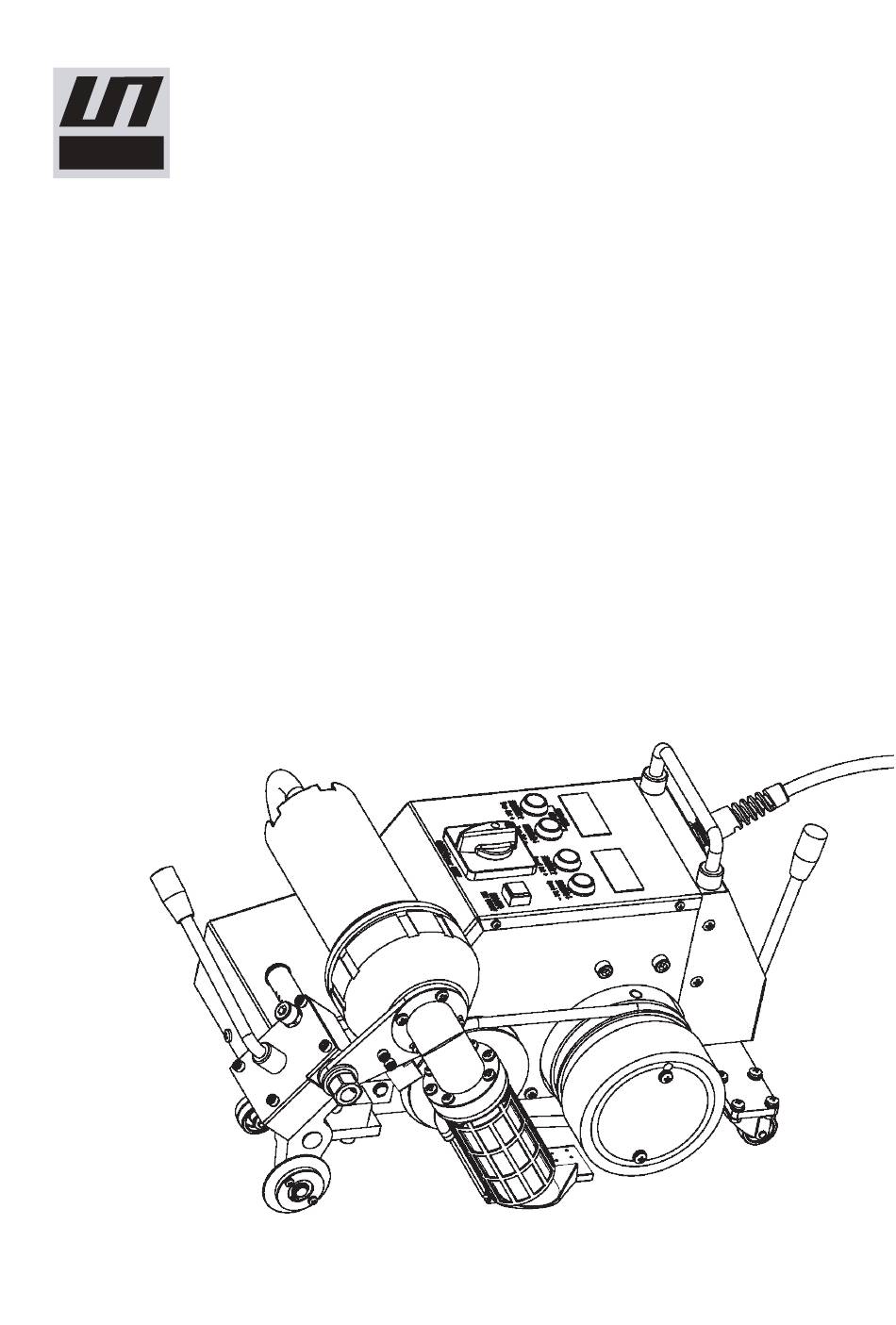

- Page 1 LESITE Lesite Technology LST-UME Banner & Tarpaulin Welder Manual...
- Page 2 LESITE LST-UME Please read this manual carefully before using this machine, and keep it for future reference. Provide practical and high-quality equipment and application solutions for the splicing and production of advertising printing, fast soft doors, awnings, tents, inflatable castles, plastic products, etc.
- Page 3 LESITE LST-UME Parameter Model LST-UME Rated Voltage 230 V / 120 V Frequency 50 / 60 Hz Rated Power 2800 W / 2200 W Welding Speed 1.5 - 10.0 m/min Heating Temperature 50 - 620 ℃ Seam Width 20 / 30 / 40 mm Net Weight 12.5 Kg...
-
Page 4: Main Parts
LESITE LST-UME Main Parts 2.Hot air blower 1.Handle 3.Operating handle 9.Lift lever 4.Universal wheel 5.Guide wheel 8.Drive roller 6.Belt wheel 7.Hot air nozzle... - Page 5 LESITE LST-UME Main Parts 11.Micro switch 10.Guide pad 13.Driver roller adjusting screw 12.Hot air nozzle adjusting nut...
-
Page 6: Control Panel
LESITE LST-UME Control Panel 14-Temperature Rise Button 15-Temperature 016°C Drop Button ST： 510°C 5.0M 16-Speed Rise Button 17-Speed Drop Button 18-Machine Walk Button 19-Current Temp. 20-Setting Temp. 21-Current Speed 22-Setting Speed 23-Power ON/OFF 14+15 Press Simultaneously Turn OFF/ON Heating 1.Welding temperature：... - Page 7 LESITE LST-UME Welding Nozzle Setting Nozzle 35-45mm Nozzle pic1 pic2 pic3 Upper film Down film The edge of upper film 1. The distance between the air nozzle and the ground should be shown in pic1 (the distance has been adjusted before delivery).
- Page 8 LESITE LST-UME Boot/Shutdown Steps Current Temp. Current Speed Current Speed ① Turn on the machine, and the LCD display screens are shown as above. At this time, the air blower does not heat and is in the state of blowing natural wind.
-
Page 9: Error Code
LESITE LST-UME Error Code Error Code Description Measures a.Check thermocouple connection No thermocouple “Error T002” b.Replace thermocouple detected No heating element a.Check heating element connection “Error S002” detected b.Replace heating element a.Check thermocouple connection Thermocouple failure “CT:999 Err-T001” b.Replace thermocouple in operation a.Check hot air blower... -
Page 10: Daily Maintenance
LESITE LST-UME Nameplate Daily Maintenance Use steel brush to clean the welding nozzle. Clean the air inlet at theback of the hot air blower. -
Page 11: Quality Assurance
Irregular use and unauthorized modification should not be covered by the warranty. Maintenance · It is strongly recommended to send the product to Lesite company or authorized repair center for professional inspection and repair. · Only original Lesite spare parts are allowed. - Page 12 FUZHOU LESITE PLASTICS WELDING TECHNOLOGY CO.,LTD Tel： +86(591)83818890 E-mail： info@lesite.com.cn Web： www.lesiteweld.com Add: 5# Jingpu Road, Pushang Industry Park, Cangshan, Fuzhou, 350007, Fujian, China...
