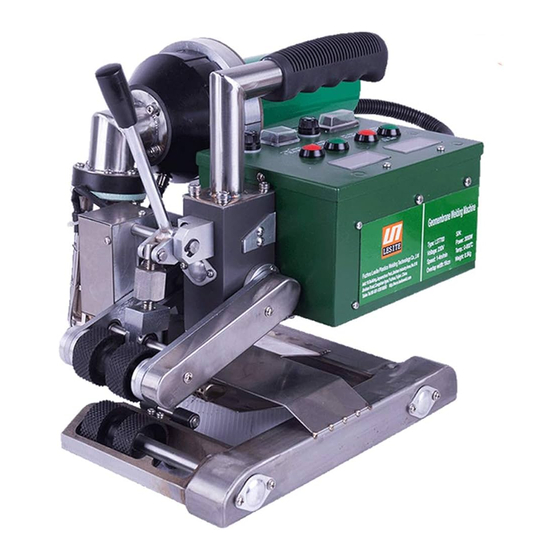

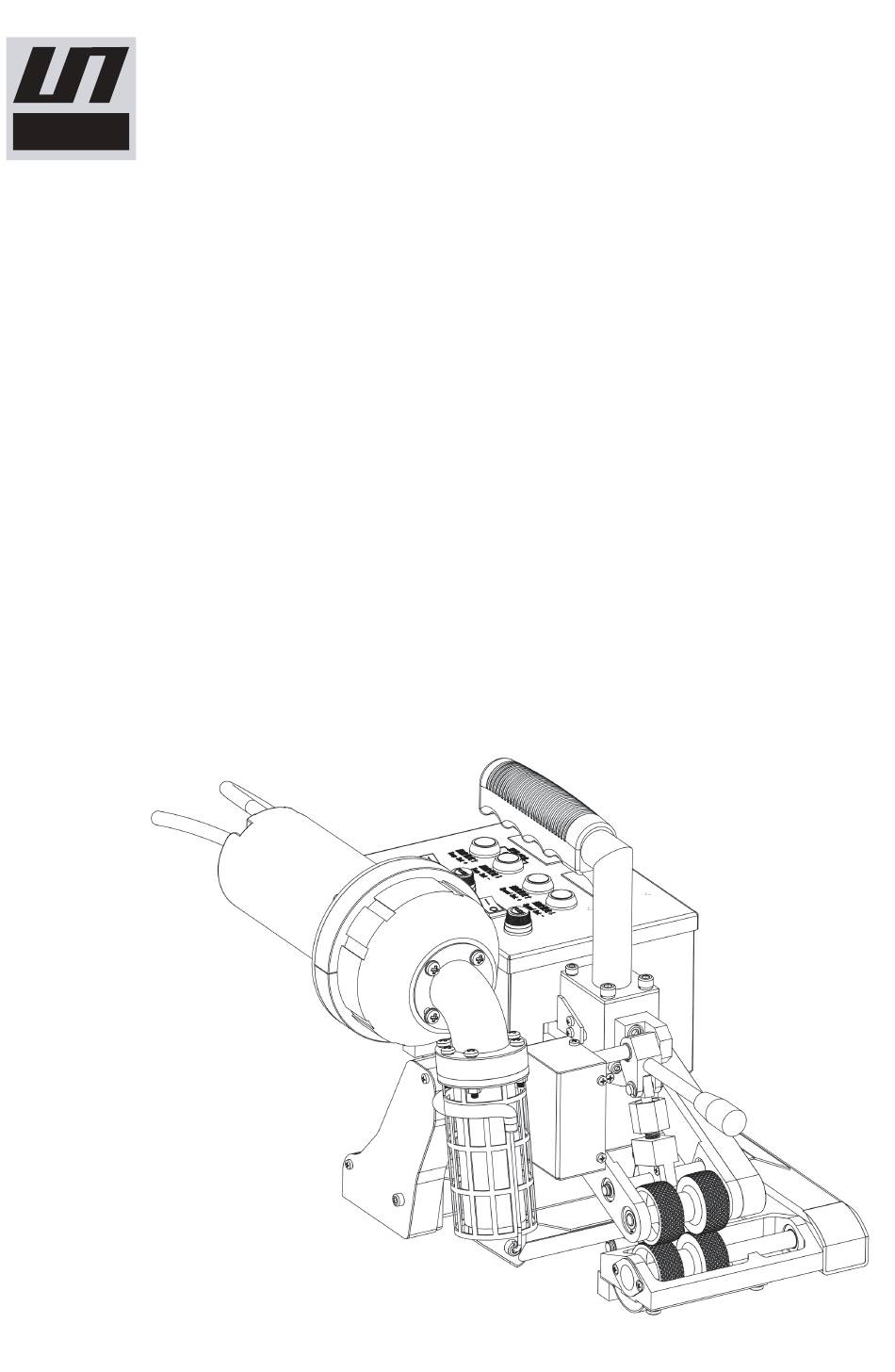

- Page 1 LESITE Lesite Technology LST700 Geo Hot Air Welder Manual...
- Page 2 LESITE LST700 Please read this manual carefully before using this machine, and keep it for future reference. Application - Solid Waste Landfills - Chemical Mining - Sewage Treatment - Water Conservancy - Anti-seepage Project - Aquaculture Precautions Unplug the welder before disassembling it to avoid of being hurt by exposed wires or component inside the machine with power.
-
Page 3: Main Parts
LESITE LST700 Main Parts 1、Rocker Arm 2、Pressure Adjusting Nut 3、Cam 4、Speed Reduction Box 5、Control Box 6、Handle 7、Handle Case 8、Hot air Blower 9、Nozzle Protector 10、Nozzle 11、Bottom Transmission Frame 12、Pressure Roller 13、Bottom Roller Bearing 14、Pressure Handle 15、Thermocouple 16、Upper Pressing Whee 17、Back Creeping Roller 18、Bottom Pressing Roller... - Page 4 LESITE LST700 LST700 Control Panel 23、Temperature LCD Display 24、Temperature Drop Knob 25、Temperature Rise Knob 26、ON/OFF Switch 27、Power Fuse 28、Speed LCD Display 29、Speed Increase Knob 30、Speed Down Knob 31、Motor Fuse 32、Moving Switch...
- Page 5 8、 After completion of the welding work, press the buttons (24) and (25) on the panel to make the hot air blower in a cold blowing condition in order to cool the nozzle. 9、 Power off. LST700 Parameters Setting 1、 Welding temperature: Press the buttons on the panel to set the required welding temperature , which depends on the welding material and ambient temperature.
- Page 6 LESITE LST700 LST700 Parameter Model LST700 Voltage 230 / 120 V Frequency 50 / 60 Hz power 2800 / 2200 W Temperature 50～620 ℃ Welding Speed 0.5～3.5 m/min Thickness Of Materials 0.5～2.0 mm (single layer thickness) Welding Width 15mm×2 cavity 15mm...
- Page 7 The model identification and serial number identification are marked on the nameplate of the machine you choose. Please provide these data when consulting Lesite Sales and Service Center. LST700 Boot Steps 1、 ON/OFF switch (27) is used for turning on the main power of the welder.
-
Page 8: Parts Replacement
LESITE LST700 LST700 Boot Steps 4、 If press the bottoms (25) and (24) at the same time, LCD display shows as Fig 1, the hot air blower blows cold air without heating. 5、 When the welding nozzle is at the right position, press the moving switch (31) and the welder starts to move and weld. -
Page 9: Routine Maintenance
LESITE LST700 Fault Diagnosis And Solved Ways Fault Caused Solutions No power Check the power and connect it Fuse burns Replace new fuse Motor cannot work Speed control board burns Replace new control board Motor burns Replace new motor Routine Maintenance... -
Page 10: Quality Assurance
LESITE LST700 Quality Assurance · This product guarantees a 12-month shelf life from the day it is sold to consumers. We will be responsible for failures caused by material or manufacturing defects. We will repair or replace defective parts at our sole discretion to meet the warranty requirements. -
Page 11: Repairs And Spare Parts
LESITE LST700 Repairs and Spare Parts · It is strongly recommended to send the product to Lesite company or authorized repair center for professional inspection and repair. · Only original Lesite spare parts are allowed. One year warranty... - Page 12 FUZHOU LESITE PLASTICS WELDING TECHNOLOGY CO.,LTD Tel： +86(591)83818890 E-mail： info@lesite.com.cn Web： www.lesiteweld.com Add: 5# Jingpu Road, Pushang Industry Park, Cangshan, Fuzhou, 350007, Fujian, China...
