Four-Faith 5G CPE F-NR300 User Manual

Four-Faith 5G CPE F-NR300 User Manual

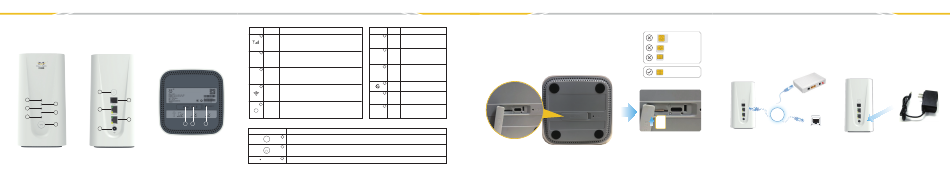

Description of 5G CPE Ports and Indicators

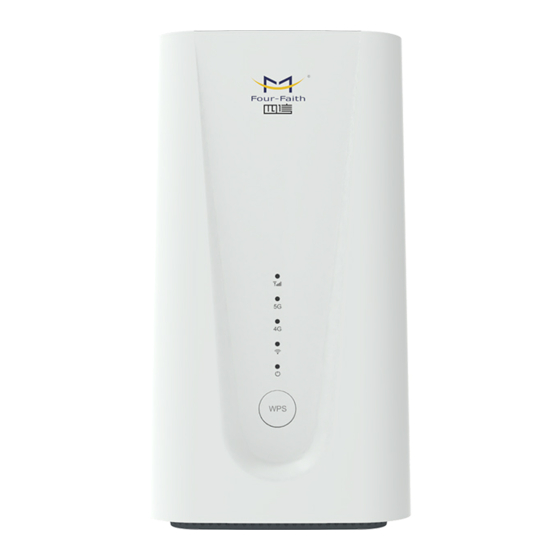

1. 5G CPE Interfaces
7 5G CPE
1
8
2
3
9
4
5
10
6 12 13
11
Four-Faith 5G CPE F-NR300 User Manual

2. Indicator Description

4.Interfaces Description

Indicator Name Description Interfaces
1 8
Cellular
1）Blue，signal value RSRP≥ -95dBm PHONE
Network
(Optional)
2）Yellow，signal value RSRP < -95dBm
Indicator
9
2
1）On，Connect to 5G network
LAN2/WAN
5G
5G
2）Off，Disconnect with 5G network
Indicator
3）Blink，dialing, blink frequency 500ms/time
10
3
1）On，Connect to 4G network
LAN1
4G
4G 2）Off，Disconnect with 4G network；
Indicator
3）Blink，dialing, blink frequency 500ms/time
11
- +
4
1）On，WIFI on
WIFI 2）Blink：After press the WPS button，500ms/time，
12
Indicator continue 2 minutes
3）Off，WIFI off SIM Card
5
13
Power 1）On，Power on
Indicator 2）Off, Power off Type C

3.Button Description

14
Button Description
6 1. After the button is pressed, the WiFi indicator light will blink 500ms/time for 2 minutes.
WPS
2. The user terminal can quickly establish a secure WIFI connection without manually entering a password
1. After the button is pressed, the WiFi indicator light will blink 500ms/time for 2 minutes.
7
2. After Devices Shutdown: Plug and unplug the power supply, it will automically turn on.
3.After Shutdown: Long press the power button for 3s, turn on the device.
14 Press and hold the button for more than 10 seconds to reset to the factory setting.
RESET
Four-Faith 5G CPE F-NR300 User Manual

2. Set up SIM Card or Wired Broadband Internet Access

Name Description
Can choose SIM card or wired broadband connect to network
Phone Phone RJ11 port, can directly
Port connect the phone to make calls
SIM Card
1. Indicator is green and steady on,
Step 1：
Ethernet
it is connected
Port 2. Indicator is yellow and blinking,
Insert SIM card direction shown as below (Chip face down, notch face in)
data is transmitt or receive
1. Indicator is green and steady on,
Ethernet it is connected
Port 2. Indicator is yellow and blinking,
data is transmitt or receive
Power DC 12V/3A
Nano-SIM
Insert the Nano-SIM card
Card Slot
Type-C The type-c interface is used only
Port
R&D personnel testing
Wired Boardband Network
Step 1：
General SIM Card Network cables can only be connected to LAN2/WAN network ports.
Micro SIM Card
Nano SIM Card + Card Set
Nano SIM Card
Optical/broadband /modem
provided by
broadband operator
Ethernet
Network
Nano
SIM
On wall Ethernet port
Four-Faith 5G CPE F-NR300 User Manual
Step 2：
Connect the power supply, the device will turn on automatically
