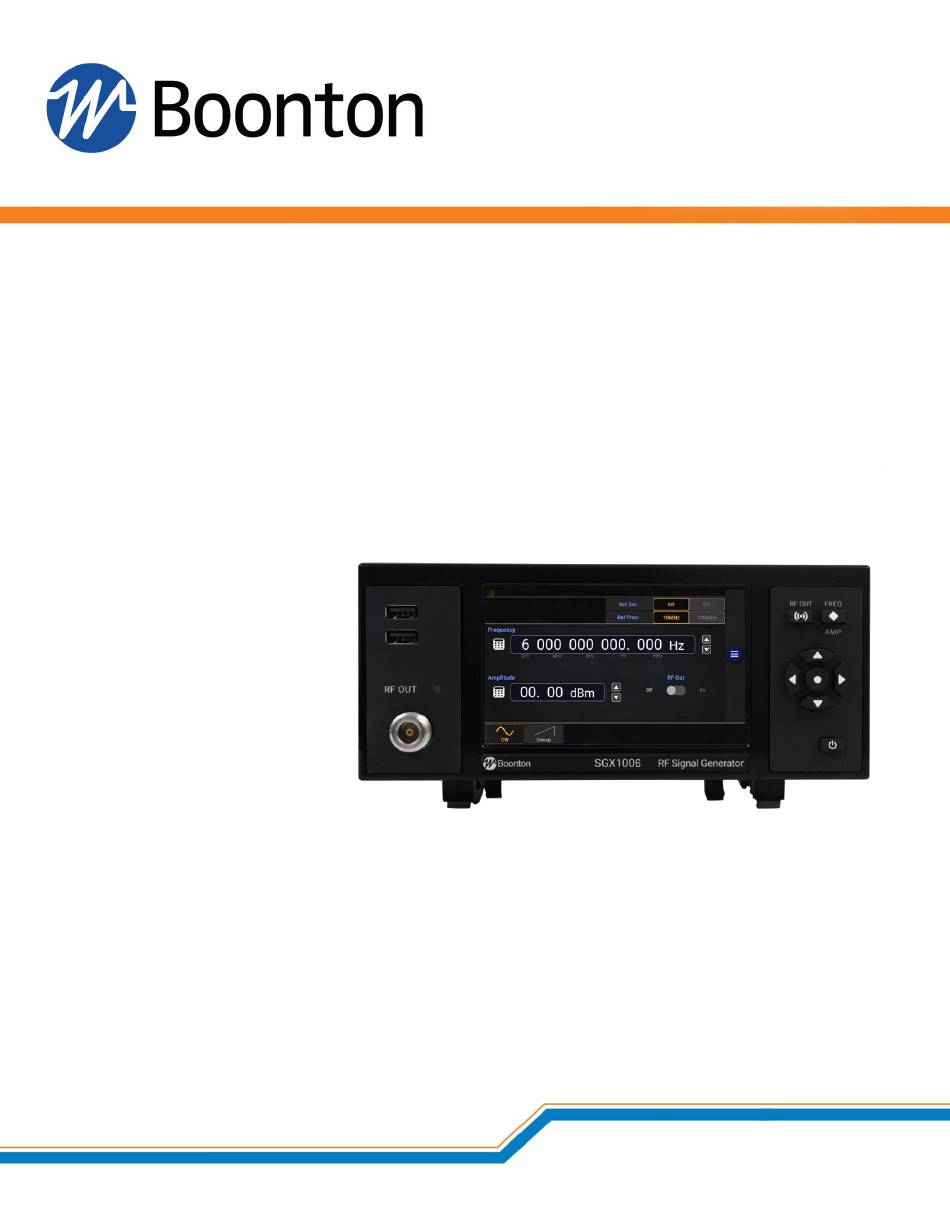

  • Page 1 PMX40 RF Power Meter – INSTRUCTION MANUAL INSTRUCTION MANUAL SGX1000 Series RF Signal Generator 98409500A | Rev 20220309...
  • Page 3 Parsippany, NJ, USA. All rights reserved. P/N 98408500A This manual covers the SGX1000 Series RF Signal Generators, serial numbers: 1001 and higher. The SGX1000 Series application software used in this product is licensed by Boonton Electronics, a subsidiary of the Wireless Telecom Group, Inc.
  • Page 4 Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument. Boonton Electronics assumes no liability for the customer’s failure to comply with these requirements.
  • Page 5 SGX1000 Series RF Signal Generators – INSTRUCTION MANUAL SAFETY SYMBOLS This safety requirement symbol has been adopted by the International Electro-technical Commission, Document 66 (Central Office) 3, Paragraph 5.3, which directs that an instrument be so labeled if, for the correct use of the instrument, it is necessary to refer to the instruction manual.

  • Page 6: Table Of Contents

    Contents General Information ..........................1 Organization ..........................1 Description ............................ 2 Features ............................2 Accessories ............................ 2 Optional Configurations ........................ 2 Specifications ..........................2 Installation ............................3 Unpacking & Repacking ........................ 3 Power Requirements ........................4 Connections ..........................4 Preliminary Check ......................... 6 Getting Started ............................
  • Page 7 4.4.6 MAIN→System→I/O Config→LAN ..................20 4.4.7 MAIN→System→Utilities ....................20 4.4.8 MAIN→System→Utilities→Exit ..................21 4.4.9 MAIN→System→Utilities ....................21 4.4.10 MAIN→System→Utilities→Reports ................... 22 Maintenance ............................23 Safety ............................23 Cleaning ............................23 Inspection ............................ 23 Lithium Battery ........................... 24 Software Upgrade ........................24 Appendix A - Warranty and Repair Policy .....................

  • Page 9: General Information

    1 General Information This instruction manual provides you with the information you need to install, operate, and maintain Boonton SGX1000 Series RF Signal Generators. Section 1 is an introduction to the manual and the instrument. 1.1 Organization The manual is organized into five sections and two Appendices, as follows: Section 1 - General Information presents summary descriptions of the instrument and its principal features, accessories, and options.

  • Page 10: Description

    1.2 Description The SGX1000 series of RF signal generators offer high performance signal generation with an easy-to-use interface in a compact form factor. The SGX1000 utilizes a proprietary blend of direct digital and direct analog synthesis to provide ultra-fine frequency resolution, lightning-fast frequency switching, ultra-low phase noise and jitter, and superior reliability.

  • Page 11: Installation

    2.1 Unpacking & Repacking The SGX1000 series RF signal generators are shipped complete and are ready to use upon receipt. Figure 2-1 shows you the various pieces included in the packaging and the order in which they are loaded into the container.

  • Page 12: Power Requirements

    2.2 Power Requirements The SGX1000 series is equipped with a switching power supply that provides automatic operation from a 90 to 264 VAC, 47 to 63 Hz single-phase, AC power source. Maximum power consumption is 45 VA. Connect the power cord supplied with the instrument to the power receptacle on the rear panel. See Figure 3-2.
  • Page 13 In most cases, it will be necessary to configure the interface using the System→I/O Config menus.

  • Page 14: Preliminary Check

    2.4 Preliminary Check The following preliminary check verifies that the instrument is operational and has the correct software installed. It should be performed before the instrument is placed into service. To perform the preliminary check, proceed as follows: Press the lower half (marked "0") of the power switch on the left side of the power module on the rear panel.
  • Page 15 Figure 2-3. System > Configuration Report Display Follow the steps in Section 3.4 to initialize the instrument.

  • Page 16: Getting Started

    3 Getting Started This chapter will introduce the user to SGX1000 series RF signal generators. The chapter will identify objects on the front and rear panels, identify display organization, list the configuration of the instrument after initializing, and provide practice exercises for front panel operation. For additional information, see Section 4 "Operation."...
  • Page 17 Figure 3-1. SGX1000 Series RF Signal Generator - Front Panel Table 3-1. Operating Controls, Indicators, and Connections Reference # Front Rear Nomenclature Function USB Ports Two standard USB 2.0 Type A receptacles are located on the front and rear panels of the instrument and accept standard USB keyboards, mice, and flash drives.
  • Page 18 GPIB 24-pin GPIB (IEEE-488) connector for connecting the signal generator to the remote control General Purpose Interface Bus. GPIB parameters can be configured through the menu. AC Line Input A multi-function power input module is used to house the AC line input, main power switch, and safety fuse.

  • Page 19: Touch Screen Display

    Table 3-2 describes the different areas of the display layout of the SGX1000 series RF signal generators. Figure 3-3 shows the CW mode display of the instrument with a menu exposed. Figure 3-4 shows the Sweep mode display with the menus hidden.
  • Page 20 Frequency Indicates the current frequency setting for the RF output. Amplitude Indicates the current amplitude setting for the RF output. RF Output Indicates the state of the RF output. A blue LED indicates the state. Operation Mode Indicates and allows selection of the current Operation mode in use.

  • Page 21: Initialization

    Modes available are CW and Sweep. 3.4 Initialization The steps shown here will initialize SGX1000 series RF signal generators and prepare them for normal operations. Step 2 should only be performed when you wish to set the instrument operations to a known state.

  • Page 22: Operating Modes

    Sweep Point Count Trigger Free Run Sweep Dwell 100.00 mS Start Frequency 80 MHz Stop Frequency 100 MHz Amplitude 00.00 dBm RF Out Sweep Run 3.5 Operating Modes The SGX1000 can be setup in CW mode to generate a CW signal at a user-specified frequency and amplitude or in Sweep mode to step up or down through a set number of frequencies at a specific amplitude with a settable dwell time.

  • Page 23: Sweep Mode

    3.5.2 Sweep Mode The Sweep operation mode is used to view and setup an RF output that can be swept up or down between the start and stop frequency points with a user-defined number of points and dwell time Sweep Direction - The number of steps to use in the sweep. output frequency of the generator is adjustable from GHz down to mHz resolution.

  • Page 24: Operation

    Press the ⚫ key again to de-activate the digit for editing and navigating away. 4.3 Parameter Data Entry and Selection The SGX1000 series RF signal generator parameters can be changed in various ways depending on the type of parameter being addressed.

  • Page 25: Numerical Data Entry

    4.3.1 Numerical Data Entry Numerical data is entered by touching the ellipsis icon or the numeric pad icon next to the parameter to be changed. Selecting the icon brings up an on-screen numeric keypad similar to the one shown in Figure 4-2. Figure 4-2.
  • Page 26 Figure 4-3. Sweep Mode Trigger Pick-List...

  • Page 27: Menu Reference

    4.4 Menu Reference 4.4.1 Main Menu The Main Menu shown in Figure 4-4 is the topmost menu level from which all other menus originate. Figure 4-4. The MAIN Menu 4.4.2 MAIN Inst. Settings: Selecting Preset will load the default operating parameters listed in Table 3-3.

  • Page 28: Main→System→Display

    4.4.4 MAIN→System→Display Key Beep: Enables and disables the audible key beep. 4.4.5 MAIN→System→I/O Config GPIB Address: Set and View the current GPIB address in use for instruments equipped with GPIB option. 4.4.6 MAIN→System→I/O Config→LAN DHCP/AutoIP: Set the state of DHCP/AutoIP system for the Ethernet port. If DHCP/AutoIP is enabled (On), the instrument will attempt to obtain its IP Address and Subnet Mask, a DHCP (dynamic host configuration protocol) server on the network.

  • Page 29: Main→System→Utilities→Exit

    4.4.8 MAIN→System→Utilities→Exit Exit To Desktop: Exits the SGX1000 Signal Generator Main application and allows access to OS Desktop. Shut Down: Shuts down power to the SGX1000 putting the generator in standby mode and is the same as pressing the ON/Standby button on the front panel.

  • Page 30: Main→System→Utilities→Reports

    4.4.10 MAIN→System→Utilities→Reports Configuration: Select Show to display an “About” dialog with configuration information for the SGX1000 like that shown in Figure 2-3.

  • Page 31: Maintenance

    5.3 Inspection If SGX1000 series RF signal generators malfunction, perform a visual inspection of the instrument. Inspect for signs of damage caused by excessive shock, vibration, or overheating. Inspect for broken or loose electrical connections, or accumulations of dust or other foreign matter.

  • Page 32: Lithium Battery

    Figure 6-1. Self-Test Results Lithium Battery SGX1000 series RF signal generators contain one Lithium “coin cell” battery to provide for non-volatile storage of the instrument state. This is located on the Main Printed Circuit assembly. It should have a life of 5-10 years.

  • Page 33: Appendix A - Warranty And Repair Policy

    Appendix A - Warranty and Repair Policy Model SGX1000 Instrument If Boonton SGX1000 series RF signal generators are not operating correctly and requires service, contact the Boonton Electronics Service Department for return authorization. You will be provided with an RMA number and shipping instructions.

  • Page 34: Appendix B - End User License Agreement

    Appendix B - End User License Agreement Available upon written request. -- END -- SGX1000 Series RF Signal Generators INSTRUCTION MANUAL APPENDIX -B...
