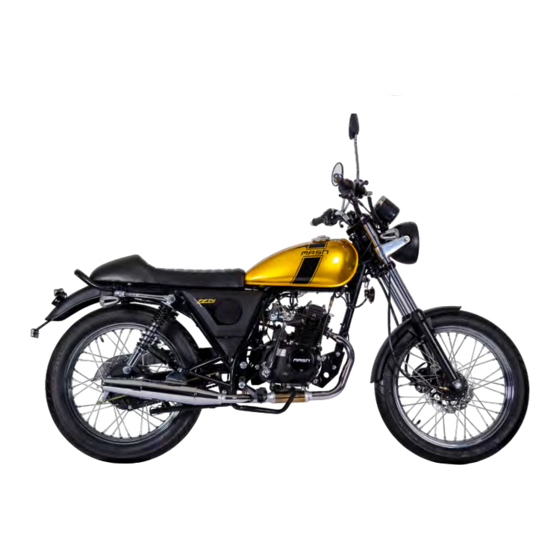

- Page 1 cc cc USER MANUAL FIFTY FIFTY...
- Page 2 Congratulations ! You are the happy new owner of a MASH which embodies a new spirit, a new trend : a motorcycle with a look and a philosophy «Vintage», synonymous of freedom. Please read this manual thoroughly before using your MASH.
- Page 3 Important Cautions About running-in of a motorcycle The first 1000 km operation is very important in the entire service life of a motorcycle. A correct running-in can guarantee both the longest service life and the best performance of the vehicle. Running-in can polish machined surfaces and form smooth engagement.
-
Page 4: Table Of Contents
Observing the following recommendations will ensure the reliability of your motorcycle and prolong its life. The staff of MASH authorized dealers (list available by consulting the website www.mash-motors.fr) have the skills and technical qualifications required to carry out maintenance and provide quality service. -
Page 5: I Main Technical Data
I - Main Technical Data Mash Fifty 50cc Euro 5 Engine Type Single cylinder 4T, Air cooling Engine Capacity 49 cc Compression Ratio 9.0 : 1 Idle speed 1450±100RPM Power max 2,8 cv à 7000 tr/min (2,1kW) Torque max. 3,1 Nm à 5000 tr/min... -
Page 6: User Instruction
II - User Instruction Preparation before use • Read the user manual carefully This user’s manual describes the standard and safety method as well as basic • Maintain and check the vehicle before using it maintenance. Read it carefully. • It is necessary to have the driving license corresponding to your vehicle and that The images and illustrations in this manual may differ from those of your vehicle, if it is insured... -
Page 7: Installation Position Of Parts
Turn the dial to reset the trip odometer to zero 9. Engine light Battery and fuse box If this indicator light comes on at the meter, it is necessary to go to an authorized Mash dealer to make a diagnosis. Front Footrests Brake pedal Drain plug Back to summary... -
Page 8: Ignition Switch
IV - Ignition switch. Headlights - Position indicator Turn the main ignition key to position , the headlights come on automatically. The ignition switch controls the ignition and lighting circuits and allows the steering to be locked. Its various positions are described below. Position Fonction Position (OFF) All circuits are off: the key can there-... -
Page 9: Control System
V - Control system Right handlebar control system Left handlebar control system Electric starter button Press this button to start the engine. Caution Dimmer switch Make sure that the vehicle is always in Press the button, using the switch allows neutral position (N or 0) and always operate the you to choose the distance of the headlights : clutch grip before starting the engine... -
Page 10: Essentials Of Driving
VI - Essentials of driving Caution Make sure that the vehicle is always in neutral position (N or 0) and always Fuel tank cap operate the clutch lever before starting the engine To open the fuel tank cap, insert the key and To start the engine turn it clockwise. - Page 11 • Always start the vehicle first and start as gently and carefully as possible. If you park the motorcycle on a slope, stop it uphill to prevent it from • If you hear any abnormal noise while driving, contact a MASH dealer to have descending.
- Page 12 Parking and using the steering lock Réglage des ressorts Place the motorcycle on level ground and put on the side stand. Il est possible de régler les ressorts des amortisseurs de la roue arrière pour de la roue arrière pour les Then turn the handlebars to the stop on the left side and position the key switch in adapter à...
-
Page 13: Controls And Setting
VII - Controls and setting Lubricant By using a high quality lubricant suitable for a four stroke engine, you will extend Running-in the life of your engine. Please select the type of high quality IPONE SAE10W40 The importance of a good running-in of the new vehicle has been stressed in the lubricant. - Page 14 Pre-ride inspection Before road, remember to check the following points. Never underestimate the importance of inspection. Element Control to be carried out Handlebar Ensure that direction is: - soft - free - no hard point in rotation Lighting Operate all lights (front light, rear light, front and rear brake light, instrument cluster lighting, turn signals) Engine oil Check the oil level...
- Page 15 First turns of the wheel with the motorcycle Braking Riders with little experience are usually content to use only the rear brake, which Caution causes premature brake wear and increases the stopping distance. In addition, this Start the engine with the transmission in neutral, the clutch engaged and the would promote locking of the rear wheel and loss of control of the vehicle.
-
Page 16: Inspection And Maintenance
Please note that the service interval is 3000 kms. Do not forget to certify them in * Brake fluid the maintenance sheets of the warranty booklet provided by your MASH dealer. To be replaced every 2 years * Brake hoses... - Page 17 LUBRICATION CHART Respect the polarity of the battery by connecting the red wire to the positive (+) terminal and the black wire to the negative (-) terminal. Improper connection will damage the charging system and the battery. Interval Every 3,000 km or 12 Every 6,000 km or 24 Note : After the first 1000 km, then every 3000 km or every 6 months, have the Element...
- Page 18 Engine oil Spark plug The longevity of the engine depends on the quality of the oil used, the frequency After driving the first 1000 km, then every 3000 km, clean the carbon deposits from of its replacement and the checking of the oil level. the spark plug using a small wire brush or spark plug cleaner.
- Page 19 Brakes Brake fluid The front brake is equipped with a disc. Check the brakes after the first 1000 km, Warning then every 3000 km. Correct operation of the brakes is essential for driving safety. Brake fluid is poisonous. If accidentally swallowed, spit it out vigorously. In Have the brake system periodically inspected by an authorized dealer.
- Page 20 It is therefore important to check its condition and clean it every 3000 km. To do this, observe the following procedure: In the event of a braking problem, contact your MASH dealer. 1. Remove the left side fairing. Brake lining wear indicator 2.
- Page 21 / fuel mixture. Prohibition and inability to adjust the injection system. Therefore, it is not possible and strictly forbidden to adjust the motorcycle’s injection system. If the EFI warning light on the meter comes on, you must go to an authorized Mash dealer in order to carry out a diagnosis.
- Page 22 Adjusting the transmission chain Tires To adjust: Check the tire pressure and their tread after the first 1000 km, then every 3000 1. Secure the motorcycle on its side stand or center stand (if equipped). km. In addition to periodic checks, get in the habit of checking tire pressure from 2.
- Page 23 If the warranty has not yet expired, contact your dealer immediately MASH dealer. before carrying out any repairs yourself. Any unauthorized manipulation during the warranty period will invalidate the services provided by the latter. (Refer to the warranty booklet provided by the authorized MASH dealer.) Back to summary...
- Page 24 Storage and cleaning 2. Remove the spark plug; press the starter to let the engine run for a few moments before reinstalling the spark plug. Prolonged non-use of the motorcycle during winter or another season requires 3. Replace the battery. Note: Do not forget to connect the positive pole before the specific operations requiring suitable materials, equipment and techniques.
- Page 25 Cleaning : Cleaners that are too acidic or aggressive are not recommended for washing the motorcycle. Particularly at the level of axles, bearings, levers, pivots, wheels and spokes. If, however, it is necessary to use it for stubborn stains, follow the instructions and application times for the product.
- Page 26 Copyright in this manual and its ultimate interpretation is ours. Under no circumstances may this document or any part of it be reproduced or cited without our prior written permission. All information, descriptions, illustrations and specifications contained herein reflect the state of our knowledge at the time of publication. However, we reserve the right to modify this manual at any time in the event of improvements or other changes.
