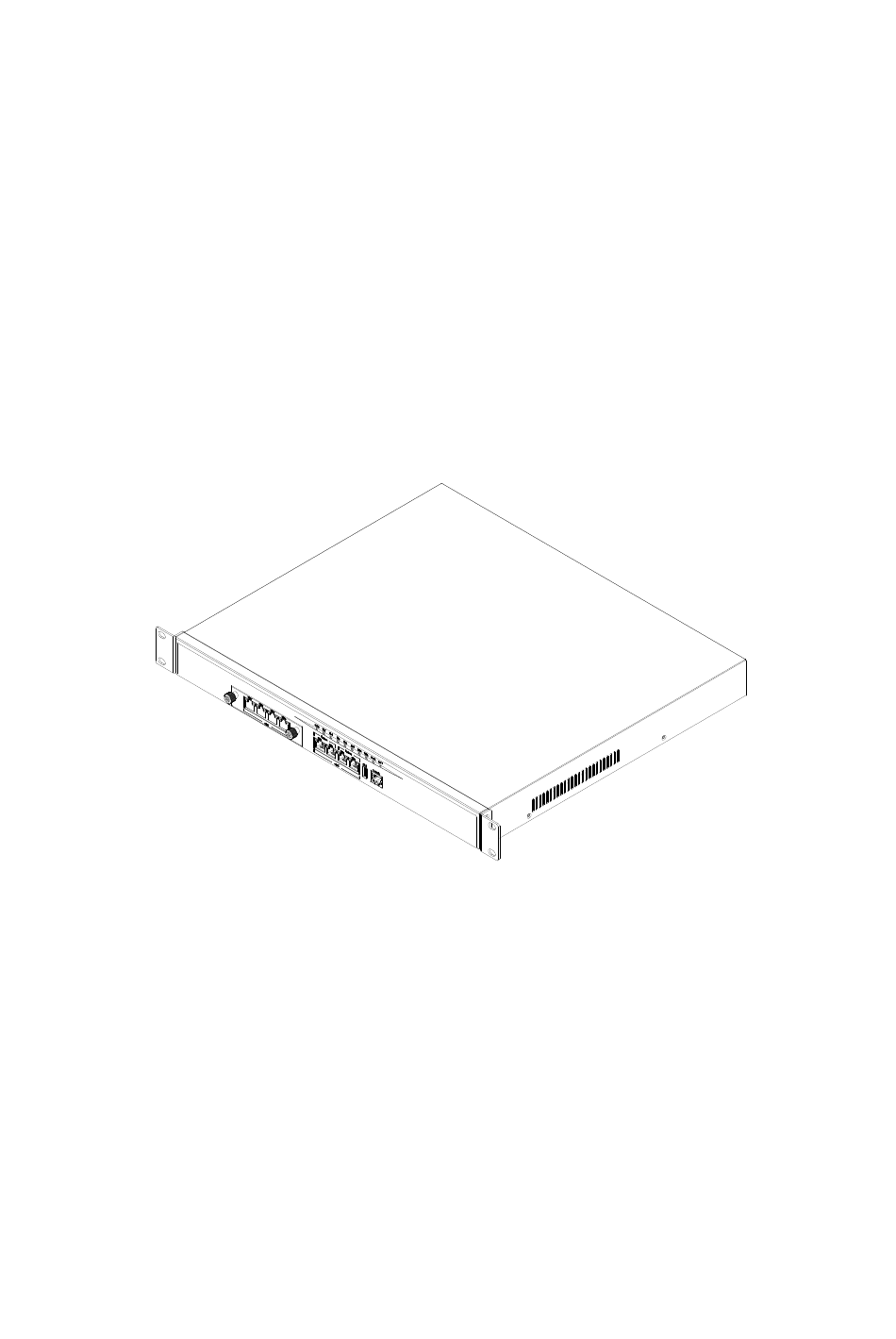

- Page 1 FWA-7108 User Manual 2009 May V1.0...
- Page 2 Copyright © 2008 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.
-
Page 3: Table Of Contents
Table of Contents Accessories ......................6 Components ......................7 Front View ........................7 Specification ......................9 Exploded view of the FWA-7108 assembly ............10 Parts description ......................11 Driver Installation ....................12 BIOS Setup ......................12... - Page 4 Safety Information Your FWA-7108 is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system • Read and follow all instructions in the documentation before you operate your system.
- Page 5 The system was dropped or the cabinet is damaged. Lithium-Ion Battery Warning CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. NO DISASSEMBLY The warranty does not apply to the products that have been disassembled by users...
-
Page 6: Accessories
Accessories Power Cord x 1 M/B Manual x 1 Driver CD x 1 Rack Mount Bracket x 1 Rack Mount Screw x 6 Rubber Foot x 5... -
Page 7: Components
Components Front View Refer to the diagram below to identify the components on this side of the system. The reset switch allows reset the system. The power LED illuminated when system been power on. The hard disk LED blinks when data is being written into or read from the hard disk drive. - Page 8 The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards, mouse devices, cameras, and hard disk drives. USB allows many devices to run simultaneously on a single computer, with some peripheral acting as additional plug-in sites or hubs. Console There is standard RS232 serial port present by RJ45 connector format.
-
Page 9: Specification
Specification System Mainboard MB835 Construction Steel Chassis Color Black Storage 3.5” SATA HDD x 1 or 2.5” SATA HDD x 2(Optional) Mounting Rack mount Dimensions 429.4(W) x 44(H) x 376(D)mm / (16.9” x 1.7” x 14.8”) Power Supply 180W Flex-ATX power supply Operating Temperature 0°C ~ 45°C (32°F ~ 113°F) chamber air Storage Temperature -20°C ~ 80°C... -
Page 10: Exploded View Of The Fwa-7108 Assembly
Exploded view of the FWA-7108 assembly... -
Page 11: Parts Description
Parts description Part NO. Description Part NO. Description 1 Top Cover 2 Riser Card Bracket 3 MB835 4 3.5” SATA HDD 5 2.5” SATA HDD 6 2.5” HDD Bracket Left 7 MI810F 8 Door of LAN Module 9 Cosmetic Panel 10 ID835 LAN Module 11 Tray of LAN Module 12 Air Duct... -
Page 12: Driver Installation
Driver Installation Please refer correspond mainboard user manual to install the driver properly. BIOS Setup Please refer correspond mainboard user manual to configure BIOS setting.
