IBASE Technology FWA6604 series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

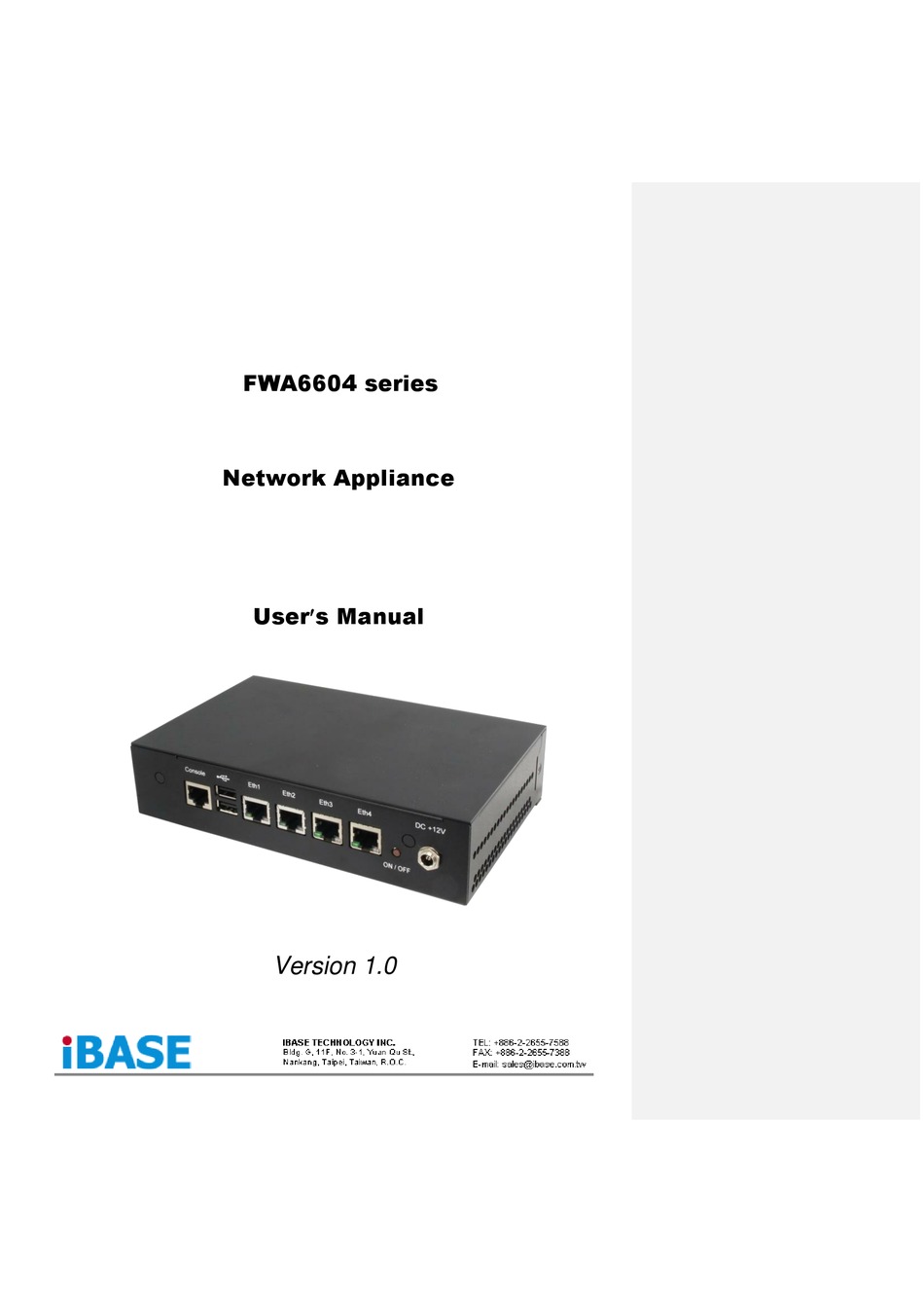

FWA6604 series
Network Appliance
Users Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWA6604 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBASE Technology FWA6604 series

Summary of Contents for IBASE Technology FWA6604 series

  • Page 1 FWA6604 series Network Appliance Users Manual Version 1.0...
  • Page 1 FWA6604 series Network Appliance Users Manual Version 1.0...

  • Page 2: Table Of Contents

    Chapter 6 Installing CompactFlash Card ..................13 Chapter 7 Installing Memory Module ....................14 Chapter 8 Installing Mini PCI-e Module ..................14 Installing 2.5” SSD ......................15 Chapter 9 Chapter 10 Lock Power Connector ....................16 FWA6604 Series User’s Manual...

  • Page 2: Table Of Contents

    Chapter 5 Opening the Chassis ......................13 Chapter 6 Installing CompactFlash Card ...................13 Chapter 7 Installing Memory Module ....................14 Chapter 8 Installing Mini PCI-e Module ....................14 Installing 2.5” SSD ......................15 Chapter 9 Chapter 10 Lock Power Connector ......................16 FWA6604 Series User’s Manual...

  • Page 3: Foreword

    Foreword Copyright© 2014 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.

  • Page 3: Foreword

    Foreword Copyright© 2014 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.
  • Page 4 CE Mark Warning This is a Class A product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. FWA6604 Series User’s Manual...
  • Page 4 CE Mark Warning This is a Class A product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. FWA6604 Series User’s Manual...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction The FWA6604 series was specifically designed for the network security & management market. Network Security Applications: • Firewall • Virtual Private Network • Proxy Server • Caching Server Network Management Applications: • Load balancing • Quality of Service •...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction The FWA6604 series was specifically designed for the network security & management market. Network Security Applications: • Firewall • Virtual Private Network • Proxy Server • Caching Server Network Management Applications: • Load balancing • Quality of Service •...

  • Page 6: Chapter 2 System Specification

    187(W) x 115.8(D) x 44(H) mm Dimensions FWA6601-1C: 0 ~ 40 ˚C (32 ~ 104 ˚F) Operation Temperature FWA6601-4C: 0 ~ 45 ˚C (32 ~ 113 ˚F) -20 ~ 70 ˚C (-4 ~ 158 ˚F) Storage Temperature FWA6604 Series User’s Manual...

  • Page 6: Chapter 2 System Specification

    187(W) x 115.8(D) x 44(H) mm FWA6601-1C: 0 ~ 40 ˚C (32 ~ 104 ˚F) Operation Temperature FWA6601-4C: 0 ~ 45 ˚C (32 ~ 113 ˚F) -20 ~ 70 ˚C (-4 ~ 158 ˚F) Storage Temperature FWA6604 Series User’s Manual...

  • Page 7: Chapter 3 Hardware Configuration

    Chapter 3 Hardware Configuration Motherboard (MB839 Series) Layout JP2: BIOS Flash Security Setting Pin # Signal Name I2S_2_TXD JP3: Clear CMOS Setting Setting Normal Clear CMOS JP4: Clear ME Setting Setting Normal Clear ME FWA6604 Series User’s Manual...

  • Page 7: Chapter 3 Hardware Configuration

    Chapter 3 Hardware Configuration Motherboard (MB839 Series) Layout JP2: BIOS Flash Security Setting Pin # Signal Name I2S_2_TXD JP3: Clear CMOS Setting Setting Normal Clear CMOS JP4: Clear ME Setting Setting Normal Clear ME FWA6604 Series User’s Manual...
  • Page 8 Pin 3 & 4 are for “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force the system to power on. When pressed again, it will force the system to power off. Pin # Signal Name Power_ON FWA6604 Series User’s Manual...
  • Page 8 Pin 3 & 4 are for “ATX Power Supply On/Off Switch” on the system that connects to the power switch on the case. When pressed, the power switch will force the system to power on. When pressed again, it will force the system to power off. Pin # Signal Name Power_ON FWA6604 Series User’s Manual...
  • Page 9 J8 : USB 2.0 Pin Header Signal Name Pin # Pin # Signal Name J10: AT_12V Connector DC-in internal connector supports +12V. Pin # Signal Name +12V Ground Remarks: Do not connect CN12 and J10 at the same time. FWA6604 Series User’s Manual...
  • Page 9 J8 : USB 2.0 Pin Header Signal Name Pin # Pin # Signal Name J10: AT_12V Connector DC-in internal connector supports +12V. Pin # Signal Name +12V Ground Remarks: Do not connect CN12 and J10 at the same time. FWA6604 Series User’s Manual...
  • Page 10 Read memory 0 x fed0e238 and check the bit 0 (Control Pin) Note: SW3 is controlled by GPIO only. CN2: Console Port (COM1) Pin # Signal Name (RS-232) RTS, Request to send DTR, Data terminal ready TXD, Transmit data Ground Ground RXD, Receive data FWA6604 Series User’s Manual...
  • Page 10 Read memory 0 x fed0e238 and check the bit 0 (Control Pin) Note: SW3 is controlled by GPIO only. CN2: Console Port (COM1) Pin # Signal Name (RS-232) RTS, Request to send DTR, Data terminal ready TXD, Transmit data Ground Ground RXD, Receive data FWA6604 Series User’s Manual...
  • Page 11 If CF card applied, please set the SATA configuration to “IDE mode” in BIOS. CN11: Mini PCI- E Connector (Half size) CN12 : DC Power Jack (+12V only) Note: CN12 and J10 cannot be connected at the same time. FWA6604 Series User’s Manual...
  • Page 11 If CF card applied, please set the SATA configuration to “IDE mode” in BIOS. CN11: Mini PCI- E Connector (Half size) CN12 : DC Power Jack (+12V only) Note: CN12 and J10 cannot be connected at the same time. FWA6604 Series User’s Manual...

  • Page 12: Chapter 4 Console Mode Information

    Follow the steps below to configure the Windows Hyper Terminal application setting: 1. For executing the Hyper Terminal, issue command “hypertrm”. 2. Customize your name for the new connection. 3. Choose the COM port on the client computer for the connection. FWA6604 Series User’s Manual...

  • Page 12: Chapter 4 Console Mode Information

    Follow the steps below to configure the Windows Hyper Terminal application setting: 1. For executing the Hyper Terminal, issue command “hypertrm”. 2. Customize your name for the new connection. 3. Choose the COM port on the client computer for the connection. FWA6604 Series User’s Manual...
  • Page 13 4. Please make the port settings to Baud rate 115200, Parity None, Data bits 8, Stop bits 1 5. Power up FWA6604 and the screen will display the BIOS information. 6. Press <Tab> key to enter BIOS setup screen in Console mode. Press <Del> key to enter BIOS setup screen in mode. FWA6604 Series User’s Manual...
  • Page 13 4. Please make the port settings to Baud rate 115200, Parity None, Data bits 8, Stop bits 1 5. Power up FWA6604 and the screen will display the BIOS information. 6. Press <Tab> key to enter BIOS setup screen in Console mode. Press <Del> key to enter BIOS setup screen in mode. FWA6604 Series User’s Manual...

  • Page 14: Chapter 5 Opening The Chassis

    Fig. 5-1 Loosen three screws on side and bottom Fig. 5-2 Remove the top cover Chapter 6 Installing CompactFlash Card Fig. 6-1 Insert Compact Flash Card Fig. 6-2 Push Compact Flash Card into the CF interface FWA6604 Series User’s Manual...

  • Page 14: Chapter 5 Opening The Chassis

    Fig. 5-1 Loosen three screws on side and bottom Fig. 5-2 Remove the top cover Chapter 6 Installing CompactFlash Card Fig. 6-1 Insert Compact Flash Card Fig. 6-2 Push Compact Flash Card into the CF interface FWA6604 Series User’s Manual...

  • Page 15: Chapter 7 Installing Memory Module

    Fig. 7-1 Insert DDR3L SO-DIMM memory module Fig. 7-2 Press down the memory module into socket Chapter 8 Installing Mini PCI-e Module Fig. 8-1 Insert Half-sized Mini PCI-e module Fig. 8-2 Push down the module into socket & tighten one M2 screw FWA6604 Series User’s Manual...

  • Page 15: Chapter 7 Installing Memory Module

    Fig. 7-1 Insert DDR3L SO-DIMM memory module Fig. 7-2 Press down the memory module into socket Chapter 8 Installing Mini PCI-e Module Fig. 8-1 Insert Half-sized Mini PCI-e module Fig. 8-2 Push down the module into socket & tighten one M2 screw FWA6604 Series User’s Manual...

  • Page 16: Chapter 9 Installing 2.5" Ssd

    Fig. 9-3 Remove two motherboard Fig. 9-4 Fix HDD bracket with two motherboard screws and screws and fasten two one Flat screw. standoffs 22-pin SATA connector 7-pin SATA connector 4-pin power connector Fig. 9-5 Plug SATA cable FWA6604 Series User’s Manual...

  • Page 16: Chapter 9 Installing 2.5" Ssd

    Fig. 9-3 Remove two motherboard Fig. 9-4 Fix HDD bracket with two motherboard screws and screws and fasten two one Flat screw. standoffs 22-pin SATA connector 7-pin SATA connector 4-pin power connector Fig. 9-5 Plug SATA cable FWA6604 Series User’s Manual...

  • Page 17: Chapter 10 Lock Power Connector

    Chapter 10 Lock Power Connector Fig. 10-1 Plug power connector into power jack FWA6604 Series User’s Manual...

  • Page 17: Chapter 10 Lock Power Connector

    Chapter 10 Lock Power Connector Fig. 10-1 Plug power connector into power jack FWA6604 Series User’s Manual...

This manual is also suitable for:

Fwa6604-1cFwa6604-4c
