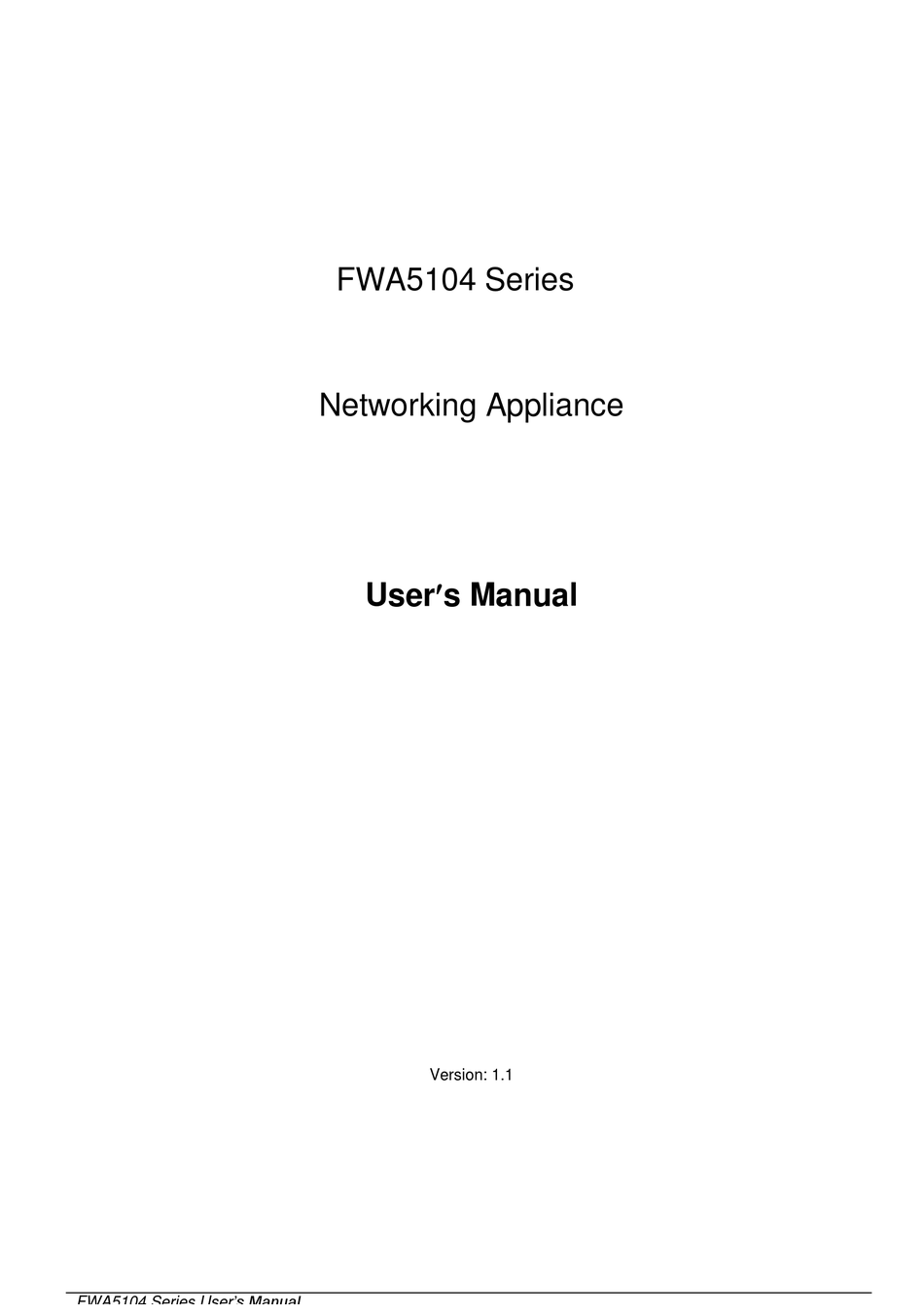

- Page 1 FWA5104 Series Networking Appliance Users Manual Version: 1.1 FWA5104 Series User’s Manual...
-
Page 2: Table Of Contents
Drivers Installation ......................21 Chapter 8 Appendix A. I/O Port Address Map ........................ 25 B. Interrupt Request Lines (IRQ) ....................26 C. Watchdog Timer Configuration (WDT) ..................27 D. Register of Ethernet Bypass Controller ............. 錯誤! 尚未定義書籤。 FWA5104 Series User’s Manual... - Page 3 Foreword Copyright© 2015 IBASE Technology INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of IBASE Technology INC.
- Page 4 CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. FWA5104 Series User’s Manual...
-
Page 5: Chapter 1 Introduction
Chapter 1 Introduction The FWA5104 series are specifically designed for the networking appliance market. Network Security Applications: • Firewall • Virtual Private Network • Proxy Server • Caching Server Network Management Applications: • Load balancing • Quality of Service • Remote Access Service... -
Page 6: System Specification
Full range 40W Adapter / 12V (Optional) Power Supply Dimensions 187.5 (W) x 116 (D) x 42 (H) mm HDD: 0 ~ 40 ˚C (32 ~ 104 ˚F) Operation Temperature SSD: 0 ~ 45 ˚C (32 ~ 113 ˚F) FWA5104 Series User’s Manual... - Page 7 -20 ~ 80 ˚C (-4 ~ 176 ˚F) Storage Temperature Operation Humidity 10 ~ 90% @ 45°C, (non-condensing) Certifications CE, FCC, LVD FWA5104 Series User’s Manual...
-
Page 8: Chapter 3 Hardware Configuration
Chapter 3 Hardware Configuration Front Panel Features System LEDs Eth1~Eth4 LEDs USB 2.0 Reset Switch Rear Panel Features Console DC-in Eth1~ Eth4 USB 3.0 On/Off Jumper and Connector Locations on MBN500 FWA5104 Series User’s Manual... - Page 9 JP1: SPI Debug Port Signal Name Pin # Pin # Signal Name SPI_CS#0 3VDUAL SPI_SO SPI0_HOLD# SPI0_WP# SPI_CLK SPI_SI J2: External SATA Power Connector (only for 2.5” SATA) Pin # Signal Name Ground Ground SW1: ATX On/Off FWA5104 Series User’s Manual...
- Page 10 Remark: It is controlled by Logical Device 7, Index port is 0x2E, Data port is 0x2F, GPIO24-27 Data Register: 0xE9 BIT4-7 CN11: DC power Jack (+12V only) Remarks: CN11 and J6 cannot be connected at the same time. FWA5104 Series User’s Manual...
- Page 11 CN1: SATA3.0 Port CN3:USB3.0 Port(x2) CN4: USB2.0 Port(x1) CN2: CFAST Connector J5: Mini PCI- E(x1) W/USB Connector CN6,CN7,CN8,CN9: Intel I211 LAN J3:SODIMM Socket CN5: MINI DP (only MBN500-4CG) LED1, LED2, LED3, LED4: LAN Port Link, Active LED FWA5104 Series User’s Manual...
-
Page 12: Chapter 4 Console Mode Information
Follow the steps below to configure the Windows Hyper Terminal application setting: 1. For executing the Hyper Terminal, issue command “hypertrm”. 2. Customize your name for the new connection. 3. Choose the COM port on the client computer for the connection. FWA5104 Series User’s Manual... - Page 13 4. Please make the port settings to Baud rate 115200, Parity None, Data bits 8, Stop bits 1 5. Power on FWA5104 and the screen will display the BIOS information. Press <Tab> key to enter BIOS setup screen in Console mode. Press <Del> key to enter BIOS setup screen in mode. FWA5104 Series User’s Manual...
-
Page 14: Chapter 5 Hardware Installation
Hardware Installation Open the Chassis Fig. 5-1 Loosen screws and remove the cover Installing DDR3 Memory Fig. 5-2 Insert and press down DDR3L SO-DIMM memory module Installing Cfast Card Fig. 5-3 Insert and push Compact Flash Card FWA5104 Series User’s Manual... - Page 15 Installing Mini PCIe Module Fig. 5-4 Insert and push down Half-sized Mini PCI-e module Installing 2.5” HDD/SSD Fig. 5-5 Put 2.5” HDD / SSD onto the bracket and fasten HDD on bracket with four M3 Flat screws FWA5104 Series User’s Manual...
-
Page 16: Chapter 6 Bios Information
Access Level Administrator F2: Previous Values F3: Optimized Default F4: Save ESC: Exit System Date Set the Date. Use Tab to switch between Data elements. System Time Set the Time. Use Tab to switch between Time elements. FWA5104 Series User’s Manual... -
Page 17: Advanced Settings
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep State Select ACPI sleep state the system will enter, when the SUSPEND button is pressed. FWA5104 Series User’s Manual... - Page 18 NX Mode Enable/disable No-execute page protection function. SVM Mode Enable/disable CPU Virtualization. CPB Mode Enable/disable CPB. Core Leveling Mode Change the number of cores in the system. Node 0 Information View memory information related to Node 0. FWA5104 Series User’s Manual...
- Page 19 This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. USB MASS Storage Driver Support Enable/Disable USB Mass Storage Driver Support. USB Transfer time-out The time-out value for Control, Bulk, and Interrupt transfers. Device reset time-out USB mass storage device start unit command time-out. FWA5104 Series User’s Manual...
- Page 20 Enter: Select Windows Emergency Management Services (EMS) Change Field Console Redirection [Disabled] F1: General Help ► Console Redirection Settings F2: Previous Values F3: Optimized Default F4: Save ESC: Exit Console Redirection Console Redirection Enable or Disable FWA5104 Series User’s Manual...
- Page 21 F3: Optimized Default F4: Save ESC: Exit OnChip SATA Channel Enabled / Disabled Serial ATA. OnChip SATA Type Select OnChip SATA Type. OnChip IDE mode Sata IDE Controller Mode. SATA IDE Combined Mode SATA IDE Controller Combined Mode FWA5104 Series User’s Manual...
- Page 22 UPON REQUEST – GA20 can be disabled using BIOS services. ALWAYS – do not allow disabling GA20 ; this option is useful when any RT code is executed above 1MB Option ROM Messages Set display mode for Option ROM FWA5104 Series User’s Manual...
-
Page 23: Administrator Password
Maximum length ↑↓ Select Item Enter: Select Change Field Administrator Password F1: General Help User Password F2: Previous Values F3: Optimized Default F4: Save ESC: Exit Administrator Password Set Setup Administrator Password. User Password Set User Password. FWA5104 Series User’s Manual... - Page 24 Discard Changes done so far to any of the setup options. Restore Defaults Restore/Load Defaults values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. FWA5104 Series User’s Manual...
-
Page 25: Chapter 7 Drivers Installation
After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation. Chipset Software Installation Utility 1. In the Driver folder, execute the CDGuide file. Click AMD, then AMD Steppe Eagle Drivers. 2. Click AMD Steppe Eagle Graphics Drivers. FWA5104 Series User’s Manual... - Page 26 3. Select the language you would like to be displayed and click Next. 4. Select Express and the installation location and click Next. FWA5104 Series User’s Manual...
- Page 27 5. Click Accept to accept the End User License Agreement. 6. To reboot the system, click Yes. FWA5104 Series User’s Manual...
- Page 28 4. Click the checkbox for Drivers in the Setup Options screen to select it and click Next to continue. 5. When the Ready to Install the Program screen appears, click Install to continue. 6. When InstallShield Wizard is complete, click Finish. FWA5104 Series User’s Manual...
-
Page 29: Chapter 8 Appendix
00A2h-00BFh Motherboard resources 00C0h-000Dh Direct memory access controller 00F0h-00FFh Numeric data processor 02F8h-02FFh Communications Port (COM2) 03B0h-03BBh PCI Express standard Root Port 03B8h-03DFh PCI bus 03F8h-03FFh Communications Port (COM1) 0CD8h-0CDFh Motherboard resources F000h-F00Fh AMD SATA Controller FWA5104 Series User’s Manual... -
Page 30: Interrupt Request Lines (Irq)
Standard Enhanced PCI to USB Host Controller IRQ 18 Standard Enhanced PCI to USB Host Controller IRQ 19 AMD SATA Controller IRQ81 Microsoft ACPI-Compliant System IRQ82 Microsoft ACPI-Compliant System IRQ83 Microsoft ACPI-Compliant System IRQ84 Microsoft ACPI-Compliant System FWA5104 Series User’s Manual... -
Page 31: Watchdog Timer Configuration (Wdt)
#define NCT5523D_DATA_PORT (NCT5523D_BASE+1) //--------------------------------------------------------------------------- #define NCT5523D_REG_LD 0x07 //--------------------------------------------------------------------------- #define NCT5523D_UNLOCK 0x87 #define NCT5523D_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_NCT5523D(void); void Set_NCT5523D_LD( unsigned char); void Set_NCT5523D_Reg( unsigned char, unsigned char); unsigned char Get_NCT5523D_Reg( unsigned char); //--------------------------------------------------------------------------- #endif //__NCT5523D_H FWA5104 Series User’s Manual... - Page 32 Nuvoton NCT5523D, program abort.\n"); return(1); WDTInitial(); WDTEnable(10); WDTDisable(); return 0; //--------------------------------------------------------------------------- void WDTInitial(void) unsigned char bBuf; Set_NCT5523D_LD(0x08); //switch to logic device 8 bBuf = Get_NCT5523D_Reg(0x30); bBuf &= (~0x01); Set_NCT5523D_Reg(0x30, bBuf); //Enable WDTO //--------------------------------------------------------------------------- FWA5104 Series User’s Manual...
- Page 33 Set_NCT5523D_Reg(0x30, 0x01); //enable timer bBuf = Get_NCT5523D_Reg(0xF0); bBuf &= (~0x08); Set_NCT5523D_Reg(0xF0, bBuf); //count mode is second Set_NCT5523D_Reg(0xF1, NewInterval); //set timer //--------------------------------------------------------------------------- void WDTDisable(void) Set_NCT5523D_LD(0x08); //switch to logic device 8 Set_NCT5523D_Reg(0xF1, 0x00); //clear watchdog timer Set_NCT5523D_Reg(0x30, 0x00); //watchdog disabled //--------------------------------------------------------------------------- FWA5104 Series User’s Manual...
