Addvent AVX100EZS Installation And Wiring Instructions page 6

AVX100EZT & AVX100EZH

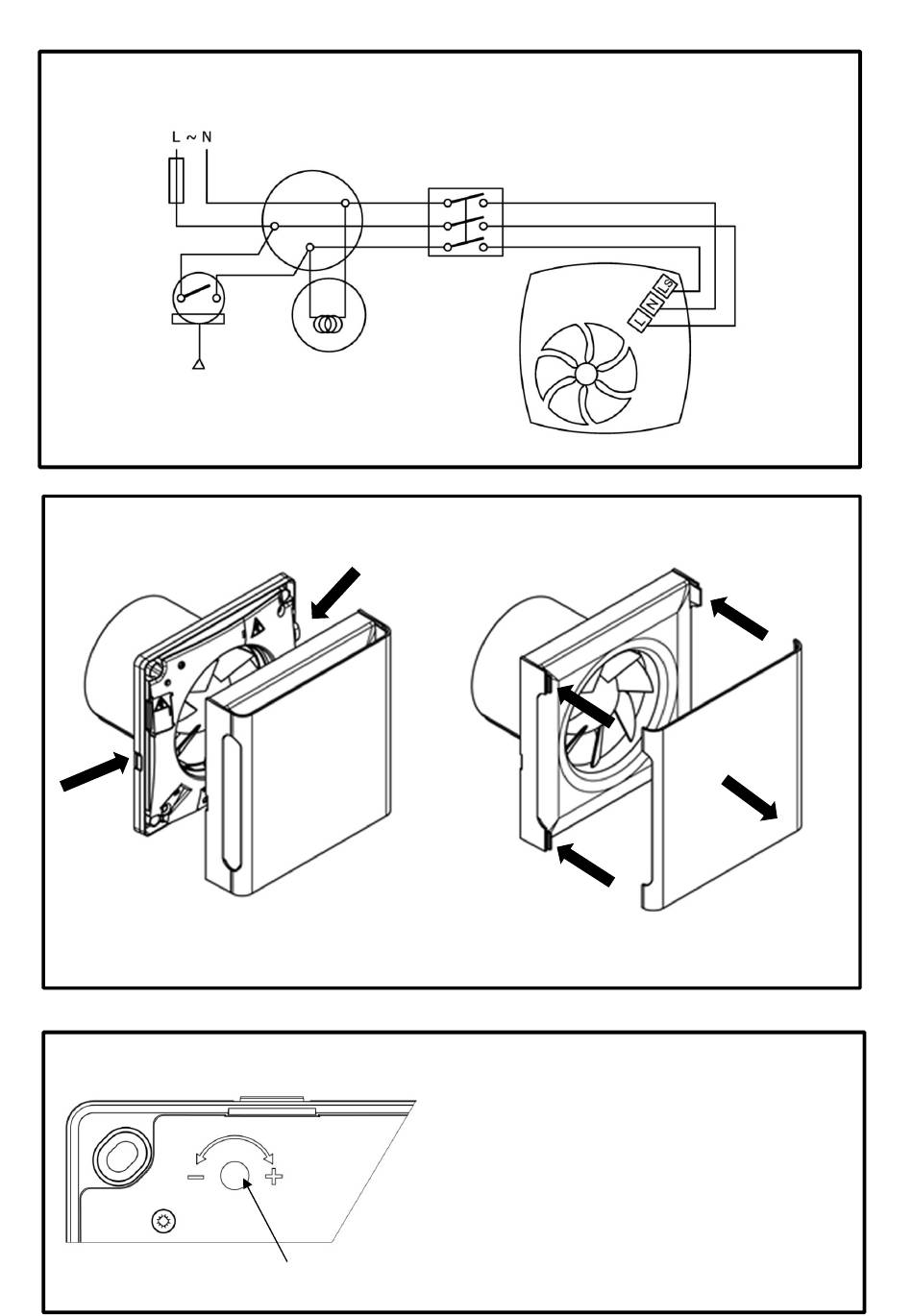

Fig.3:
220-240V ~ 50Hz
3 AMP
MAX
Fig.4: – Grille removal for cable entry
and PCB control access.
1
To remove the inner & outer cover, push both
clips on each side (1) to release.
Fig.5: AVX100EZT
N
L
LS
1
Timer Adjustment
To remove the outer cover, Carefully unclick
the cover from the 4 clips as shown below.(2)
3
3
To Refit the cover, line up the 4 clips on the
rear of the cover and gently push until you
hear a "Click" (3)
Timer Adjustment:
To REDUCE the operating time, use a small
screwdriver to turn the adjuster ANTI-CLOCKWISE.
To INCREASE the operating time, use a small
screwdriver to turn the adjuster CLOCKWISE.
3
2
