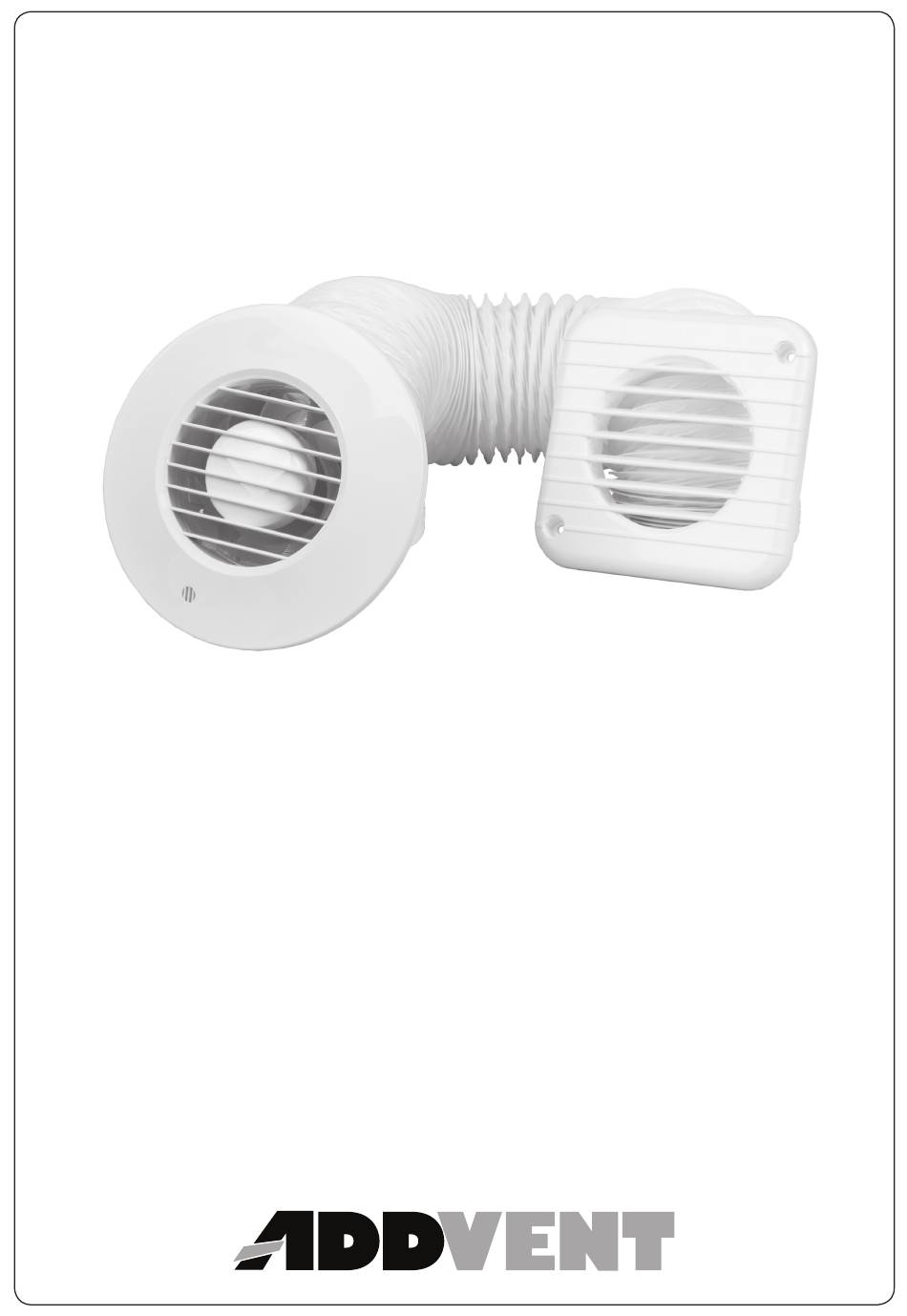

Addvent AVX100WIDT
In Duct Timer Fan
Shower Kit
INSTALLATION AND MAINTENANCE
INSTRUCTIONS
• Do read the entire instruction leaflet before commencing installation.
• Do install each fan with a means for disconnection in all poles in the fixed wiring.
• Do make sure the mains supply is switched off before attempting to make electrical connections or carry out any maintenance
or cleaning.
Please leave this leaflet with the fan for the benefit of the user.

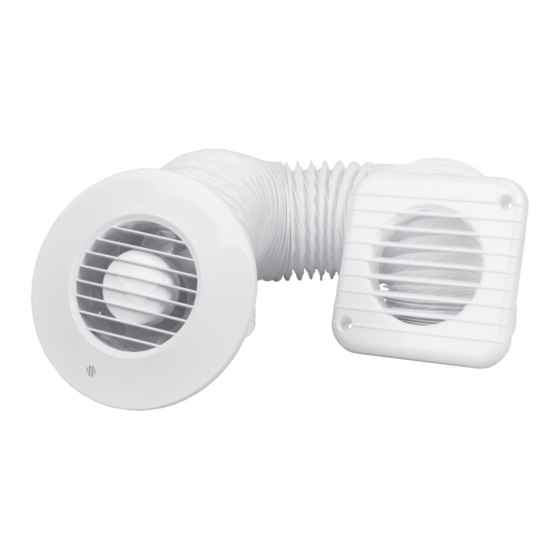

Components:
1. Whisper Silent Shower Fan
2. 3m flexible 4" / 100mm ducting
3. External fixed louvre grille with 2 x invisible screw covers
4. 5 x wall plugs
5. 5 x screws
6. 1 x self-adhesive foam strip for duct connection (if required)
UK customers:
If you have any queries before or after installing this product call the Addvent Technical Hotline 0117 923 5375.
Our engineers are there to help you during normal office hours. Or you can fax at all other times on 0117 923 5374.
Customers outside the UK should contact your local Addvent distributor.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Addvent AVX100WIDT
Summary of Contents for Addvent AVX100WIDT
- Page 1 UK customers: If you have any queries before or after installing this product call the Addvent Technical Hotline 0117 923 5375. Our engineers are there to help you during normal office hours. Or you can fax at all other times on 0117 923 5374.
- Page 2 Cleaning and maintenance of the appliance shall not be made by children. The Addvent AVX100WIDT is an in-line axial fan designed to extract damp air from your room to the outside through the loft / ceiling space. The fan has the following features: Two speed extraction (Selectable at installation) ...
- Page 3 Back plate fixing positions Quickfix clamps...
- Page 4 Front Cover Removal Depress Cover Latch with tool & remove Cover Minimum 30 seconds Maximum 30 minutes Factory setting: Timer 15 minutes...
- Page 5 Wiring and setting up Where to locate the fan. Locate the fan where there is access from the ceiling for the ducting through the roof space and out through the soffit see Fig. A for general installation arrangement. At least 110mm from the edges of the mounting surface to the centre of the hole.
- Page 6 Installation For ceiling mounting the fan, you will also need: A 100mm diameter prepared hole. A 100mm diameter prepared hole for the external grille, ideally positioned to allow condensation to run away from the first bend in the duct towards the external grille. ...
- Page 7 Mount the external grille in the soffit 11. Align the grille centrally and squarely over the 100mm hole in the soffit and mark the positions of the two screw holes. Drill the two holes and insert suitable fixings. 12. Attach the external grille to the outer end of the flexible duct. Use the self-adhesive foam strip to seal the duct to the grille.
- Page 8 Please recycle where facilities exist. Check with your local authority or YEAR retailer for recycling advice. EXCHANGE WARRANTY Telephone: 0117 923 5375 Fax: 0117 923 5374 Unit 12, Access 18, Bristol BS11 8HT www.addvent.co.uk 08/100024/0 ISSUE 1/0418...
