AVX100_ELEGANCEinstructions
12/3/09

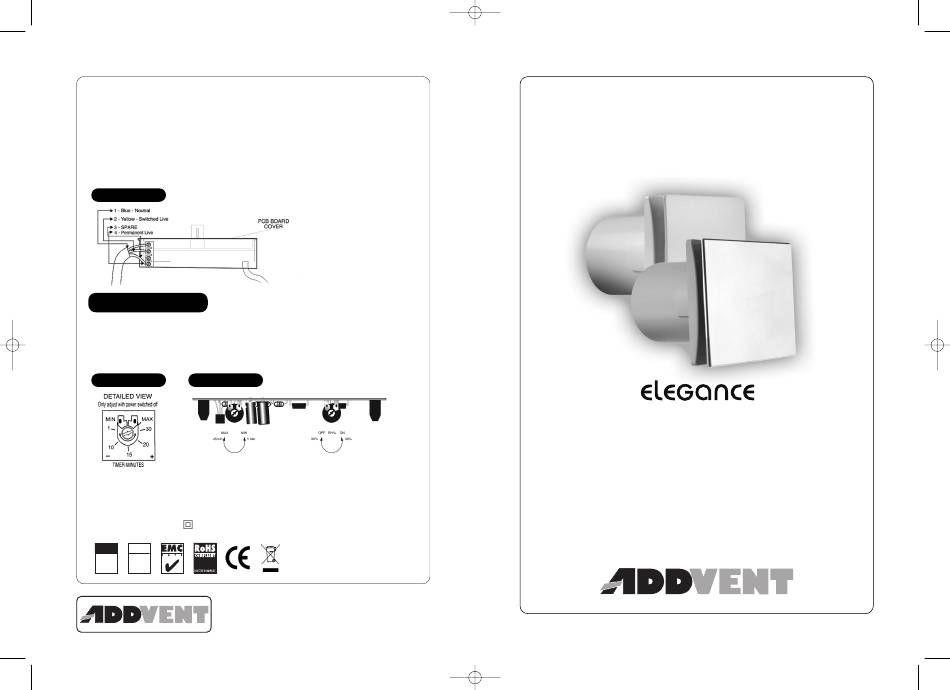

Electrical Connections: Electronic Humidity Model – see Figure 3 below.
Connect to electrical supply as shown in figure 3.
For the fan to operate as a normal time delay unit with humidity over-ride, ie, when connected
with a switched live coming from the light switch into the fan, the fan will operate when the
light is switched on, and switch off after about 20 seconds to 20 minutes (timer is pre-set for
the minimum). However should the humidity in the room reach about 75% – which will
happen if the shower is run or the bath filled with hot water – the fan will switch on and keep
running until the humidity has been reduced to a normal level, about 65%.
Figure 3
Electrical connection: Humidity model with Timer

Adjustments

Timer and humidity adjustment.
For the Timer model please see figure 4 below. For the Humidity model please see figure 5
below. Minimum and maximum values are shown on the diagrams.
WARNING: Only adjust with power switched off.
Figure 4
Figure 5
Specification
All AVX100 Elegance [4 inch] models:
220-240V ~50Hz; 20W
; Maximum operating temperature 4O°C; IP24.
FIVE YEARS
IP
EXCHANGE
5
24
14:17
Page 1
Time delay and override operation
Terminal 1 = Neutral supply
Terminal 2 = switch LIVE supply
Terminal 3 = spare
Terminal 4 = permanent supply
Timer
Humidity
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your local authority or retailer for recycling advice
Telephone: 0117 938 6400
Fax: 0117 938 6401
Victoria Road, Avonmouth, Bristol BS11 9DB www.addvent.co.uk
ISSUE 1: 0309

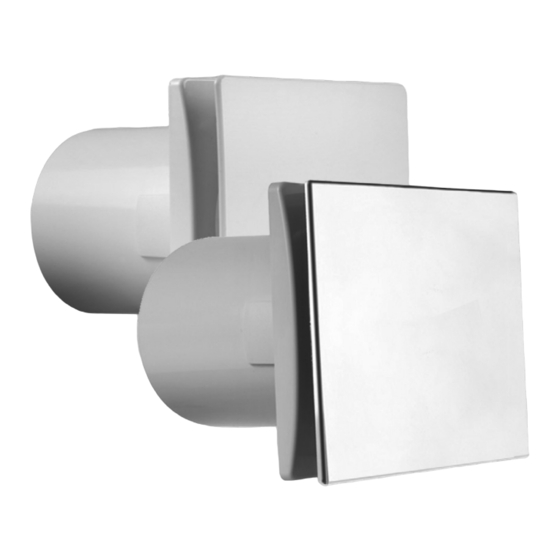

Operating Instructions for
AVX100ES, AVX100ET, AVX100EH
and AVX100ESBA, AVX100ETBA,
AVX100EHBA Elegance Fans

IMPORTANT SAFEGUARDS

WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF THIS
PRODUCT, CONSULT A COMPETENT ELECTRICIAN.
