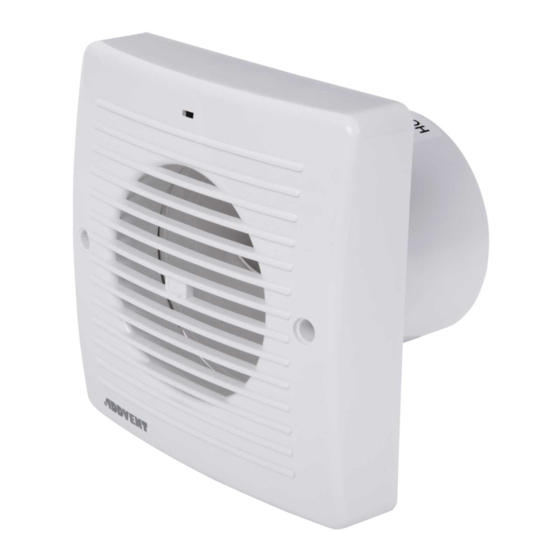

Addvent AVX100QS Operating Instructions

:

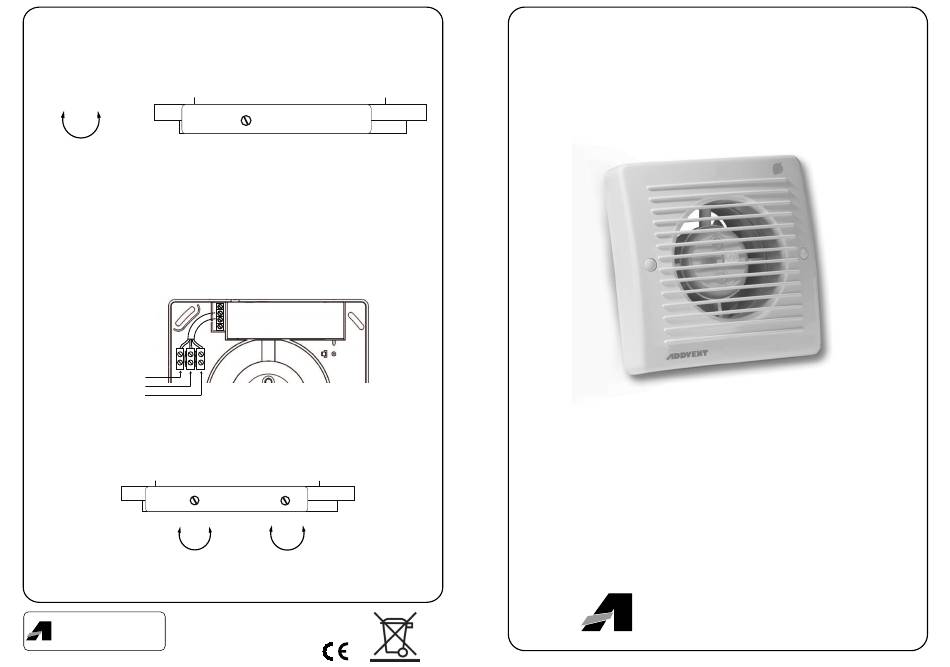

Setting the RUN ON time
The length of time the fan continues to run after the Switched Live is turned off can be adjusted by the
timer adjuster on the top of the fan.
WARNING: ENSURE THE POWER TO THE FAN IS TURNED OFF BEFORE MAKING ADJUSTMENTS
Insert a small flat blade screwdriver into the adjuster and rotate clockwise to reduce the run time or
anti clockwise to increase it. Min approx 1 minute, Max approx 30 mins.
MIN MAX
NEUTRAL
1
IN
1 min
30 min
SWITCH
2
LIVE
PERMANENT
3
LIVE
8. Wiring of Humidity Model (Time Delay with Humidity Sensor Over-ride)
This version of the fan can be utilised in two ways:
1. Humidity only sensing - Requires Live and Neutral. The fan will only switch on when it detects
that the humidity level in the room is higher than the set level, it will run until the humidity level
has dropped below the set level and stop. For the fan to operate in this way connect the Live and
Neutral as Diagram 1 - Standard and Pullcord models.
2. Humidity sensing with manual activation - Requires Neutral, Switched Live and Permanent Live.
Not only will the fan activate when it detects the humidity level in the room has risen above the
set level, it can be manually switched on using the Switched Live. The Switched Live can be
connected to either a remote switch such as a ceiling mounted pullcord switch or to the lighting
circuit so the fan is switched on when the lights are switched on.
Wiring
Humidity
Models
NEUTRAL
SWITCHED LIVE
PERMANENT LIVE
Setting RUN ON time and Humidity set Level:
The run on time is how long the fan continues to run for after the pullcord or remote switch is turned
off. To reduce the time turn the adjuster anti-clockwise (min approx 1 min) to increase it, turn the
adjuster clockwise (max approx 40 mins). The humidity set level is the amount of humidity present
before the fan will switch on. To raise the level before switching turn the adjuster clockwise, to lower
the level turn the adjuster anti-clockwise.
NEUTRAL - TIMER +
1
IN MINUTES
1
SWITCH
45
2
LIVE
10
30
PERMANENT
15
3 20
LIVE
MAX
45min
Telephone: 0117 923 5375 Fax: 0117 923 5374
DDVENT
Victoria Road Avonmouth Bristol BS11 9DB
077571 08/12
- TIMER +
MINUTES
1 30
10 20
15
RELATIVE HUMIDITY
OFF % ON
98 40
70
90 50
80 60
OFF RH% ON
MIN
90% 40%
1 min
OPERATING INSTRUCTIONS FOR
AVX100QS AVX100QP
AVX100QT AVX100QH
WHISPER QUIET FANS
IMPORTANT SAFEGUARDS
WHEN USING ANY ELECTRICAL APPLIANCE, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED.
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE REFERENCE.
IF IN ANY DOUBT ABOUT THE INSTALLATION OR USE OF
THIS PRODUCT, CONSULT A COMPETENT ELECTRICIAN.
DDVENT
