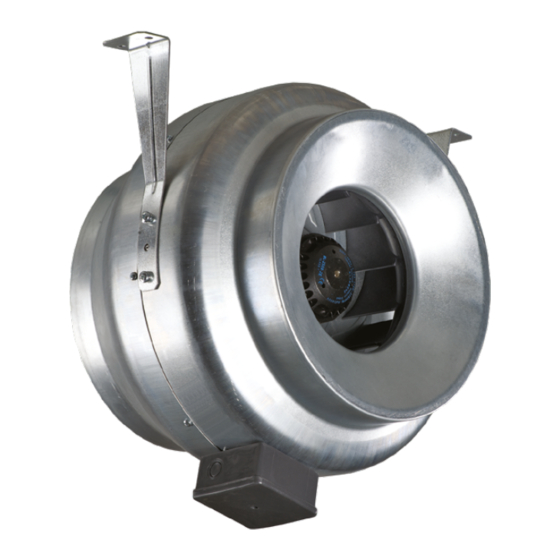

- Page 1 Centrifugal inline fan AVIMI100 AVIMI125 AVIMI150 AVIMI200 AVIMI250 AVIMI315 USER’S MANUAL...
-
Page 2: Table Of Contents
aViMi CONTENTS Contents ......................................2 Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up .................................. 6 Connection to power mains ..............................7 Technical maintenance ................................ - Page 3 aViMi • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment. cable. Do not put any foreign objects on the power cable.
-
Page 4: Purpose
aViMi PURPOSE The AVIMI centrifugal fans are designed for ventilation of domestic, public and manufacturing premises heated during winter. The transported air temperature must be within the limits stated in the «Technical data» section. THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. -
Page 5: Technical Data
Ingress protection rating against access to hazardous parts and water ingress is IPX4. Voltage [V] at Noise level at 3 m Transported air Fan model Power [W] Current [A] Max air flow [m RPM [min 50 Hz [dBA] temperature [°С] AVIMI100 0.32 2820 AVIMI125 0.34 2820 AVIMI150 0.33 2770 1~230 AVIMI200 0.69... -
Page 6: Design And Operating Principle
aViMi DESIGN AND OPERATING PRINCIPLE The fan consists of the casing 1, the electric motor attached to the inner fixing bracket 4, the cover 2 that is fixed to the casing with screws 3 (the casing spigot diameter and the cover diameter are equal to the connected air duct diameter), the terminal box 5 that incorporates a terminal block and a capacitor and enables connection of the fan to single-phase power mains. -
Page 7: Connection To Power Mains
aViMi CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL. -
Page 8: Technical Maintenance
aViMi TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! The technical maintenance includes periodic cleaning of the surfaces from accumulated dust and dirt. Use a soft dry brush or a vacuum cleaner to remove dust. The impeller blades require thorough cleaning once in 6 months. To do this, unscrew the self-tapping screws 3 and remove the cover 2 (Fig. -
Page 9: Manufacturer's Warranty
aViMi MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance of the transportation, storage, installation, and operation regulations. - Page 10 aViMi...
-
Page 11: Certificate Of Acceptance
aViMi Certificate of acceptance Unit Type Centrifugal inline fan Model AVIMI__________ Serial Number Manufacture Date Quality Inspector’s Stamp Seller information Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 12 Addvent05-1EN-08...
