Enhance Zone 1 Fan Range

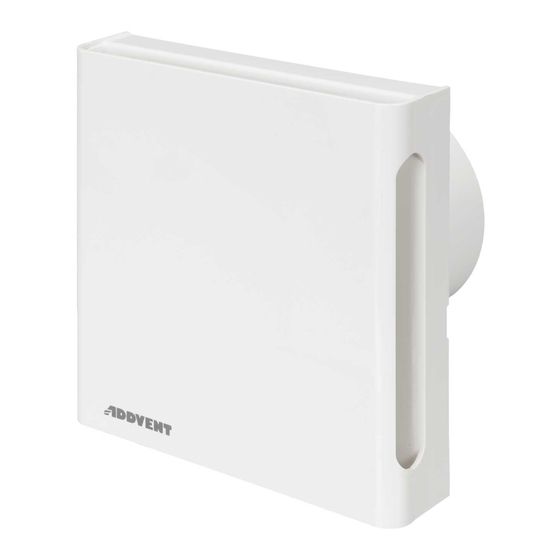

AVX100EZS Enhance Zone 1 Fan
AVX100EZT Enhance Zone 1 Fan
AVX100EZH Enhance Zone 1 Fan
INSTALLATION AND
WIRING INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS IN
CONJUNCTION WITH THE ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Addvent AVX100EZS
Summary of Contents for Addvent AVX100EZS
- Page 1 Enhance Zone 1 Fan Range AVX100EZS Enhance Zone 1 Fan AVX100EZT Enhance Zone 1 Fan AVX100EZH Enhance Zone 1 Fan INSTALLATION AND WIRING INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS.
- Page 2 E. The Fan should only be used in conjunction with the appropriate Addvent products. F. The Fan should only be used in conjunction with fixed wiring. G. When the Fan is used to remove air from a room containing a fuel- burning appliance, ensure that the air replacement is adequate for both the fan and the fuel-burning appliance.
- Page 3 L. Stationary appliances not fitted with means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under over voltage category III, the instructions state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. M.
- Page 4 See Fig 1, 2, 3, 4, 5, & 6 AVX100EZS – Single speed fan. Controlled by remote switch (e.g light switch or auto sensor) Fig.1. AVX100EZT – Single speed fan with overrun Timer* - The fan can be wired to a lighting circuit switch.
- Page 5 1. At intervals appropriate to the installation, the fan should be inspected and cleaned to ensure there is no build-up of dirt or other deposits. 2. Wipe the inlets and front face with a damp cloth until clean. The fan has sealed for life bearings, which do not require lubrication. Fig.1: AVX100EZS 220-240V ~ 50Hz 3 AMP Fig.2: AVX100EZT &...
- Page 6 AVX100EZT & AVX100EZH Fig.3: 220-240V ~ 50Hz 3 AMP Fig.4: – Grille removal for cable entry To remove the outer cover, Carefully unclick and PCB control access. the cover from the 4 clips as shown below.(2) To Refit the cover, line up the 4 clips on the To remove the inner &...
- Page 7 AVX100EZH Fig.6: Humidity Adjustment To INCREASE SET POINT, turn the adjuster CLOCKWISE. This makes the controller LESS sensitive. To REDUCE SET POINT, turn the adjuster ANTI-CLOCKWISE. This makes the controller MORE sensitive. Humidity Adjustment Timer Adjustment To REDUCE the operating time, use a small screwdriver to turn the adjuster ANTI-CLOCKWISE.
- Page 8 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. IPX5 Telephone: 0117 938 6402 Email: Addvent.Technical@adivision.co.uk Unit 12, Access 18, Bristol, BS11 8HT ISSUE 01/11/21 www.addvent.co.uk...
