Argo MILO PLUS Operating Instructions Manual page 36

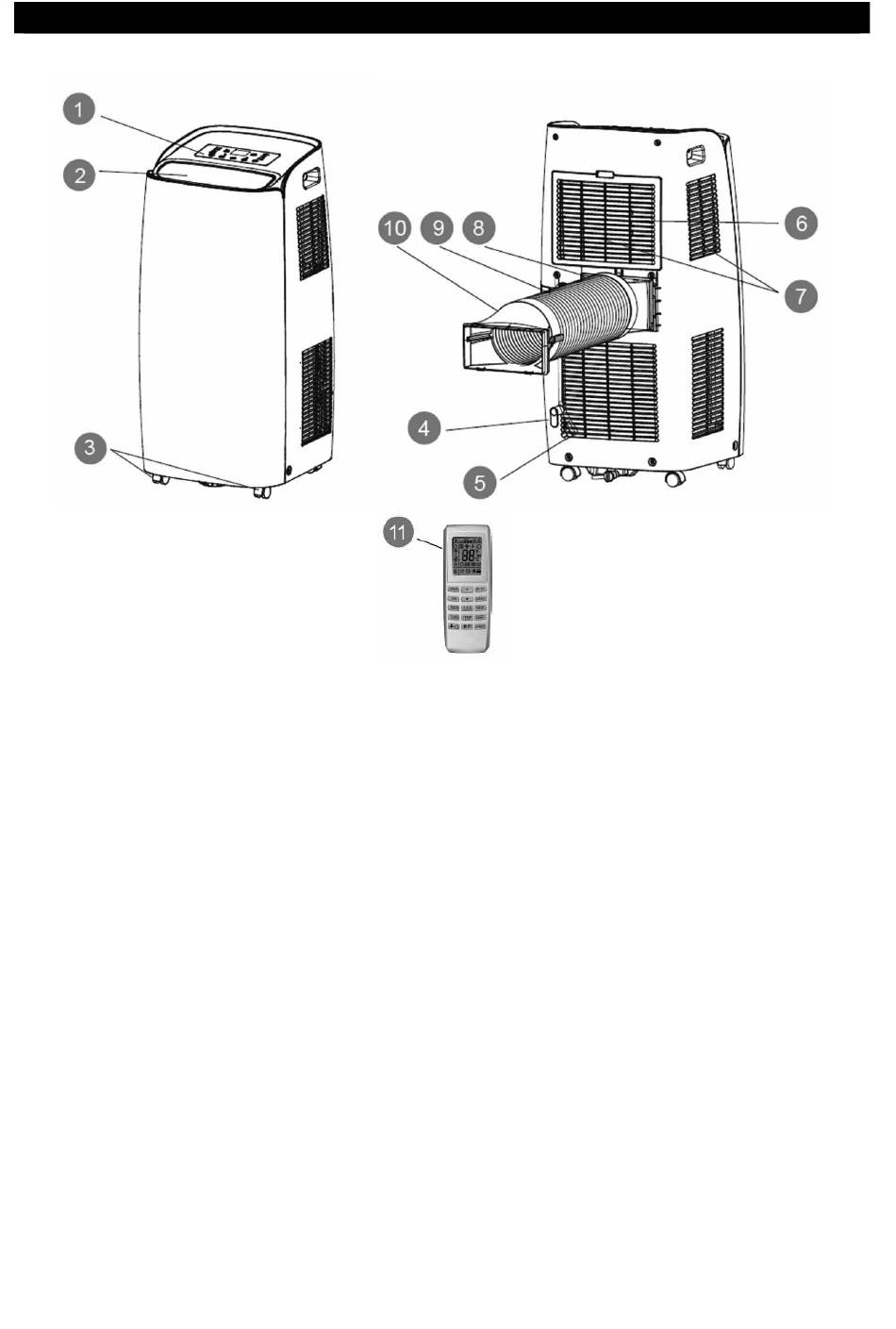

FRONT VIEW
1) CONTROL PANEL AND FUNCTION BUTTONS
WITHOUT REMOTE CONTROL
2) VERTICAL FINS AND AIR INTAKE
3) WHEELS
4) CORD CABLE CLAMP
5) POWER CORD
6) AIR FILTER
Min/max operating limits (internal temperature)
Cooling: 16 °C DB / 35 °C DB
Dehumidification: 16 °C DB / 35 °C DB
Cooling mode room temperature adjustment range: 16 °C DB / 30 °C DB
V 11/19
DESCRIZIONE DELL'APPARECCHIO
REAR VIEW
7) AIR FILTER
8) AIR EXPULSION HOSE
9) JOINT
10) END FITTING FOR WINDOW
11) REMOTE CONTROL
36
