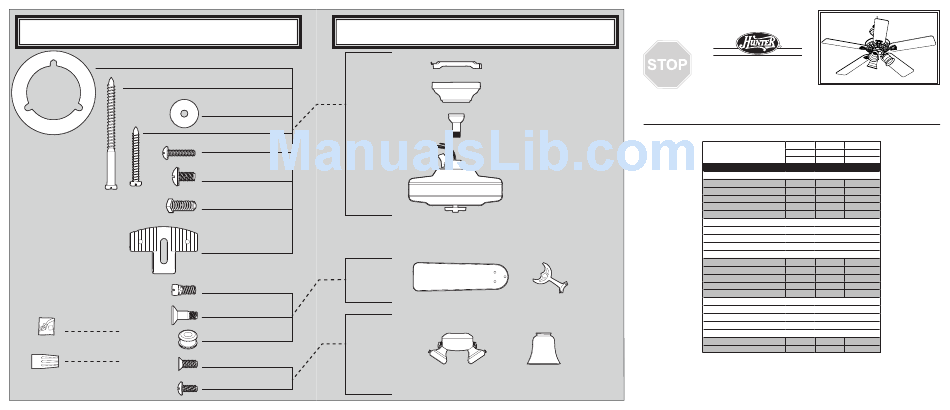

Hunter 23488 Parts Manual

Hardware
(Drawn to Scale)
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 2
x 11
x 16
Balancing
x 1
Kit
x 16
Wire
x 4
Connector
x 3
x 3
Low Profile
Washer
3" Wood Screw
Hanger
Flat Washer
Bracket
Assembly
1.5" Wood Screw
Locking Screw
Canopy Screw
Set Screw
Mounting
Isolator
Blade
Assembly
Screw, Blade
Iron Armature
Screw, Blade
Assembly
Blade
Grommet
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Fan Parts
(Not Drawn to Scale)
PARTS GUIDE
PARTS GUIDE
R
SINCE 1886
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Model # 23488

Parts List

Asm. Dwg. # 97696-01
Finish New Bronze
Item Name Qnty Part #
* Hanging System Kit
Hanger Bracket Assembly 1 74090-02
Hanger Ball / Downrod Assembly 1 74229-03
Canopy 1 92697-01
Low Profile Washer 1 73788-01
Mounting Isolator 2 74135-01
Setscrew
Canopy Screw
Wood Screw
Flat Washer
* Locking Screw
Switch/Housing Assembly 1 96946-30
Blade Iron Set 1 93451-05
Blade Set 1 75539-81
Screw, Blade Iron Armature 11 63755-05
Hardware Kit 1 97696-00-860
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit 1 07570-01
Globe/Shade 3 84884-12
Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com •
23489
97696-02
Antique Pewter
Part #
74090-02
74229-03
92697-01
73788-01
74135-01
96946-14
93451-05
75539-64
63755-05
97696-00-861
07570-01
84884-07
98000-01-799 05-08-2008 • 2008
©
