FLIR Scout Bi-Ocular Quick Start Manual

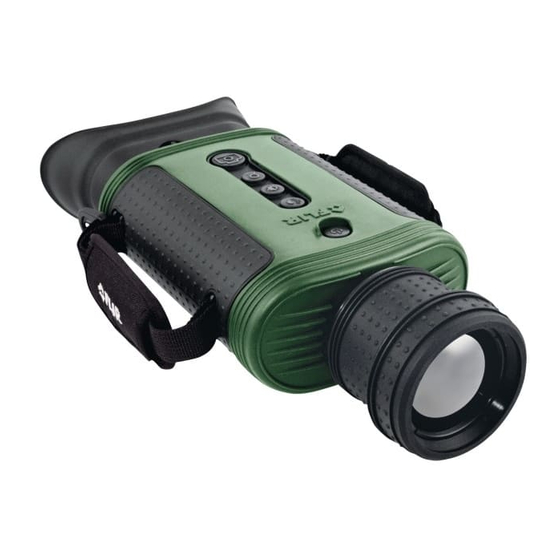

Scout Bi-Ocular Quick Start Guide
Manual Focus
Ring
Power
Power Button – The Scout Bi-Ocular camera has 3 power modes:
On, Off, and Standby.
• On - Takes approximately 90 seconds (during bootup there is a
fast-flashing red LED on the eyepiece display).
• Standby - After the camera is on, pressing the Power button will
toggle the camera between On and Standby mode. (In Standby
there is a slow-flashing red LED on the eyepiece display.)
• Off - Push and hold the power button for 8 sec. to turn off.
Capture Button – Takes snapshots (press and release) or
video clips (press and hold 3 seconds to start video recording).
The files are stored on the integrated SD card.
Display Brightness – Toggles through five brightness settings.
White/Black Hot/Instalert™ – Toggles through the video
modes: White Hot, hotter items appear as white or light grey;
Black Hot, hotter items appear as black or dark grey; Instalert™
(I1 - I4), the hottest objects in the scene are highlighted in red.
Zoom –When enabled, causes the image to zoom to 2X.
Interocular Adjustment – The interocular adjustment lever allows
you to adjust the distance between the two eyepiece displays for
the most comfortable viewing.
This document is controlled to FLIR Technology Level EAR 1. The information contained in this document is proprietary and/or restricted and
pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). This document and data disclosed herein or
herewith is not to be reproduced, used, or disclosed in whole or in part to anyone without the written permission of FLIR Systems, Inc. Diversion
contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons,
parties, or uses otherwise prohibited.
431-BTS0-00-QS Rev 120 Sheet 1
www.netzerotools.com
Display
Brightness
www.netzerotools.com

Zoom

White hot/
Black hot/
Instalert™
Capture
Eyepiece
Interocular
Adjustment
