Shure DuraPlex DH5 - Omnidirectional Headset Manual

General Description

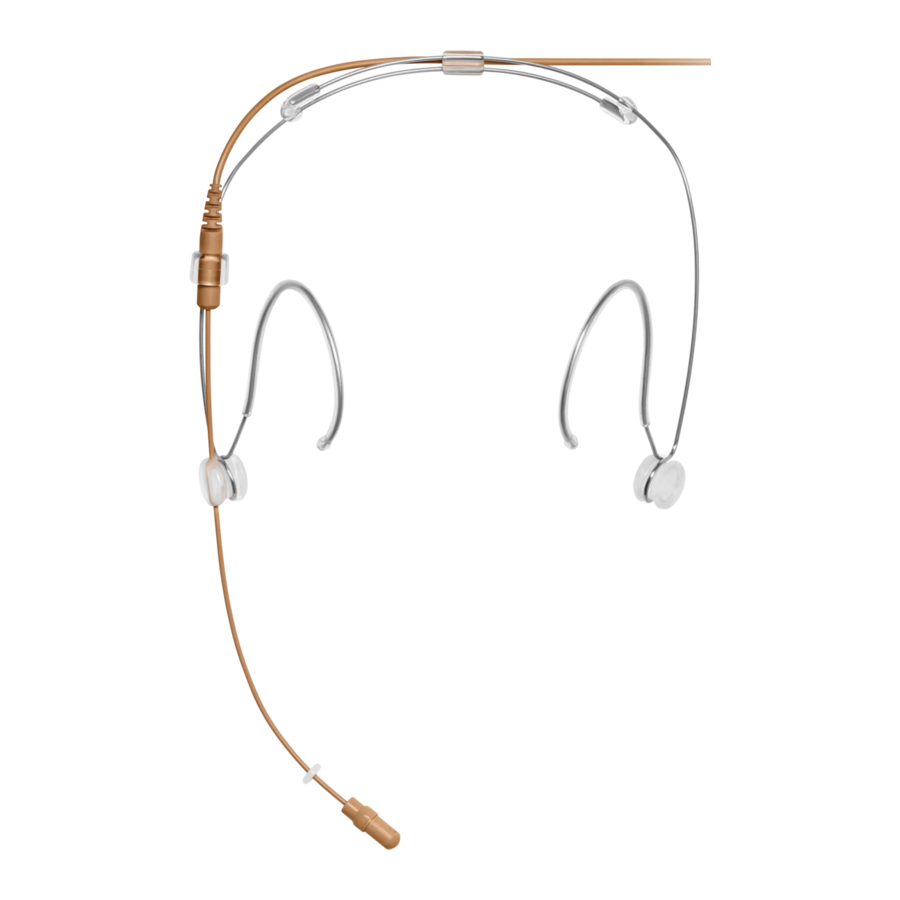

The DuraPlex DH5 omnidirectional headset microphone is ideal for both speech and performance applications that require durability and minimal visibility. The bendable lightweight headset features switchable boom mounting placement and a neutral clear design to be used with any DH5 color variant. The certified IP57 rated headset can withstand challenging conditions involving sweat and dust for use in theater, corporate events, and TV broadcast applications. Each microphone is supplied with a storage pouch, single tie clip, vocal presence frequency response cap, snap fit windscreen, foam windscreen, and TA4F threaded adapter.

Features

• IP57 Certified dust resistant and waterproof/sweatproof headset
• 5mm omnidirectional subminiature design for discrete placement and improved gain before feedback
  1. 1.6mm PLEX Cable technology, paintable cable, and no memory effect
• Professional sound quality for speech and performance applications
• High RF immunity, compatible with digital wireless systems without RF interference
• Attachable Presence Cap included for tailored frequency response in speech applications
• Included furnished accessories for storage, mounting options, and wind protection
• TA4F and LEMO terminations for variable wireless system connectivity
• Universal clear headset frame with switchable boom mount placement
• Available in Black, Tan, Cocoa finishes

Care and Maintenance

The DuraPlex omnidirectional microphone has been IP57 dust-protected, waterproof rated by extensive internal tests, so you can clean it using distilled water and a mild detergent when necessary.

Adjusting the Headband and Microphone

1. Adjust headband width.

2. Adjust the earhooks, slide the boom arm in the boom pivot, and twist the pivot to adjust height and length.

3. Bend boom arm into place. Adjust position.

4. Use presence cap or leave off.


   Use slide-fit windscreen with the presence cap Use snap-fit windscreen without the presence cap

Reversing the Boom

The microphone boom can be positioned on the left or right side of the head.

1. Squeeze the earpiece towards the headband.
2. Push out the boom arm and boom pivot.
3. On the other side, repeat the steps to remove the boom pivot.
4. Move the boom arm to the preferred side, ensuring that the boom arm is placed in the slot in the boom pivot.
5. Squeeze each earpiece towards the headband to push boom pivots back into place.

Presence Cap

Frequency Response

Attaching the Windscreen

There are two windscreens for use with the DuraPlex microphone:

1. A slide-fit windscreen for use with the presence cap

2. A snap-fit windscreen for use without the presence cap
   Note: Do not use the snap-fit windscreen with the presence cap--the presence cap can become caught inside the snap-fit windscreen.


Using the Collar Clip

Accessories

Furnished Accessories

Accessories are available in Black (/B), Tan (/T), AND Cocoa (/C) color varieties. Please consult your Shure representative for available options.

Optional Accessories

Replacement Parts

Threaded Mount Instructions

Wiring and Termination

Typical Wiring Table

Series	Cable Construction	Electrical Design	Polarity	Replacement Connector	For Use With	Wiring	Line Art (From Solder Side)
DL4- LEMO	1.6mm cable with single conductor and shield	3 wire with additional bias on pin 3	Positive with respect to ground	WA416	Shure Lemo Bodypacks (AD1/ADX1- Lemo, Shure UR1M- Lemo, ULXD1- Lemo)	Red wire: Bias(2) Blue wire: Audio(3) Shield: Ground(1)
DL4- MTQG	1.6mm cable with 2 conductors, 2 shield wires and shield	3-Wire	Positive with respect to ground	WA430	All Shure TA4F Body packs	Red wire: Bias(2) Blue wire: Audio(3) Shield wire: Ground(1) Shield: Ground (Shell)

Note: The conductors have a black, protective coating that you must remove with isopropyl alcohol to see their actual color.

TA5F Wiring for Lectrosonics Bodypacks (Servo Biased Wiring)

Series	Cable Construction	Electrical De sign	Polarity	Replacement Connector	For Use With	Wiring	Line Art (From Solder Side)
DL4- MTQG	1.6mm cable with 2 conductors, 2 shield wires and shield	3-Wire (Source Follow er)	Positive with respect to ground	WA435	Lectrosonics TA5F body packs	Red wire: Bias(2) Blue wire: Audio(3) Shield wire: Ground(1) Shield: Ground(Shell) Jumper between 1 and 4
DL4- LEMO	1.6mm cable with 2 conductors, 2 shield wires and shield	3-Wire (Source Follow er)	Positive with respect to ground	WA435	Lectrosonics TA5F body packs	Red wire: Bias(2) Blue wire: Audio(3) Shield wire: Ground(1) Shield: Ground(Shell) Jumper between 1 and 4

Note: The conductors have a black, protective coating that you must remove with isopropyl alcohol to see their actual color.

MTQG Connector Assembly

Exploded View

Note: Make sure to solder the shield to ground collar.

Assembled View

Specifications

Note:

• All specification values are based on using a typical bodypack with 5 V bias input or the RPM400MTQG preamplifier. When using the RPM400LEMO amplifier, refer to the RPM400LEMO specifications.
• All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with slightly decreased headroom and sensitivity.

Microphone Capsule
MEMS

Polar Pattern
Omnidirectional

Frequency Response
20 Hz to 20 kHz

Sensitivity
42.5 dBV at 1 kHz [1]

Self-Noise, A-Weighted, Equivalent Acoustical
31 dB SPL A

Signal-To-Noise Ratio [2]
63.0 dB

Maximum SPL [3]
132.0 dB SPL,1 kHz at 1% THD, typical

Dynamic Range
101.0 dB typical

Microphone Current Draw
220 µA, maximum

Bias Voltage
Recommended Operating Voltage
5 V DC, 2.6 V DC minimum

Housing
Molded ABS

Polarity

Cable Diameter
1.6 mm

Cable Length
66 in. (1.67 m)

Net Weight

[1] 1 Pa=94 dB SPL
[2] S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
[3] THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL

Dimensions
