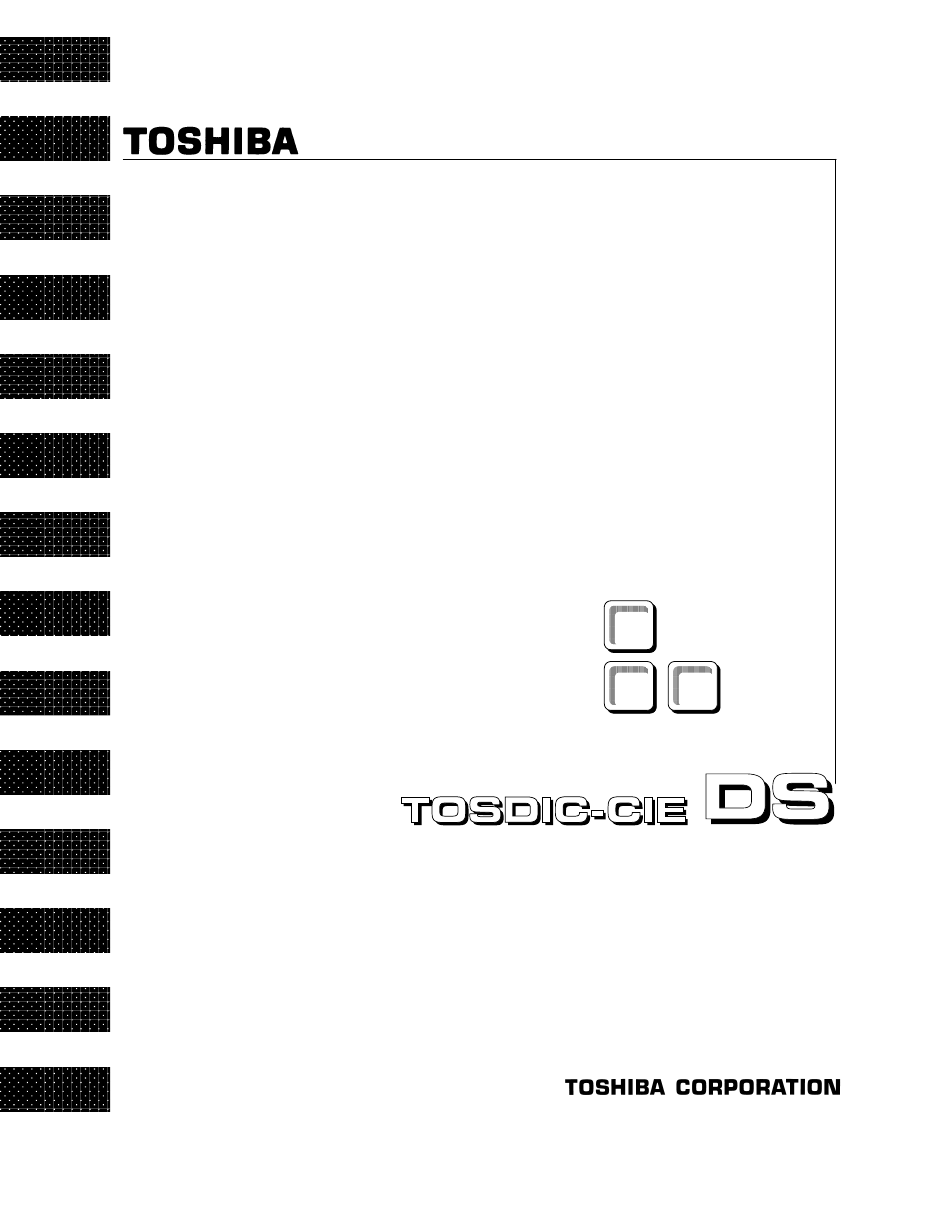

Toshiba Integrated Control System
PLC Connection Function
type1 light
Programming Manual
6F8C1572

Advertisement

Table of Contents
loading

Related Manuals for Toshiba TOSDIC-CIE DS

Summary of Contents for Toshiba TOSDIC-CIE DS

  • Page 1 Toshiba Integrated Control System PLC Connection Function type1 light Programming Manual 6F8C1572...
  • Page 2 2nd Edition 20th October, 2016 The contents of this manual may be revised without notice.  Copyright 2014-2016 by Toshiba Corporation. All rights reserved. No part of this manual may be reproduced in any form without permission.
  • Page 3 Safety Precautions Safety Precautions The instruction manual and the labels affixed to the products or equipment give important information for using products safely. It helps prevent damage to properties and hazard to people who use them or work with them. Make yourself familiar with the signal words and signs in this page, then read the safety precautions that follow and always follow the instructions to avoid hazards.
  • Page 4 Safety Precautions Caution • Do not shut off power, or insert or extract connectors while the system is operating or data is being written.  This can cause an erroneous system operation or damage to data. Power shutdown prohibited while system is operating •...
  • Page 5 • To use this product in a system where equipment such as the one human safety is involved and affecting the maintenance of public function(Note 2), special consideration (Note 3) regarding the system’s operation, maintenance and control is required. Contact Toshiba’s sales department. Note 1 Example of equipment directly involved in human life is as follows: ...
  • Page 6  Toshiba is not liable for any incidental damage from use or non use of this product (loss of business profit, discontinuation of business, change or loss of the memorized content and so on).
  • Page 7 Introduction The PLC connection function realizes a monitor and control system in which the industry standard PLC is added to the TOSDIC-CIE DS system. This manual describes mainly the PLC connection function software. Before using the system, users should be advised to understand the PLC connection function by reading this manual.
  • Page 8 Introduction...

  • Page 9: Table Of Contents

    Contents Contents Safety Precautions Introduction Outline ································································ 1 1.1. The whole outline ······································································ 1 1.2. Basic specification ····································································· 3 Write data structure ··············································· 5 2.1. Writing data structure ································································· 5 type1 light program sample ····································· 7 3.1. Control flow ·············································································· 8 3.2.

  • Page 11: Outline

    1.Outline 1. Outline 1.1. The whole outline type1 light communicates with OIS-DS/SMART or PLCS (PLC connection function) by using a PCMP interface. PLC connection function uses D register. type1 light data collection request control by Ladder program D register TAG lay out INDp0001.PV Input(collection) PFIp0001.PV...
  • Page 12 1.Outline Data collection ..The data is collected as follows. (1)The request of the data collection is notified from PLC connection function to type1 light with the PCMP communication (Read request). (The collection area is an arbitrary area of D register) (2)The type1 light operates the PCMP communication reception processing, and responds the content of a specified register.

  • Page 13: Basic Specification

    1.Outline 1.2. Basic specification The basic specification of type1 light is described in Table 1.1. Table 1.1 Unified Controller nv series type1 light Item Specifications Supported Model Unified Controller nv series type1 light *1) Single : PUM11/12/14, PUM12/14 and EN651A *1) Duplex : PUM14(Duplex), PUM14 and EN651 (Duplex) *2) Communication System pcmp...
  • Page 14 1.Outline 1.3. Duplex specification for type1 light The duplex specification of type1 light is described in Table 1.2 Table 1.2 Duplex specification Item Specifications Read Data Read data from the online side. The data is in the register that is set in ‘Input Reg.’ of ‘PLC Config.’ When the primary type1 light and secondary one aren’t online neither, the data isn’t read and ‘PLC Access Sts’...

  • Page 15: Write Data Structure

    2.Writing data structure 2. Write data structure 2.1. Writing data structure Write data structure from PLC connection function is shown below. It is necessary to execute the processing that observes this content in the type1 light program and corresponds. the head of the set data area In the type1 light program, this information is observed at scan...
  • Page 16 2.Writing data structure...

  • Page 17: Type1 Light Program Sample

    3.type1 light program sample 3. type1 light program sample This topic explains the example of programming type1 light to communicate with the PLC server. The programming outline is shown below. Setting data PLCS type1 light D register Input Write It is necessary to data execute the processing area...

  • Page 18: Control Flow

    3.type1 light program sample 3.1. Control flow The following control processing is done in this sample program. Data writing detection and setting of input data area The set data area (DW[2000] in this sample) is observed and the write request from the PLC connect function is detected.
  • Page 19 3.type1 light program sample Tip: Please refer to the following manuals for a detailed content of the writing data. (OIS-DS/SMART) 6F8C1039 SMART PLC Connection Function Operation Manul (PLCS) 6F8C1453 PLC Connection Function Operation Manual for Windows7 Only the momentary processing is described in this sample program Please add the ladder program for the latch processing when you use a latch tag.

  • Page 20: Ladder Program

    3.type1 light program sample 3.2. Ladder program...
  • Page 21 3.type1 light program sample...
  • Page 22 3.type1 light program sample...
  • Page 23 3.type1 light program sample...
  • Page 24 3.type1 light program sample Figre3.3 Ladder program...

  • Page 25: Registration Of Plcs Engineering Tool

    3.type1 light program sample 3.3. Registration in PLCS engineering tool 3.3.1 Registering a single type1 light Please register as follows in "PLC Config" of the PLCS engineering tool when you register a single type1 light. Table3.2 Registration in “PLC Config” PLC Type 22-type1 light(Single) IP Address...
  • Page 26 3.type1 light program sample • Input Reg(Address) Sets the head register address of the area to collect. (Use "D" register as the register type) • Input Reg(Number of Dig Words) Sets the size of digital tag's words. A setup by 960(size of digital tag words + size of analog tag words) words or less is possible.
  • Page 27 3.type1 light program sample 3.3.2 Registering a duplex type1 light Please register as follows in "PLC Config" and “PLC Duplex Config.” of the PLCS engineering tool when you register a duplex type1 light. Table3.3 Registration in “PLC Config” PLC Type 23-type1 light(Dual) IP Address Port No.
  • Page 28 3.type1 light program sample • Input Reg(Address) Sets the head register address of the area to collect. (Use "D" register as the register type) • Input Reg(Number of Dig Words) Sets the size of digital tag's words. A setup by 960(size of digital tag words + size of analog tag words) words or less is possible.

  • Page 29: Registration Of Ois-Ds Engineering Tool

    3.type1 light program sample 3.4. Registration in OIS-DS engineering tool " PLC#?? sts" displayed in PLCS and OIS/SMART the same as “alarm status“ displayed in “System View” of nV-Tool. The system alarm name displayed in " PLC#?? sts" of “System Status Display” by using "OIS-DS engineering tool"...

  • Page 30: Registering Type1 Light

    3.type1 light program sample 3.4.1 Registering a type1 light The following alarm characters of system alarm are set when PLC is type1 light using “User Defined System Alarm Name (PLC:SMART)” or User Defined System Alarm Name (PLC:PLCS) of OIS-DS engineering tool. •...
  • Page 31 3.type1 light program sample (DV1: Soft state) System Tag Caractors System Tag Caractors Registration Reserve Task Task Reserve Task Degenerate Other(Soft) Reserve (DV2: TC-net I/O State) System Tag Caractors System Tag Caractors TC-netIO loop 1 TC-netIO loop 1 TC-netIO loop 2 TC-netIO loop 2 TC-netIO loop 16 TC-netIO loop 16...
  • Page 32 3.type1 light program sample...
  • Page 34 Infrastructure Systems and Solutions Company Industrial Systems Division 72-34, Horikawa-Cho, Saiwai-Ku, Kawasaki 212-8585, Japan...
