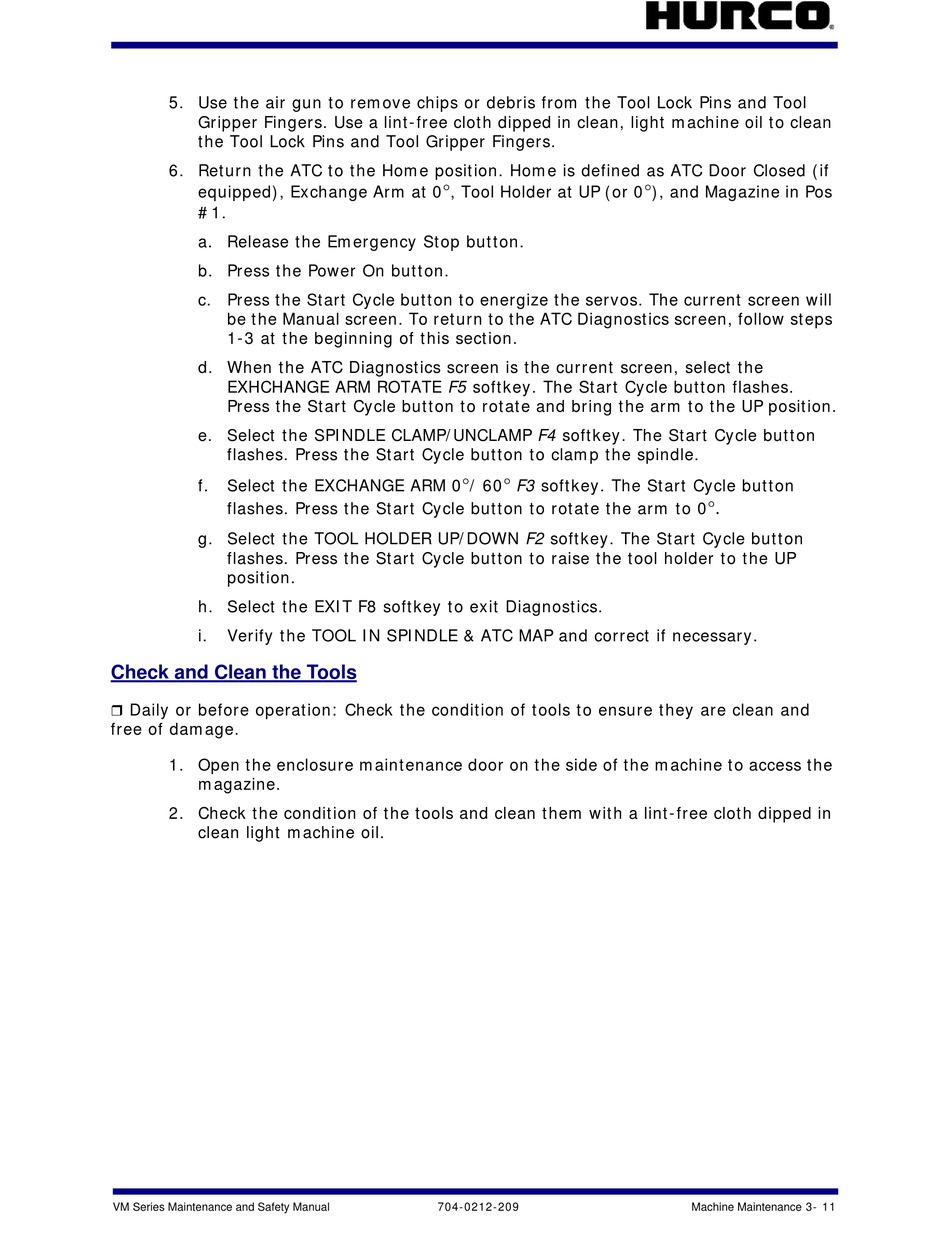

Hurco VM Series Maintenance And Safety Manual page 71

5. Use the air gun to remove chips or debris from the Tool Lock Pins and Tool
Gripper Fingers. Use a lint-free cloth dipped in clean, light machine oil to clean
the Tool Lock Pins and Tool Gripper Fingers.
6. Return the ATC to the Home position. Home is defined as ATC Door Closed (if
equipped), Exchange Arm at 0
#1.
a. Release the Emergency Stop button.
b. Press the Power On button.
c. Press the Start Cycle button to energize the servos. The current screen will
be the Manual screen. To return to the ATC Diagnostics screen, follow steps
1-3 at the beginning of this section.
d. When the ATC Diagnostics screen is the current screen, select the
EXHCHANGE ARM ROTATE F5 softkey. The Start Cycle button flashes.
Press the Start Cycle button to rotate and bring the arm to the UP position.
e. Select the SPINDLE CLAMP/UNCLAMP F4 softkey. The Start Cycle button
flashes. Press the Start Cycle button to clamp the spindle.
f. Select the EXCHANGE ARM 0
flashes. Press the Start Cycle button to rotate the arm to 0
g. Select the TOOL HOLDER UP/DOWN F2 softkey. The Start Cycle button
flashes. Press the Start Cycle button to raise the tool holder to the UP
position.
h. Select the EXIT F8 softkey to exit Diagnostics.
i. Verify the TOOL IN SPINDLE & ATC MAP and correct if necessary.
Check and Clean the Tools
Daily or before operation: Check the condition of tools to ensure they are clean and

free of damage.
1. Open the enclosure maintenance door on the side of the machine to access the
magazine.
2. Check the condition of the tools and clean them with a lint-free cloth dipped in
clean light machine oil.
VM Series Maintenance and Safety Manual
, Tool Holder at UP (or 0
°
/ 60 F3 softkey. The Start Cycle button
° °
704-0212-209
), and Magazine in Pos
°
°.
Machine Maintenance 3- 11
