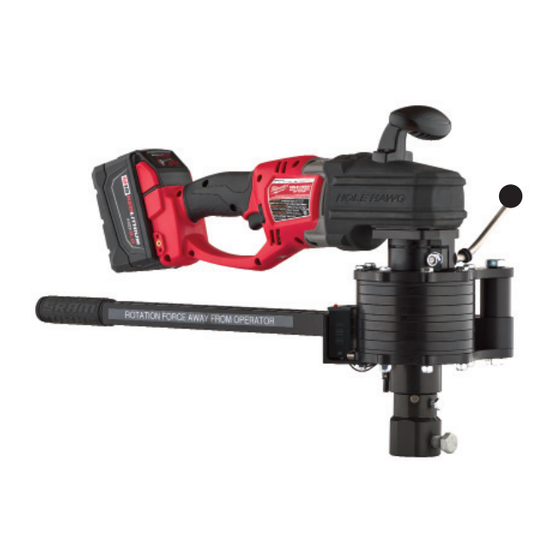

REFERENCE MANUAL
The HH500 Kit Includes:
• HH500
• Batteries (2)
• Charger
• Socket
Read these instructions thoroughly before using the HH500. For more in-
formation, call Hurco at 800-888-1436 or email info@hurcotech.com. This
product is sold with the understanding that the purchaser agrees to
thoroughly train all operators and maintenance personnel in the correct and
safe assembly, operation, and maintenance of the product and to provide
adequate supervision of personnel at all times. Retain these instructions for
future reference. If this product is resold or otherwise conveyed, purchaser
must pass on the instructions to the new user.
• Wrench
• Grease Zerk
• Product Instructions
• Tool Bag or Crate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HH500 and is the answer not in the manual?

Questions and answers

Related Manuals for Hurco HH500

Summary of Contents for Hurco HH500

  • Page 1 • Charger • Socket • Tool Bag or Crate Read these instructions thoroughly before using the HH500. For more in- formation, call Hurco at 800-888-1436 or email info@hurcotech.com. This product is sold with the understanding that the purchaser agrees to...

  • Page 2: Table Of Contents

    Table of Contents Section 1: Safety Section 2: Product Specifications Section 3: Components Section 4: HH500 Controls Section 5: Operation Opening Hydrant Valves Closing Hydrant Valves Section 6: Other Attachments Attachment Options Gate Valve Key Section 7: Maintenance Greasing the Output Drive...

  • Page 3: Section 1: Safety

    The HH500 is designed to produce an intense amount of torque. PLEASE USE EXTREME CAUTION AT ALL TIMES. This tool has been designed to help operators open and close valves.

  • Page 4: Section 2: Product Specifications

    Section 2: Product Specifications HH500 Model Name Model Type Cordless Width (in) 6.5” Length (in) 26” Height (in) 12” from output drive to top motor handle Weight 22.5 lbs with socket and battery Battery Capacity Up to 20 hydrants / 10 gate valves...

  • Page 5: Section 3: Components

    Section 3: Components HH500 CHARGER BATTERIES (2) 5-POINT ADJUSTABLE SOCKET PRODUCT INSTRUCTIONS GREASE ZERK 1.5 " WRENCH HH500 ADAPTER HH500...

  • Page 6: Section 4: Hh500 Controls

    Section 4: HH500 Controls Directional Switch Trigger Handle Lock Battery Digital Counter ROTATION FORCE AWAY FROM OPERATOR Reaction Set Screw Handle Threaded Fastener Socket...

  • Page 7: Section 5: Operation

    Never apply manual torque to open or close a valve! ONLY USE MOTOR POWER TO ACTUATE THE VALVE, OTHERWISE, DAMAGE TO THE MOTOR MAY OCCUR. Follow all HH500 procedures outlined in these Product Instructions. Failure to follow product usage instructions, including manually turning the valve, will invalidate the product...

  • Page 8: Opening Hydrant Valves

    1. Insert the socket onto the HH500 3/4” square drive shaft. 2. Tighten the set screw to secure the socket. 3. Place the HH500 with the socket onto the hydrant with the reaction handle facing away from the operator. 4. Adjust socket size by turning threaded fastener.

  • Page 9: Closing Hydrant Valves

    4. Operate the tool carefully to close the hydrant valve, slowing down as it nears the fully closed position. 5. Stop the HH500 when the digital counter reaches the previously noted counter value. NOTE: Be aware the torque will increase if you go over the previ-...

  • Page 10: Section 6: Other Attachments

    Section 6: Other Attachments Attachment Options ROTATION FORCE AWAY FROM OPERATOR ADD WRENCHES...

  • Page 11: Gate Valve Key

    Gate Valve Key (Wrenches W1-8) The gate valve key can be purchased separately. It fits onto the HH500 and opens gate valves.
  • Page 12 2. Adjust the length of the key to ensure the top of the key is at a com-fortable height for the operator. 3. Ensure the HH500 tool is fully seated on the gate valve key with the reaction handle facing away from the operator.
  • Page 13 3. Move the directional switch in the opposite direction used in Part 4. Operate the tool carefully to open or close the gate valve. 5. Stop the HH500 when the digital counter reaches the previously noted counter value, slowing down as it nears the fully open/ closed position.

  • Page 14: Section 7: Maintenance

    Section 7: Maintenance Greasing the Output Drive & Output Drive Housing For proper operation the HH500 should be greased in two locations every 12 months. Greasing the Output Drive 1. Using Hex Key, remove the threaded plug from output drive.

  • Page 15: Greasing The Output Drive Housing

    4. Pump 1 oz. of grease. 5. Disconnect the grease pump. 6. Rotate the output drive by slowly operating the HH500 motor. 7. Repeat steps 3-6 four more times. 8. Remove the grease zerk. 9. Insert the threaded plug back into the output drive threaded hole and tighten with the hex key.

  • Page 16: Section 8: Reference Tables

    Section 8: Reference Tables Gate Valve Tables NOTE: The following tables are for reference only. For more accurate information, see the specific hydrant manufacturer to determine the number of valve rotations. Most Double Disk Valves Used in Water Systems Valve Size Number of Turns 3”...
  • Page 17 Most Metal-Seated Sewage Valves Valve Size Number of Turns 3” 4” 6” 8” 10” 12” 14” 16” 18” 20”...

  • Page 18: Section 9: Troubleshooting

    Please call Hurco at 800-888-1436 at any time with questions. We are available and eager to answer your questions about the proper use of the HH500, as well as, solve any problems you may have with the tool.
  • Page 19 NOTES...
  • Page 20 For the latest in Hurco Technologies product news & insights, visit our website at www.HurcoTech.com. For more information, call Hurco at 800-888-1436 or email info@HurcoTech.com. 03192021...
