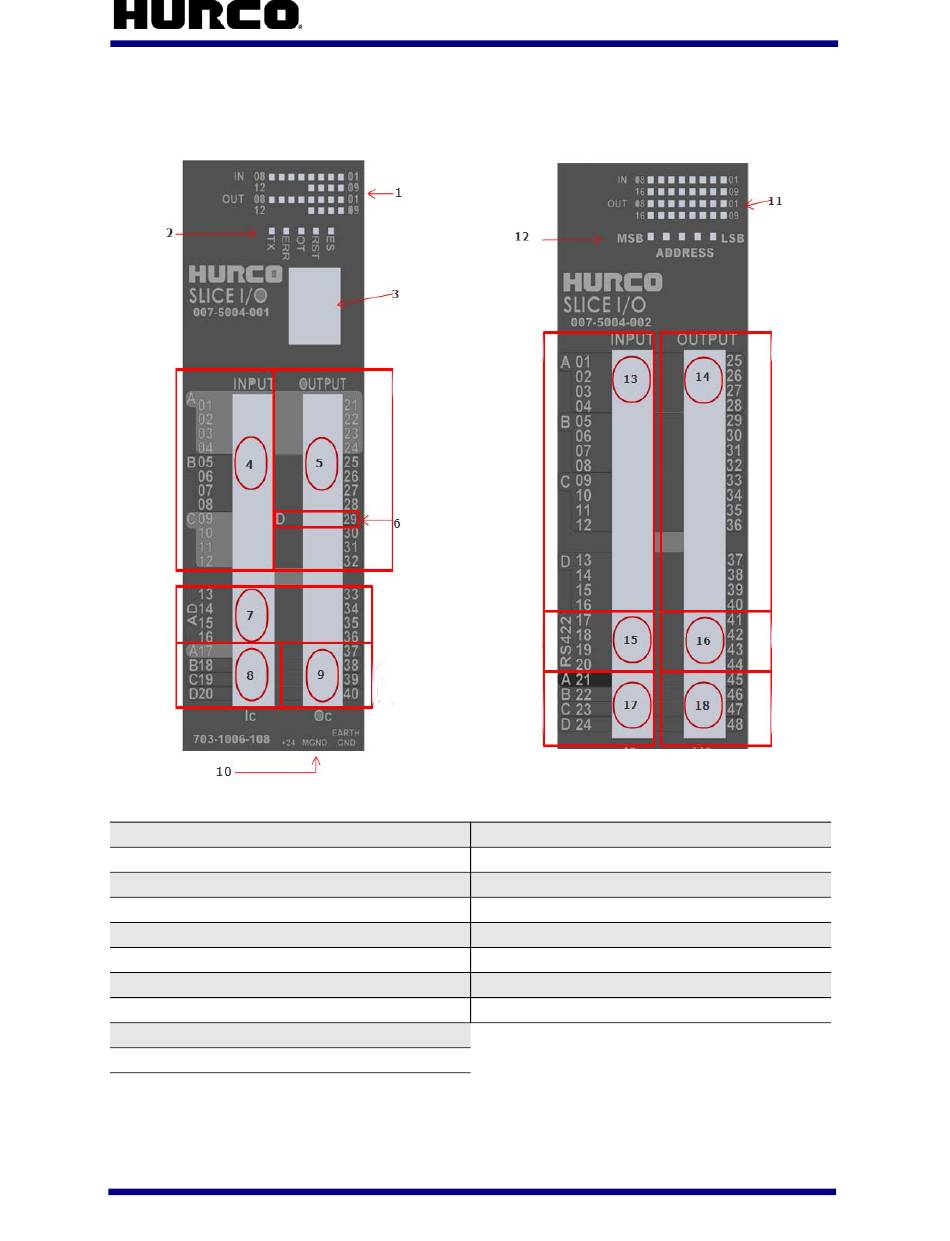

The following figure identifies the components of the Slice 0 and Slice 1 I/O devices:
(Main) Slice 0
1 I/0 Status LEDs
2 System Status LEDs
3 RJ45 CAN
4 12 Inputs
5 12 Outputs
6 OUT9 (COR)
7 4 A/D Inputs
8 Input Bank Commons
9 Output Bank Commons
10 Clean 24V Power In
Figure 1–4. Slice I/O
1 - 20 Machine Components
(Slave) Slice 1
11 I/0 Status LEDs
12 Slice Address (binary)
13 16 Inputs
14 16 Outputs
15 (2) RS422 Inputs
16 (2) RS422 Outputs
17 Input Bank Commons
18 Output Bank Commons
