Summary of Contents for Texi Ziggy

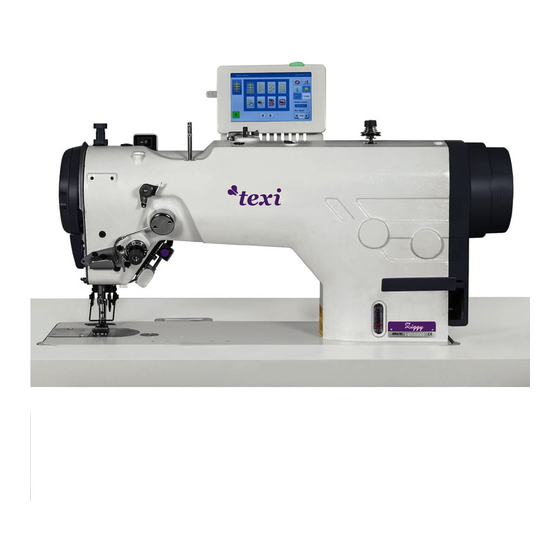

- Page 1 Operation manual Computerized zigzag machine Ziggy...
-
Page 3: Table Of Contents
TEXI Ziggy operation manual Contens General safety precautions ……………………………………………………………………………… Safety symbols ………………………………………………………………………………………………. Before starting work …………………………………………………………………………………… Specifications of the machine head ………………………………………………………………… Stitch patterns table…………………………………………………………………………………….. Installation ……………………………………………………………………………………………… 4.01 Installing the thread stand ……………………………………………………………………………. 4.02 Installing the operation panel ……………………………………………………………………….. 4.03 Test run…………………………………………………………………………………………………... -
Page 4: General Safety Precautions
TEXI Ziggy operation manual IMPORTANT! This instruction manual contains important guidelines regarding correct, safe and economical method of use of the machine. Following recommendations contained in this manual will decrease work down-time, increase machine reliability and durability, and will make work safer. -
Page 5: Safety Symbols
Switch off main switch. Proper use Texi Ziggy is high-speed, zigzag sewing machine with bottom feed and a large hook. The machine is used for producing zigzag lockstitch seams in the clothing and linen industry. Any and all uses of this machine which have not been approved of by the manufacturer are considered to be inappropriate! The manu-... -
Page 6: Stitch Patterns Table
TEXI Ziggy operation manual 3. Stitchpattern table... -
Page 7: Installation
TEXI Ziggy operation manual 4. Installation 4.01 Installing the thread stand 1. Assemble the thread stand unit, and insert it in the hole in the ma- chine table. 2. Tighten locknut (1) to fix the thread stand. 3. For ceiling wiring, pass the power cord through spool rest rod(2). -
Page 8: Preparation Before Sewing
TEXI Ziggy operation manual 2) How to operate the pedal The pedal is operated in four stages. 1. Lightly depress the front part of the pedal for low-speed operation B. 2. Further depress the front part of the pedal for high-will enter the high-speed operation mode after the completion of reverse feed stitching if the automatic reverse feed stitching function is specified with the corresponding switch.) -
Page 9: Winding The Bobbin Thread
TEXI Ziggy operation manual 5.03 Winding the bobbin thread 1. Insert the bobbin deep into the bobbin winder spindle (5) until it will go no further. 2. Pass the bobbin thread pulled out from the spool rested on the right... -
Page 10: Placing The Bobbin Case And The Bobbin
TEXI Ziggy operation manual 5.04 Placing the bobbin case and the bobbin 1. Turn the hand-wheel by hand to raise the needle to its highest position. 2. Take a bobbin by your right hand with the thread drawn out about 5 cm from the thread end of the bobbin and place it into the bobbin case as illustrated. -
Page 11: Adjusting The Thread Tension
TEXI Ziggy operation manual Adjusting the bobbin thread tension 1) The tension of the bobbin thread is adjusted by turning the tension ad- justing screw (1). Turn it clockwise to increase. Turn it counter clockwise to decrease. 6.02 Adjusting the pressure of the presser foot 1. -
Page 12: One-Touch Type Reverse Feed Stitching Mechanism
TEXI Ziggy operation manual 6.04 Height of the switch 1. Loosen setscrew (1) and adjust up or down mirror Switch(2). 2. Loosen setscrew (3) and move up or down reverse feed switch(4) to adjust the height. The position of reverse feed switch (4) and mirror switch (2) can be reversed 3. -
Page 13: Standard Adjustment
TEXI Ziggy operation manual Mirror inversion means the function that the reverse pattern sewing is performed after pressing the mirror inversion switch during temporary stop of sewing. For the adjustment of the height, see p21. Sewing procedure (Example: scallop) 1. Stop the sewing machine at the position you desire to perform mirror inversion during sewing. -
Page 14: Adjusting The Amount Of Lubricating To Face Plate Section
TEXI Ziggy operation manual 1. When adjusting the amount of oil in the hook, perform the adjustment in a way of reducing the oil amount after somewhat increas- ing it. 2. The amount of oil in the hook has been adjusted at the max. number of revolution at the time of delivery. -
Page 15: Adjusting The Micro-Lifting Mechanism Of The Presser Foot
TEXI Ziggy operation manual 7.04 Adjusting the micro-lifting mechanism of the presser foot Some type of material needs to be sewn with the presser foot slightly lifted. In this case, perform this adjustment fol- lowing the procedure described below. 1. Loosen the setscrew (1) in the presser foot micro-lifter . -
Page 16: Needle Height (Preliminary Adjustment)
TEXI Ziggy operation manual 7.07 Needle height (preliminary adjustment) When the needle bar is at b.d.c bottom dead centre , the needle bar should be 12.3 mm above the needle plate. 1. Set the zigzag width “0”.Bring the needle to the center of the zigzag stroke. -
Page 17: Adjusting The Thread Trimmer
TEXI Ziggy operation manual When you return the pedal to its neutral position after having depressed the front part of it , the needle stops at the lowest stop position. As in the case of the adjustment of the highest stop position of the needle ,... -
Page 18: Adjusting The Needle Thread Feeding Device
TEXI Ziggy operation manual 7.11 Adjusting the needle thread feeding device Standard position of the feeding wire 1. Loosen screw (1) . 2. Turn the feeding wire together with feeding wire installing base (2) , adjust the installing position of the feeding wire so that a distance of C (8 to 12mm) is provided between the top end of feeding wire (3) and the guide portion of thread take-up thread guide A (4) , and tighten screw (1) . -
Page 19: Maintenance
TEXI Ziggy operation manual 8. Maintance 8.01 Maintenance intervals Cleaning…………………………………..daily, several times if in continuous use Checking the oil level………………………………………daily, before operation During all cleaning work the machine must be disconnected from the power supply by switching off the main switch or... -
Page 20: Cleaning The Cooling Fan Installed On The Undercover
TEXI Ziggy operation manual 8.04 Cleaning the cooling fan installed on the under cover 8.05 Cleaning the hook section When cloth waste or the like gathers around or adheres to the hook section, trouble (defective sewing, seizure of hook, etc). of sewing... -
Page 21: Replacing Procedure Of The Hook Shaft Oil Wick
TEXI Ziggy operation manual 8.06 Replacing procedure of the hook shaft oil wick 1. Hook shaft oil wick (1) is mounted on the top end of hook shaft (3) . Remove the needle and the parts around the needle (presser... -
Page 22: Ce Declaration Of Conformity
TEXI Ziggy operation manual CE DECLARATION OF CONFORMITY Distributor: Strima Sp. z o.o. Swadzim, st. Poznańska 54 62-080 Tarnowo Podgórne, Polska We declare, that the following product: Computerized zigzag machine Ziggy (ZJ2290S-SR) which this declaration relates, complies with the following directives:... - Page 23 TEXI Ziggy operation manual...
- Page 24 Dealer:...
