(Destination)
Port (Destination)
Protocol
Physical Port
ClassQueue
802.1p_Mark
IP.Pred_Mark
TOS_Mark
IP QoS Rules

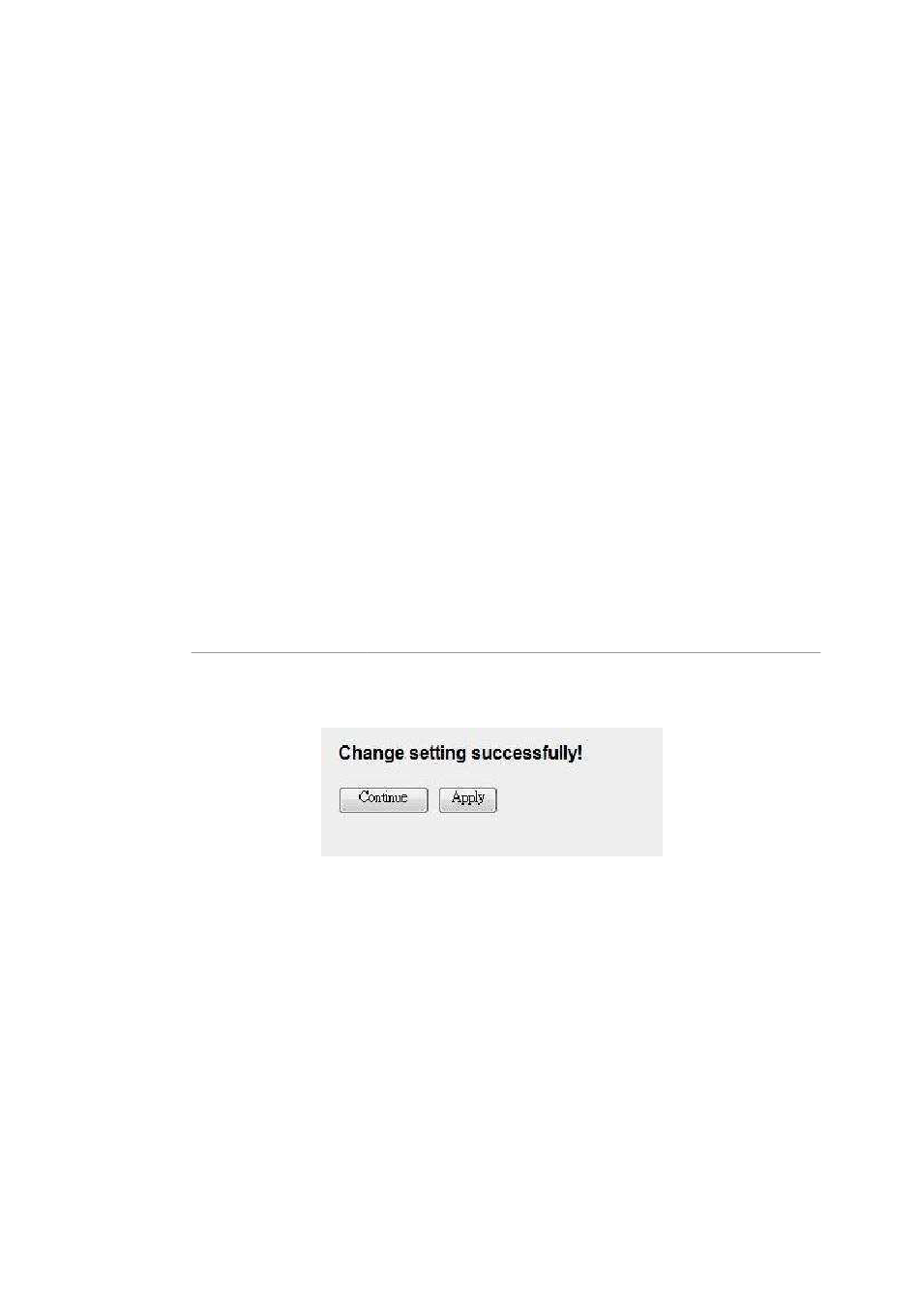

When you finish, click 'Apply Changes'. You'll see the following message
displayed on web browser:
Press 'Continue' to save the settings made and back to web management
interface; press 'Apply' to save the settings made and restart the router so the
settings will take effect after it reboots.
destination IP has been entered.
The destination port of the selected protocol. You cannot
configure this field without entering the protocol first.
The selections are TCP, UDP, ICMP and the blank for none.
This field is required if the source port or destination port
has been entered.
The incoming ports. The selections include LAN ports,
wireless port, and the blank for not applicable.
The priority level for the traffic that matches this
classification rule. Please refer to 5.2.5.2 QOS Queue to
create a ClassQueue.
Select this field to mark the 3-bit user-priority field in the
802.1p header of the packet that matches this
classification rule. Note that this 802.1p marking is
workable on a given PVC channel only if the VLAN tag is
enabled in this PVC channel.
Select this field to mark the IP precedence bits in the
packet that match this classification rule.
The IP (Internet Protocol) uses the ToS (Type of Service)
field to provide an indication of the quality of service
desired. These parameters are to be used to guide the
selection of the actual service parameters when
transmitting an IP datagram through a particular
network.0
This table lists the rules you have configured. Click "Delete
Selected" to delete the selected rules or click "Delete All"
to delete all the rules.
