Author: Patrik Studer
Date:
Rev. A:
30.04.2015

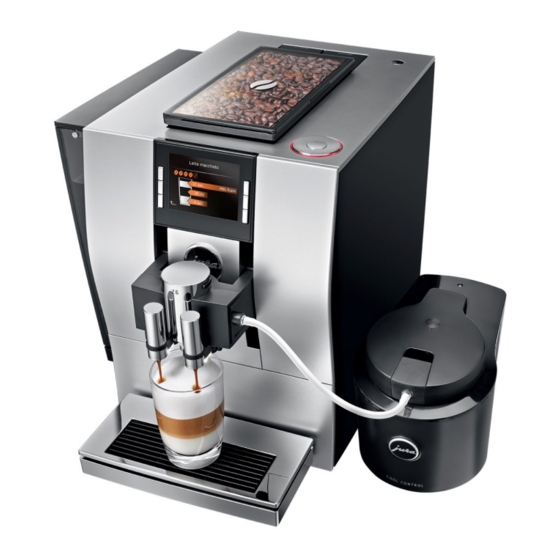

Technical information
Z6 One Touch TFT
Z6 One Touch TFT
Satin silver
Checked:
Rev. B:
Rev. C:
Approved:
Docu.-name:
L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\T
echnische_Informationen_Z6_OT_TFT_EN.docx
Rev. D:
Rev. E:
Technical Support
Technische_Informationen_Z6_OT_TFT_EN.docx
Rev. F:
Page 1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z6 One Touch TFT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jura Z6 One Touch TFT

  • Page 1 Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language Z6 One Touch TFT Satin silver Author: Patrik Studer Checked: Approved: Docu.-name: Technische_Informationen_Z6_OT_TFT_EN.docx L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\T echnische_Informationen_Z6_OT_TFT_EN.docx Date: Rev. A: Rev. B: Rev. C: Rev. D: Rev. E: Rev. F: Page 1/16...
  • Page 2: Table Of Contents

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language Table of contents: General information: .......... 3 11.2.1.1.1 Coffee strength: ......10 Control elements / Control panel: ...... 4 11.2.1.1.2 Milk foam: ........10 Service cover: ........... 4 11.2.1.1.3 Water quantity: ......
  • Page 3: General Information

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language General information: The following features are different to the other Z line appliances: 1 Dual-spout for milk and milk products  1 Thermoblock  Aroma strength in 10 steps ...
  • Page 4: Control Elements / Control Panel

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language Control elements / Control panel: 2.1 Service cover: Enter accessory-/service plug: Best way is to grab in lowest lamella with your fingertips and slide it upwards  Then remove towards you ...
  • Page 5: Key Combinations

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language Key combinations: The appliance is ready for coffee  3.1 1. setting up bit (when system asks to FILL SYSTEM): Press the key 1 (ESPRESSO) & Key 6 (1 PORTION MILK FOAM) at the same time ...
  • Page 6: Monitors

    With a capacity sensor (FILL WATER TANK)  Capacity 2.4 liters  Water tank illumination in front (blue LED)  Cannot be equipped with the JURA automatic filling device  5.5 Residual water container: Capacity 0.8 liter  Container has an anti-flood construction against spilling water ...
  • Page 7: Coffee Spout

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language 5.7 Coffee spout: Surveillance with REED contact  Bi-colour LED’s for the cup illumination:  Lights up in white during normal operation Lights up in amber during coffee draw off Width: 21 mm ...
  • Page 8: Brewing Unit With Vc

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language Brewing unit with VC: The brewing unit has an additional component (Vacuum Clean), which creates a vacuum after the  preparation, to guide the small amount of left coffee water into the tray...
  • Page 9: Programming

    Display CLEAN MACHINE 11.1.2 Descale: Start descale with 3 JURA descaling tablets (1 blister) and 6 dl (20.3 oz) of water  11.1.3 Change the filter: The appliance detects automatically that a CLARIS Smart filter cartridge has been inserted or ...
  • Page 10: Clean The Milk System

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language 11.1.4 Clean the milk system: After each milk product preparation the message shows up (CLEAN THE MILK SYSTEM).  The same happens when switching-off the appliance. After 10 sec. the automatic switch-off procedure will be continued.
  • Page 11: Water Quantity

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language 11.2.1.1.3 Water quantity: The quantity can be programmed with Long Press (ca. 2 secs.)  (ENOUGH COFFEE? PRESS BUTTON) Products can also be programmed under Programming mode  2 Cup products: the programmed water quantity of the single product will be doubled ...
  • Page 12: Product Name

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language 11.2.1.5 Product name: You can rename all the products stored on the start screen or the product selector  You can move any of these products to your preferred position on the start screen ...
  • Page 13: Save Energy (Esm)

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language 11.3.3 Save Energy (ESM): 11.3.3.1 INACTIVE: Thermoblock is always on temperature  11.3.3.2 ACTIVE: The thermoblock switches off after 5 mins. if no product has been prepared.  When drawing off a product, the thermoblock has to get heated up first again.
  • Page 14: Water Hardness

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language 11.3.7 Water hardness: Is always enabled, in descale mode or filter mode  The water hardness level can directly be programmed in German hardness (1 °dH – 30 °dH).
  • Page 15: Empty System

    Technical information Technical Support Elektroapparate AG Z6 One Touch TFT Language 12 Empty system: Frost protection  Precondition: PLEASE SELECT PRODUCT is displayed. 1. Press the 1 PORTION MILK FOAM button 2. 1 PORTION MILK FOAM, hot steam is discharged from the dual spout 3.
  • Page 16: Error Messages

    Initialisation of CAPPU stepper motor not possible ERROR 22 CLARIS Smart communication problem ERROR 23 Controller timeout (Logic <-> Display) 15 Accessory: Milk Control Wireless supported  JURA automatic filling device not supported  Author: Patrik Studer Checked: Approved: Docu.-name: Technische_Informationen_Z6_OT_TFT_EN.docx L:\Geräte\Linie_Z_Neu\Z6_OT_TFT\Schulungsunterlagen\E\T echnische_Informationen_Z6_OT_TFT_EN.docx...
