Summary of Contents for Jura 751

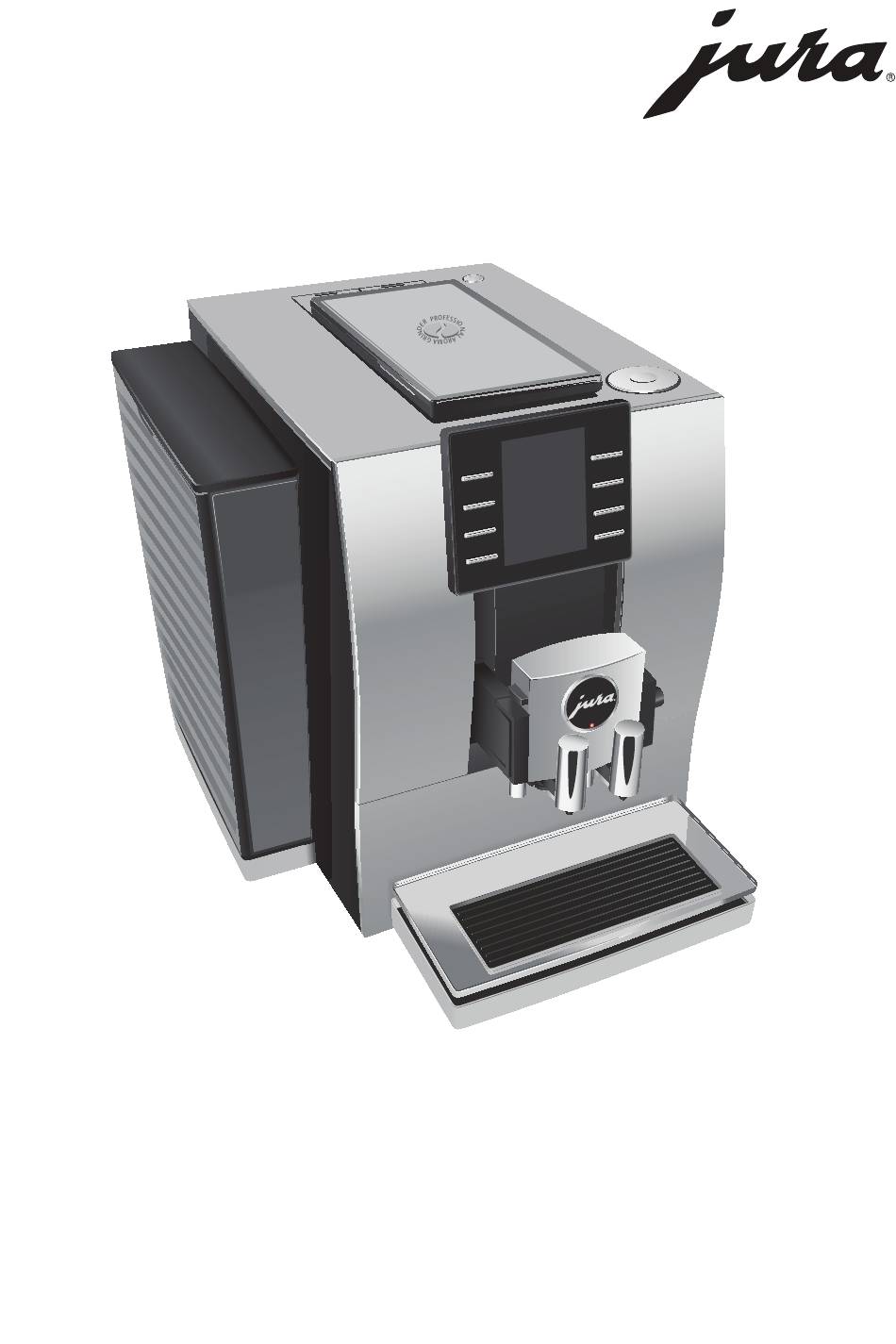

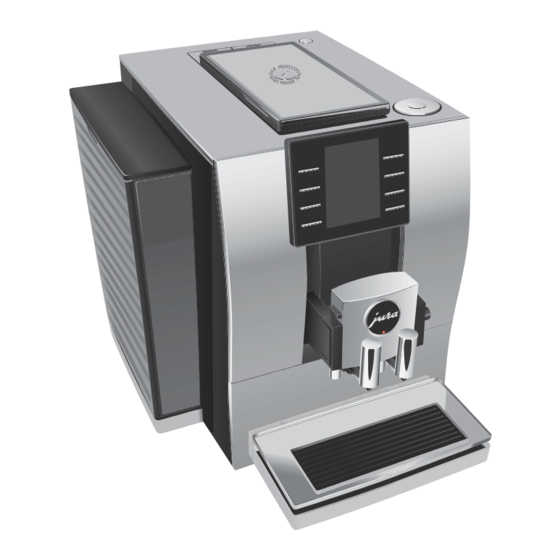

- Page 1 INSTRUCTION FOR USE FOR JURA Z6 Type 751...
-
Page 2: Table Of Contents
Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10 Determining the water hardness .......................11 First-time use ..............................11 Connecting milk ............................ - Page 3 8 Transport and environmentally friendly disposal Transport / Emptying the system ......................45 Disposal .................................45 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings Always take note of any information marked with the words CAUTION or J WARNING WARNING and a warning sign.
-
Page 4: Control Elements
Control elements Control elements Cover for powder chute for ground coffee Cover cap for grinder adjustment switch Powder chute for ground coffee Grinder adjustment switch On/Off button Q Water tank Mains cable (permanently connected Bean container with aroma preservation or plug-in) (back of the machine) cover Hot-water spout Height- and width-adjustable dual spout... - Page 5 Top of the machine Display Rotary Switch Multi-function buttons (button function depends on what is shown in the display) Back of the machine: Service socket with JURA Smart Connect Accessories Container for milk system Measuring spoon for ground Filler funnel for ground coffee...
-
Page 6: Important Information
JURA service. If the mains cable of this machine is damaged, it must be repaired either directly by JURA or by an authorised JURA service centre. Make sure that the Z6 and the mains cable are not located close to hot surfaces. - Page 7 The machine contains live parts. If opened, there is a danger of potentially fatal injury. Repairs may only be carried out by authorised JURA service centres, using original spare parts and accessories. To completely and safely disconnect the machine from the power supply, first switch off the Z6 using the On/Off button Q.
- Page 8 Please only use original JURA maintenance products. Use of products that are not explic- itly recommended by JURA could damage the machine. Do not use alkaline cleaning agents; only use a soft cloth and mild cleaning agents.
- Page 9 Important information Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely. Chil- dren must be able to recognise and under- stand the potential dangers arising from incor- rect use.
-
Page 10: Preparing And Using For The First Time
JURA on the Internet Visit us on the Internet. You can download short operating instruc- tions for your machine from the JURA website (www.jura.com). You will also find interesting and up-to-date information on your Z6 and on every aspect of coffee. -
Page 11: Determining The Water Hardness
1 Preparing and using for the first time Determining the water When you use the machine for the first time, you must set the water hardness hardness. If you do not know the hardness of your water, you can find this out first. Use the Aquadur® test strips supplied with the machine. - Page 12 1 Preparing and using for the first time E If you do not know the hardness of your water, you must find this out first (see Chapter 1 ‘Preparing and using for the first time – Determining the water hardness’). T ...
-
Page 13: Connecting Milk
E Your Z6 is equipped with the HP3 milk system. Connect accessory Your Z6 is equipped with the JURA Smart Connect. This allows you (wireless connection) to connect the machine wirelessly to a compatible JURA accessory (e.g. - Page 14 1 Preparing and using for the first time T Turn the Rotary Switch until ‘Connect accessory’ is dis- played. E If the programme item ‘Connect accessory’ is not displayed, Smart Connect is not inserted or is not inserted correctly into the service socket.
-
Page 15: Preparation
– and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. Ways of preparing a The Z6 offers various ways of preparing a speciality coffee, milk or beverage hot water. -
Page 16: Ristretto, Espresso And Coffee
2 Preparation Preparation using the product selector view: Only some of the products you can prepare are shown on the start screen. As soon as you turn the Rotary Switch, more products are displayed in a product selector view. Turn the Rotary Switch to bring the product you want into focus. Start preparation by pressing the Rotary Switch. -
Page 17: Two Ristretti, Two Espressi And Two Coffees
2 Preparation Two ristretti, two espressi and two coffees Example: Proceed as follows to prepare two coffees. Precondition: The start screen is displayed. T Place two cups under the dual spout. T Press the ‘Coffee’ button twice (within two seconds) to start preparation of two coffees. -
Page 18: Caffè Barista And Lungo Barista
2 Preparation Caffè Barista and lungo For the ‘caffè Barista’ and ‘lungo Barista’, the Z6 blends the coffee Barista with hot water using a special preparation method. This results in a full-bodied speciality coffee which is particularly easy to digest. You can change the amount of this additional water (see Chapter 4 ‘Permanent settings in programming mode –... -
Page 19: Adjusting The Grinder
2 Preparation T Fit the filler funnel for ground coffee. T Place one level measuring spoon of ground coffee into the filler funnel. T Remove the filler funnel and close the cover of the powder chute. The start screen is displayed. T ... -
Page 20: Hot Water
2 Preparation Hot water The Z6 allows you to prepare different variants of hot water: ‘Hot water’ ‘Hot water for green tea’ ‘Hot water for black tea’ CAUTION There is a danger of scalding from hot water splashes. T Avoid direct contact with the skin. Example: ... -
Page 21: Daily Operation
3 Daily operation 3 Daily operation Filling the water tank Daily maintenance of the machine and hygiene when handling milk, coffee and water are key to a perfect coffee result in the cup every time. You should therefore change the water daily. Milk, sparkling mineral water or other liquids can damage the water CAUTION tank or the machine. -
Page 22: Regular Maintenance
3 Daily operation T Rinse the water tank with clean water. T Clean the milk system in the dual spout (see Chapter 5 ‘Maintenance – Cleaning the milk system’). T Remove the milk pipe and rinse it thoroughly under running water. -
Page 23: Permanent Settings In Programming Mode
4 Permanent settings in programming mode 4 Permanent settings in programming mode Briefly press the Rotary Switch to enter programming mode. You can navigate through the programme items and permanently save the required settings simply by turning the Rotary Switch and using the multi-function buttons. -
Page 24: Product Settings
4 Permanent settings in programming mode Programme item Sub-item Explanation ‘Connect accessory’, T Connect the Z6 wirelessly to a JURA ‘Disconnect accessories’ accessory or disconnect the connection again. (Only displayed if the JURA Smart Connect is being used.) Product settings In the programme item ‘Product settings’... - Page 25 4 Permanent settings in programming mode Product Coffee Amount More settings strength Two ristretti, – Coffee: The amount set for Temperature (as for single two espressi, the single product is product), two coffees, doubled. product name two caffè Barista, two lungo Barista Cappuccino 10 levels Coffee: 25 ml – 240 ml...
-
Page 26: Storing And Personalising Products
4 Permanent settings in programming mode T Press the ‘Espresso’ button for about 2 seconds until ‘Expert mode’ appears. T Press the Rotary Switch. ‘Coffee strength’ T Press the Rotary Switch again. T Turn the Rotary Switch to change the coffee strength set- ting. -
Page 27: Automatic Switch-Off
4 Permanent settings in programming mode T Press the ‘Yes’ button. ‘Saved’ appears briefly on the display. ‘Product name’ E You can now give the product you just added a new name, e.g. ‘My coffee’. T Press the ‘Save’ button. ‘Saved’... -
Page 28: Smart Mode
4 Permanent settings in programming mode Smart mode Your Z6 has a ‘Smart mode’. If this mode is activated, the products on the start screen will be rearranged according to your personal preferences after some time. E The star on the start screen indicates that the ‘Smart mode’ is activated. -
Page 29: Display Brightness
4 Permanent settings in programming mode T Press the Rotary Switch to enter the programme item. ‘Water hardness’ T Turn the Rotary Switch to change the setting. T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. ‘Water hardness’ T ... -
Page 30: Restore Factory Settings
4 Permanent settings in programming mode T Press the Rotary Switch to enter the programme item. ‘Units’ T Turn the Rotary Switch until ‘oz’ is displayed. T Press the ‘Save’ button. ‘Saved’ appears briefly on the display. ‘Units’ T Press the ‘ ’... -
Page 31: Language
4 Permanent settings in programming mode T Press the Rotary Switch. ‘Choose language’ T Turn the Rotary Switch until ‘Water tank illumination’ is dis- played. T Press the Rotary Switch to enter the programme item. ‘Water tank illumination’ T Turn the Rotary Switch until ‘Temporary’... -
Page 32: Querying Information
4 Permanent settings in programming mode Querying information In the programme item ‘Machine settings’ you can view the follow- ing information: ‘Product counter’: Number of prepared coffee speciality coffees, speciality coffees with milk and hot water ‘Maintenance counter’: Number of maintenance programmes performed (cleaning, descaling etc.) ‘Version’: Software version Example: ... -
Page 33: Maintenance
5 Maintenance 5 Maintenance Your Z6 has the following integrated maintenance programmes: Rinsing the machine Rinsing the milk system in the dual spout Cleaning the milk system in the dual spout (‘Clean the milk system’) Changing the filter (‘Change the filter’) (only if filter is fitted) Cleaning the machine (‘Clean’) Descaling the machine (‘Descale’) -
Page 34: Cleaning The Milk System
T Use only original JURA maintenance products. E JURA milk system cleaner is available from specialised dealers. E To clean the milk system, use the container supplied. Precondition: The start screen is displayed. -
Page 35: Dismantling And Rinsing The Dual Spout
T Rinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250 ml cold water and 1 capful of JURA milk system cleaner. Then rinse the parts thoroughly. -
Page 36: Inserting/Changing The Filter
5 Maintenance T Reassemble the milk system. T Fit the assembled individual parts back in the dual spout and press it firmly. T Fit the cover of the dual spout. Make sure the cover of the dual spout is correctly fitted. T ... -
Page 37: Cleaning The Machine
E The cleaning programme lasts approximately 20 minutes. E Do not interrupt the cleaning programme. The quality of cleaning will be impaired if you do so. E JURA cleaning tablets are available from specialised dealers. Precondition: ‘Clean machine’ is displayed. T Press the Rotary Switch. - Page 38 The operation is interrupted, ‘Add cleaning tablet’. T Open the powder chute cover. T Insert a JURA cleaning tablet into the powder chute. T Close the cover. ‘Press the Rotary Switch’ T Press the Rotary Switch. ‘Machine is being cleaned’, water flows out of the dual spout...
-
Page 39: Descaling The Machine
If the descaling agent comes into contact with sensitive surfaces (e.g. marble), damage cannot be ruled out. T Clean up any splashes immediately. E The descaling programme lasts approximately 45 minutes. E JURA descaling tablets are available from specialised dealers. Precondition: ‘Decalcify machine’ is displayed. T Press the Rotary Switch. - Page 40 5 Maintenance T Remove and empty the water tank. T Completely dissolve 3 JURA descaling tablets in a receptacle holding 600 ml of water. This may take several minutes. T Pour the solution into the empty water tank and insert it into the machine.
-
Page 41: Cleaning The Bean Container
T Remove the water tank. T If you use a CLARIS Smart filter cartridge, remove this. T Completely fill the water tank and dissolve 3 JURA descaling tablets in it. T Leave the water tank with the descaling solution for several hours (e.g. -
Page 42: Display Messages
6 Display messages 6 Display messages Message Cause/Result Action ‘Fill water The water tank is empty. You cannot T Fill the water tank (see Chapter 3 ‘Daily tank’ prepare any products. operation – Filling the water tank’). ‘Empty coffee The coffee grounds container is full. T Empty the coffee grounds container and grounds You cannot prepare any products. -
Page 43: Troubleshooting
7 Troubleshooting 7 Troubleshooting Problem Cause/Result Action Insufficient foam is The dual spout is dirty. T Make sure the cover of the dual spout is produced when the correctly fitted. milk is frothed or T Clean the milk system in the dual spout milk sprays from the (see Chapter 5 ‘Maintenance –... - Page 44 Contact customer support in your country displayed. (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’).
-
Page 45: Transport And Environmentally Friendly Disposal
8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your Z6. It should be used to protect the system machine during transport. In order to protect the Z6 from frost during transport, the system must be emptied. -
Page 46: Technical Data
9 Technical data 9 Technical data Voltage 220 – 240 V ~, 50 Hz Power 1450 W Conformity mark Energy consumption approx. 6 Wh Pump pressure static, max. 15 bar Holding capacity of water tank 2.4 l Holding capacity of bean container 280 g Holding capacity of coffee grounds max. 20 portions container Cable length approx. - Page 47 10 Index 10 Index Addresses 52 Daily maintenance 21 Adjusting the product settings 24 Descaling Aroma preservation cover Machine 39 Bean container with aroma preservation Water tank 41 cover 4 Display 5 Automatic switch-off 27 Display brightness 29 Display messages 42 Disposal 45 Bean container Double product 17...
- Page 48 Instant coffee Hot water 20 Ground coffee 18 Latte macchiato 17 Internet 10 Lungo Barista 18 Ristretto 16 JURA Two coffees 17 Contact details 52 Two espressi 17 Internet 10 Two ristretti 17 Two speciality coffees 17 Using the product selector 15...
- Page 49 10 Index Safety 6 Safety information 6 Service socket 5 Settings Permanent settings in programming mode 23 Setting up Setting up the machine 10 Short operating instructions 10 Smart Connect 5 Smart mode 28 Spout Height- and width-adjustable dual spout Hot-water spout 4 Storing products 26 Switching off 22...
-
Page 52: Jura Contact Details / Legal Information
J73920/Z6/en/201807 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 E You will find additional contact details for your country at www.jura.com. E If you need assistance with using your machine, you can find this at www.jura.com/service.
