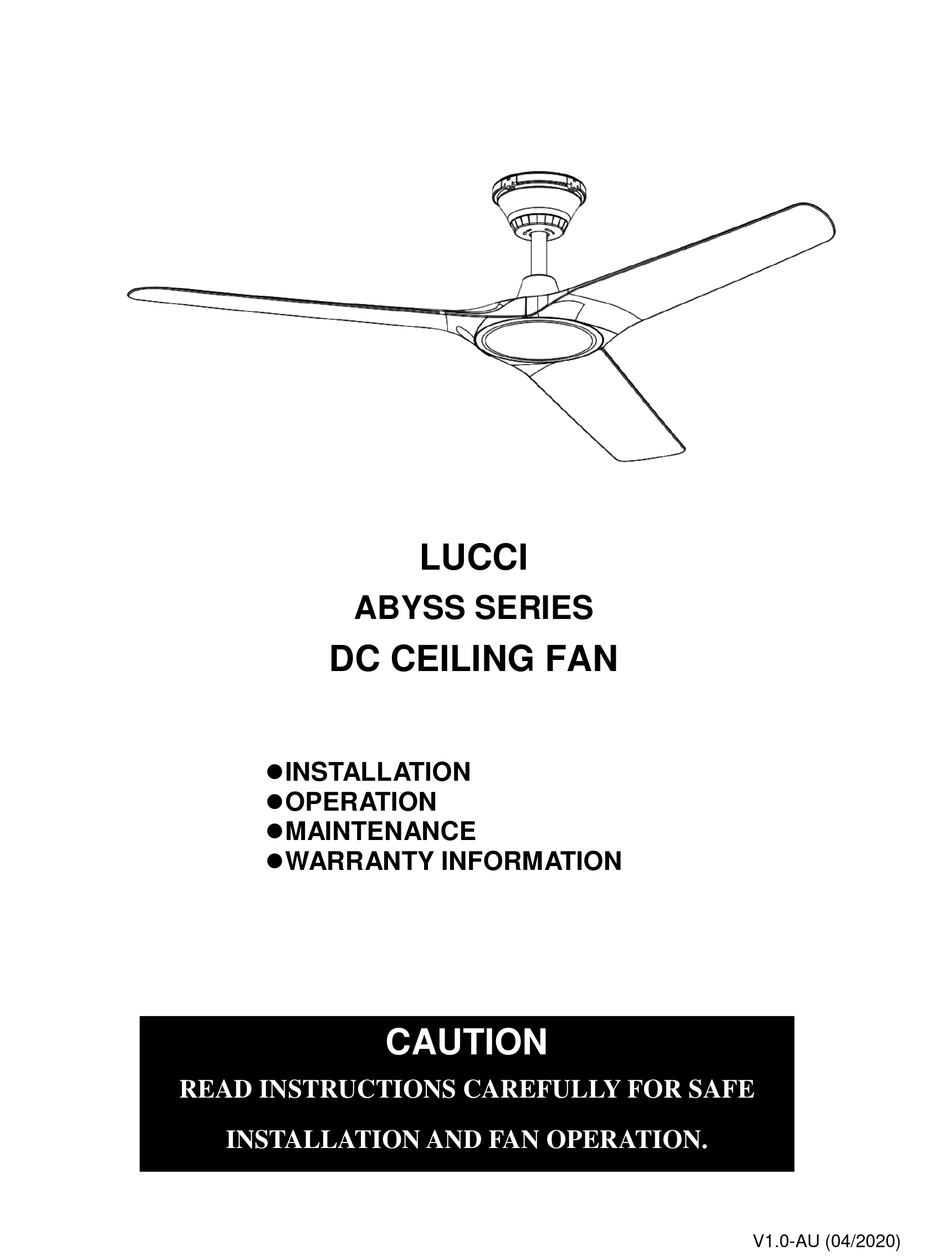

- Page 1 LUCCI ABYSS SERIES DC CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0-AU (04/2020)
-
Page 2: Safety Precautions
Airfusion Abyss Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy-saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient while still maintaining high volume air-movement and silent operation. - Page 3 Airfusion Abyss Installation Instructions Please note warranty will be void if the installation is without a means for an all-pole disconnection incorporated in the fixed wiring in accordance with the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all- pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Airfusion Abyss Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure no components are missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
Airfusion Abyss Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wirecutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET •... - Page 6 Airfusion Abyss Installation Instructions INSTALLATION OF THE MOUNTING BRACKET (Fig.4) 1. Insert the supply cable through the cable entry of the ceiling canopy top cover; (Fig.4.1) 2. Install the hanger bracket onto the ceiling; (Fig.4.1) NOTE: Check and ensure the mounting direction of the hanger bracket is correct and ensure the sealed pad is in place;...
- Page 7 Airfusion Abyss Installation Instructions INSTALLATION OF BLADE (Fig.5) 1. Turn the fan host ring cover anti-clockwise to the open position and lift up; (Fig.5.1) 2. Install the fan blades onto the motor assembly by the three fan blade screws provided; (Fig.5.2) 3.
- Page 8 Airfusion Abyss Installation Instructions Fig. 5.3 7 | P a g e This fan is suitable for indoor, alfresco and coastal areas. This product is IP66 rated and can be exposed to powerful water jets from any direction. This rating should be maintained during installation.
- Page 9 Airfusion Abyss Installation Instructions HANGING OF THE FAN (Fig.6) 1. Place the hanger onto the mounting bracket. Ensure the key slot of the hanger ball is positioned on the key pin of the mounting bracket to prevent the fan from rotating when in operation; (Fig.6.1) 2.
- Page 10 Airfusion Abyss Installation Instructions WIRING DIAGRAM (FIG. 7) WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN ISOLATION SWITCH IS REQUIRED FOR EACH CEILING FAN.
-
Page 11: Finishing The Installation
Airfusion Abyss Installation Instructions FINISHING THE INSTALLATION INSTALLATION OF THE CANOPY (Fig.8) 1. Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. 2. -
Page 12: Using Your Ceiling Fan
Airfusion Abyss Installation Instructions USING YOUR CEILING FAN REMOTE CONTROL (Fig.9) (1) Fan Off (2) Light On/Off (*No function for model without light) (3) Forward/Reverse (4) Speed control of the fan (*Fan can be turned on by pressing any speed control buttons) (5) Dimming of the light (*No function for model without light) (6) Timer (1hour, 2 hours, 4 hours) - Page 13 Airfusion Abyss Installation Instructions PAIRING REMOTE AND RECEIVER – WHEN 2 OR MORE DC CEILING FANS ARE INSTALLED IN ONE LOCATION When two or more ceiling fans are located near each other, you may desire to have the remote/receiver for each fan paired so that the operation of one fan does not affect the operation of the other fans.
- Page 14 Airfusion Abyss Installation Instructions REPAIRING THE FAN RECEIVER & REMOTE PAIRING Should the remote and receiver lose control after installation or during use, the pairing of the remote and the receiver must be repaired. Below are the operating symptoms and method to repair the pairing of the DC ceiling fan remote and receiver.
- Page 15 Airfusion Abyss Installation Instructions CHANGING AN EXTENSION ROD NOTE: When using extension rods, the lower edge of the fan blades must be more than 2.1m above floor level in Australia and more than 2.3m in Europe. Note: Extension Rod – Supplied Separately REPLACEMENT OF AN EXTENSION ROD: 1.
- Page 16 Airfusion Abyss Installation Instructions Extension cable provided with extension rod Note: Extension Rod – Supplied Separately Fig. 10.2 Fig. 10.3 15 | P a g e This fan is suitable for indoor, alfresco and coastal areas. This product is IP66 rated and can be exposed to powerful water jets from any direction.
-
Page 17: After Installation
Airfusion Abyss Installation Instructions AFTER INSTALLATION NOTE: Ceiling fans tend to move during operation as they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling, it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. -
Page 18: Technical Information
Airfusion Abyss Installation Instructions If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour Poisons Information Centre on 13 11 26 for fast, expert advice. Battery Leaks: Battery contains chemicals and should be treated as any chemical would. - Page 19 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service is required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9 am & 5 pm (EST) Monday to Friday. Please make sure you have all the ceiling fan details filled out at the end of the manual before making the call.
- Page 20 Airfusion Abyss Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME……………………………………………………………………………………………………..… ADDRESS……………………………………………………………………………………………..…… ……………………………………………………POSTCODE…………………………………………… MODEL NUMBER………………………………………………………………………………………..… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE …………………………………………………………………………….
