Summary of Contents for LUCCI ATLANTA

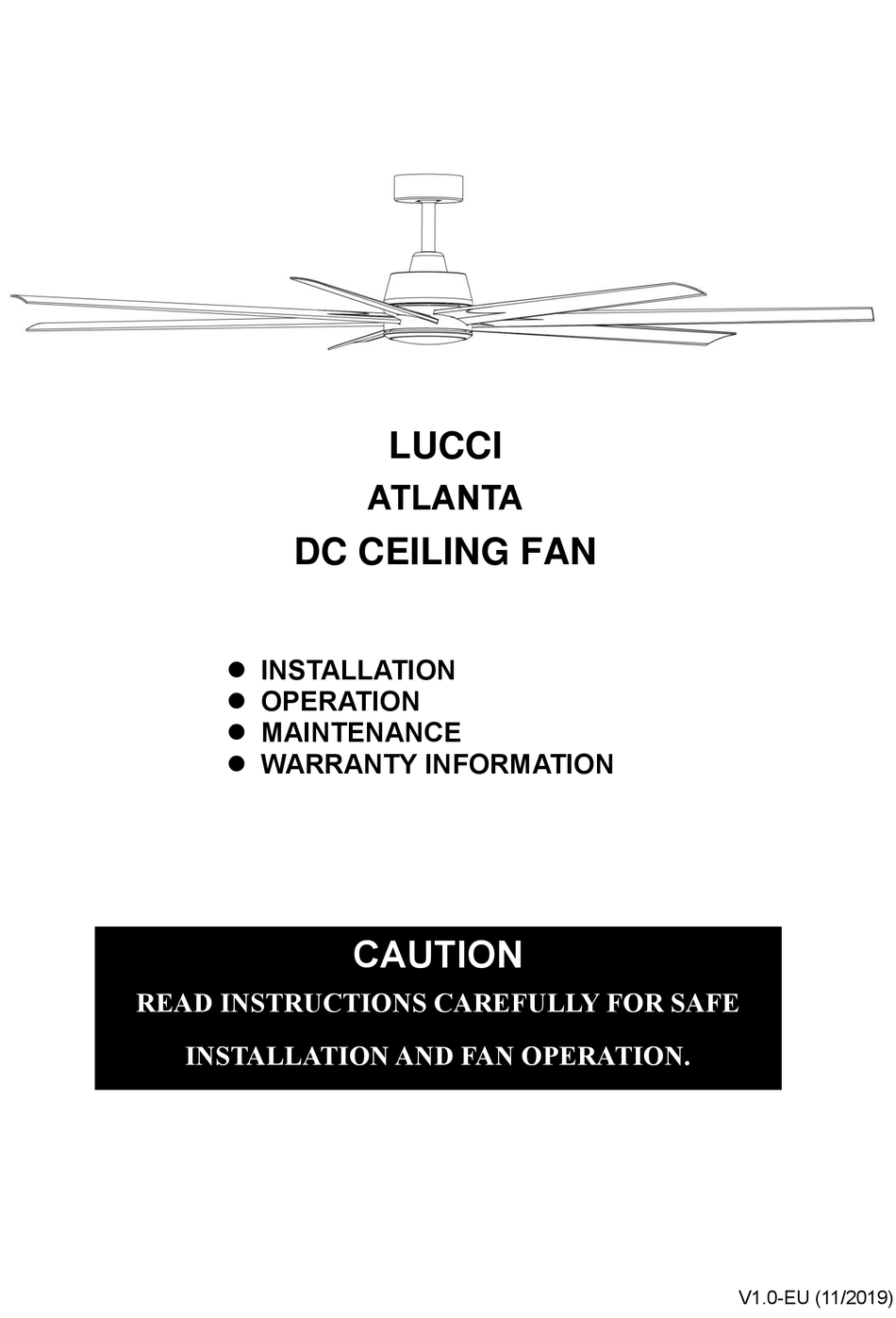

- Page 1 LUCCI ATLANTA DC CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0-EU (11/2019)
-
Page 2: Safety Precautions
Airfusion Atlanta Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. - Page 3 Airfusion Atlanta Installation Instructions Please note warranty will be void if installation is without a means for an all-pole disconnection incorporated in the fixed wiring in accordance with the wiring rules. Example: If a fan is connected to a circuit that can be isolated via an all-...
-
Page 4: Parts List
Airfusion Atlanta Installation Instructions PARTS LIST Unpack your ceiling fan carefully. Remove all parts and hardware. Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Fan
Airfusion Atlanta Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations INSTALLING THE MOUNTING BRACKET ... - Page 6 Airfusion Atlanta Installation Instructions INSTALLATION OF BLADE (Fig. 4) 1. Insert the blade into the slot of rotating member of fan motor assembly. 2. Align and engage the holes of the blade to the blade bracket. 3. Secure the blade to the fan motor assembly by tightening the 3 blade screws and washers.
-
Page 7: Hanging The Fan
Airfusion Atlanta Installation Instructions HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig. 6) Fig. - Page 8 Airfusion Atlanta Installation Instructions To fan motor Fig. 7 and light Fig. 8 7 | P a g e V1.0-EU (11/2019) ATLANTA...
-
Page 9: Finishing The Installation
Airfusion Atlanta Installation Instructions FINISHING THE INSTALLATION INSTALLATION OF THE CANOPY (Fig. 9) Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 10: Using Your Ceiling Fan
Airfusion Atlanta Installation Instructions USING YOUR CEILING FAN REMOTE CONTROL (Fig. 11) (1) Reverse control (2) Natural wind (The fan speed automatic cycle between 1 to 6 speed) (3) Speed control (4) Light On/Off (5) Fan On/Off (6) 1.5V AAA battery x 2 pcs (Included) Fig. - Page 11 Airfusion Atlanta Installation Instructions PAIRING REMOTE AND RECEIVER – WHEN 2 OR MORE DC CEILING FANS ARE INSTALLED IN ONE LOCATION When two or more ceiling fans are located near each other, you may desire to have the remote/receiver for each fan paired so that the operation of one fan does not affect the operation of the other fans.
- Page 12 Airfusion Atlanta Installation Instructions REPAIRING THE FAN RECEIVER & REMOTE PAIRING Should the remote and receiver lose control after installation or during use, the pairing of the remote and the receiver must be repaired. Below are the operating symptoms and method to repair the pairing of the DC ceiling fan remote and receiver.
-
Page 13: Care And Cleaning
Airfusion Atlanta Installation Instructions CARE & CLEANING NOTE: Always turn OFF the power at the mains switch before performing any maintenance or attempting to clean your fan. Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint finish. -
Page 14: Warranty Information
Airfusion Atlanta Installation Instructions WARRANTY INFORMATION IN AUSTRALIA / NEW ZEALAND – Please refer to the separated WARRANTY STATEMENT. IN EUROPE – If you are a European customer please contact the retail outlet where the fan was purchased for warranty service.
