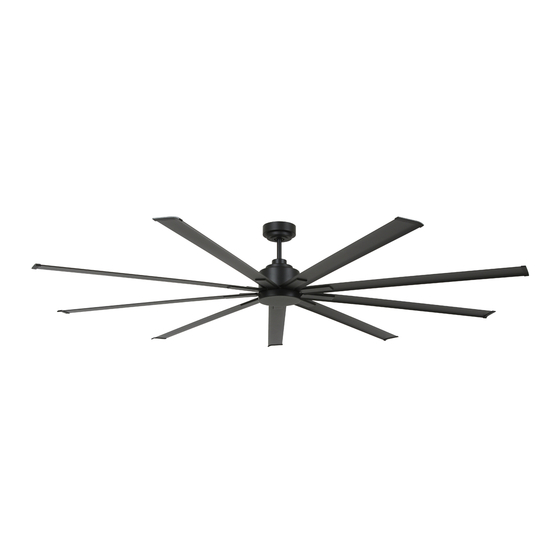

- Page 1 LUCCI AIRFUSION RESORT DC CEILING FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. Resort fan-V2.0-2014-05-6...
-
Page 2: Congratulations On Your Purchase
Airfusion Resort Installation Instructions CONGRATULATIONS ON YOUR PURCHASE Congratulations on purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. -
Page 3: Before Installation
Airfusion Resort Installation Instructions BEFORE INSTALLATION Unpack your fan and check contents. You should have the following: Fig. 1 Mounting bracket x 1 Extra motor screws x 1 (not shown) Fan assembly with hanger cover, down rod, Blade screws x 28 (not shown) -
Page 4: Installing The Fan
Airfusion Resort Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations. INSTALLING THE MOUNTING BRACKET The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the nearest objects or walls. -
Page 5: Hanging The Fan Motor Assembly
Airfusion Resort Installation Instructions HANGING THE FAN MOTOR ASSEMBLY • Lift the fan assembly onto mounting bracket. Fig. 4 • Ensure the notch of the ball joint is positioned on the stopper of the mounting bracket to prevent the fan from rotating when in operation. -
Page 6: Blade Installation
Airfusion Resort Installation Instructions INSTALL CANOPY COVER • Loosen 2 screws from the bottom of the mounting bracket. • Slide the canopy up to the mounting bracket and place the key hole on the canopy over the screw on the mounting bracket, turn canopy until it locks in place at the narrow section of the key holes, secure it by tightening the two set screws. -
Page 7: Using Your Ceiling Fan
Airfusion Resort Installation Instructions Fig. 11 Fig. 10 USING YOUR CEILING FAN Pairing Transmitter and Receiver – when 2 or more DC ceiling fans are installed in one location When two or more fans are located near each other, you may want to have the receiver/transmitter for each fan set to a different code, so that the operation of one fan does not affect the operation of the other fans. - Page 8 Airfusion Resort Installation Instructions • Press and hold the SET button of transmitter 1 for 6 seconds within 60 seconds of switching the power to the receiver of ceiling fan 1. • Now the transmitter should be paired with the receiver of ceiling fan 1. Turn ON/OFF or change the speed of ceiling fan 1 by the transmitter to check the operation.
- Page 9 Airfusion Resort Installation Instructions 5-10 SECONDS IS REQUIRED TO ALLOW THE DC FAN TO RESPOND TO THE REMOTE EACH SPEED OR FAN DIRECTION SELECTIONS, AS DC FANS INCORPORATE A SENSOR CONTROL WHICH CONTROLS THE POWER TO THE MOTOR. ○ 2 - FAN OFF BUTTON: Press the button to turn the fan off.
- Page 10 Airfusion Resort Installation Instructions Turn off the main supply to the receiver for more than 30 seconds and turn on the main supply to receiver again. Press and hold the SET button on the remote for 6 seconds within 60 seconds of turning the power on to the receiver.
- Page 11 Airfusion Resort Installation Instructions Please repeat the (A)-(C) steps to check the function. If the issues still persist after following point (A) to (D) and there is still no control, then please contact the local retailer for a new remote or transmitter.
- Page 12 Airfusion Resort Installation Instructions FAN CARE AND WARRANTY INFORMATION • Periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free cloth to avoid scratching the paint/plated finish. Please make sure the fan is not operating when cleaning.
-
Page 13: Troubleshooting Checklist
Airfusion Resort Installation Instructions TROUBLE-SHOOTING CHECKLIST Always check the “Trouble Shooting Checklist” included in this booklet before calling for service. Unnecessary calls are inconvenient for all and can attract a service charge. For your safety, ensure the ceiling fan is OFF before carrying out any troubleshooting. -
Page 14: Technical Information
Airfusion Resort Installation Instructions TECHNICAL INFORMATION AIRFUSION RESORT Rated Voltage Rated power (motor) Battery for remote SERIES DC FAN models RESORT 80” FAN 220-240VAC 1 x 12V 23AE WARRANTY CONDITIONS IN AUSTRALIA / NEW ZEALAND – Please refer to the separated WARRANTY STATEMENT. - Page 15 Airfusion Resort Installation Instructions 6. Except in the case of pre-packed integrated light models, light fittings attached to the fan are not covered by this warranty. Where the fan is pre-packed complete with a light, the light fitting will be covered by warranty to electrical defect.
