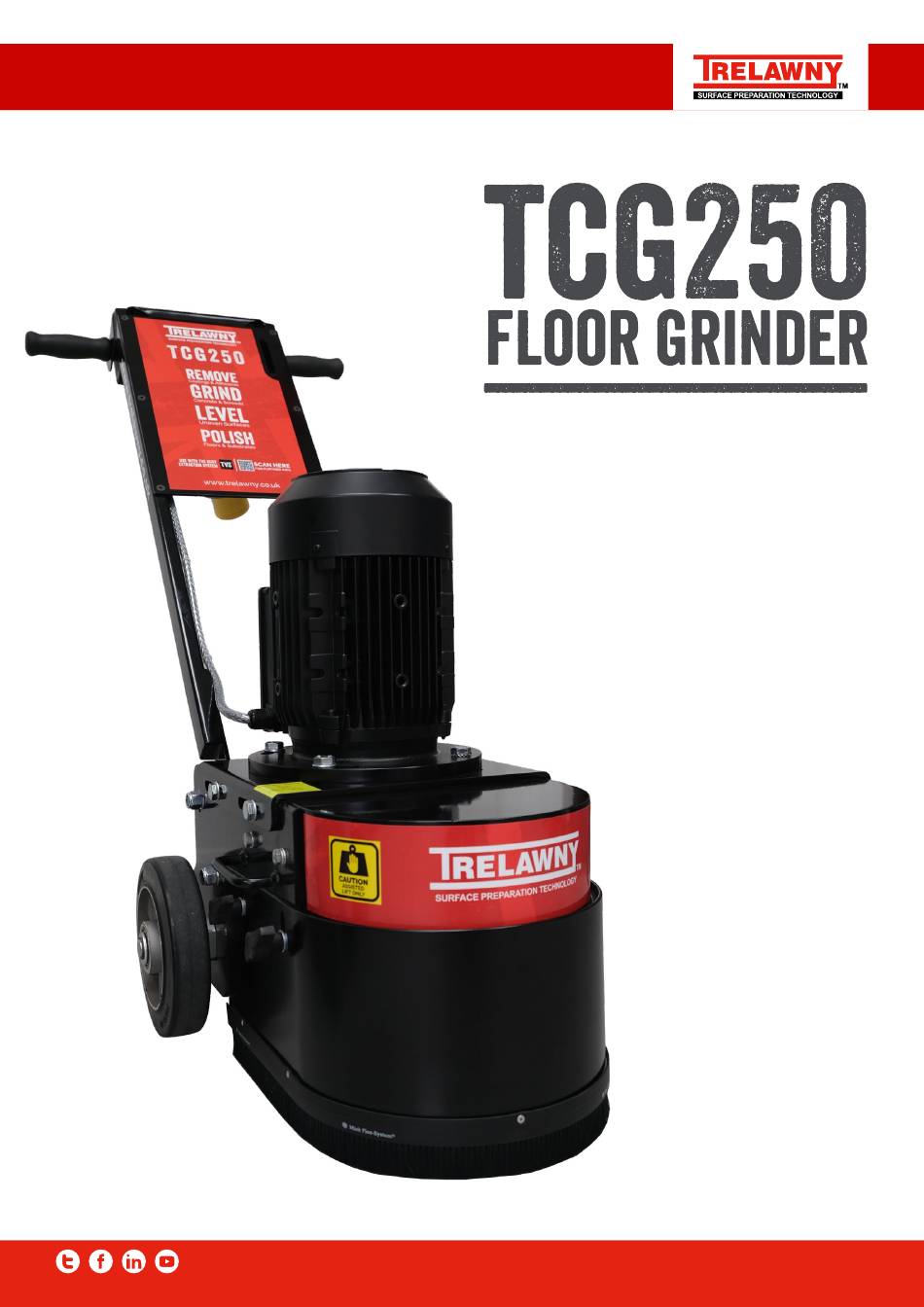

  • Page 1 OPERATION AND MAINTENANCE MANUAL www.trelawny.co.uk www.trelawny.co.uk...

  • Page 2: Table Of Contents

    Technical Specification ............................13 INTRODUCTION Your new Trelawny SPT power tool will more than satisfy your expectations. It has been manufactured under stringent Trelawny SPT Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service.
  • Page 3 Declaration of Conformity No. 2021/3/01 Product: Floor Preparation Machine Series reference: TCG (electric, air & petrol) Models: TCG250 & TCG500 Manufacturer / Authorised Representative Name: Trelawny SPT Ltd. Address: 13 Highdown road, Sydenham Ind. Est, Leamington Spa. Warwickshire. United Kingdom CV31 1XT.
  • Page 4 Declaration of Conformity No. 2021/3/01 Product: Floor Preparation Machine Series reference: TCG (electric, air & petrol) Models: TCG250 & TCG500 Manufacturer / Authorised Representative Name: Trelawny SPT Ltd. Address: 13 Highdown road, Sydenham Ind. Est, Leamington Spa. Warwickshire. United Kingdom CV31 1XT.

  • Page 5: Declaration Of Conformity

    73/23/EC DIREKTIVA O STROJIH Z NIZKO VOLTAŽO (nanaša se samo na proizvode na električni pogon) MEGFELELŐSÉGI NYILATKOZAT UYGUNLUK BEYANI Mi. A "Trelawny SPT Limited" cég Trelawny SPT Limited Felelösségünk tudatában kijelentjük, hogy mint a termék szállitója/gyartója AÞaöýdaki, üretim ve tedarikinden tek baÞýna sorumlu olduöu ürünün Termék neve...

  • Page 6: Foreword

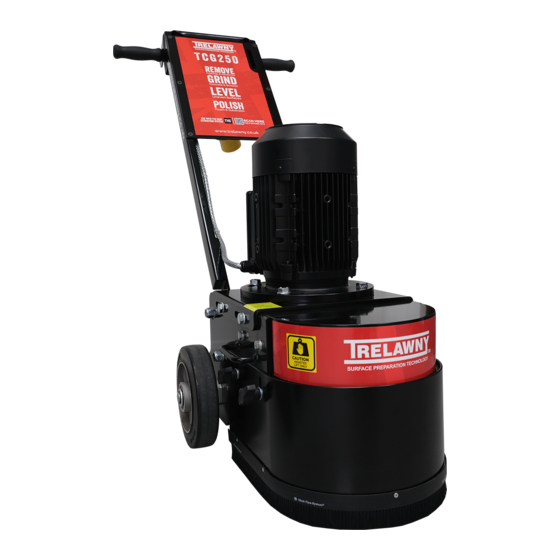

    TCG250 Floor Grinder FOREWORD Thank you for your purchase of the TCG250 Floor Grinder. This In the unlikely event that you experience problems with your manual contains the necessary maintenance information for TCG250 Floor Grinder, please do not hesitate to contact your you to ensure proper operation and care for this machine.

  • Page 7: Safety

    Be very careful with hot components. The exhaust and other parts of the engine are hot during operation and can remain hot for some time after shutdown. WARNING! Always observe safe-working practices at all times. www.trelawny.co.uk...
  • Page 8 TCG250 Floor Grinder Organisational measures This operating manual must always be at hand at the place The personal protection equipment should consist of of use of the machine and must be accessible to the person the following parts: operating the machine. It is recommended that only persons...

  • Page 9: Risk Of Hand Arm Vibration

    Media types and applications Trelawny Grinders are supplied with either a single grinding disc incorporating 20 “segments” or the versatile grinding Diamond disc machine “quick change” grinding blocks. Use of either from course...
  • Page 10 Belt installation & Adjustment section. machines is not recommended and can cause operating problems, particularly in conjunction with poor supplies, The TCG250 is supplied with a specially commissioned where excessive voltage drops will be encountered and electric motors and starter switch assembly.
  • Page 11 ‘hold to run’ lever to stop the machine, inspect the or food industries, Trelawny can supply special HEPA filtered finish produced. If necessary change the grade of grinding vacuums which are suitable for these applications.

  • Page 12: Maintenance

    Drive system maintenance either side of the chassis. Loosen the engine/motor mounting The drive system on the TCG250 is virtually maintenance free plate bolts and slide the engine/motor forward. Slide the belt and will give a long service life without attention providing the off the drive pulley and then remove it from the engine/motor belt tension is set correctly.
  • Page 13 To fit the new brush, align one end of the brush with the end of the guard and use a suitable drift to knock the brush onto the metal guard, working along until it is securely fitted. www.trelawny.co.uk...
  • Page 14 TCG250 Floor Grinder Checking chart Based on normal & safe operating procedures and hours Before Operation After Operation Monthly Every 3 Months Every Year If Damaged/Worn Check Complete Machine Clean Check (Damage & Tension) Pulleys & Belt Tension Replace Check...
  • Page 15 See our terms and conditions of sale on our website for more Check the machine for completeness and any visual signs information. of damage, incurred during transit. Report any issues immediately to your supervisor, who should inform Trelawny straight away. Secure the machine against accidental start-up and rolling away. www.trelawny.co.uk...

  • Page 16: Assembly

    Use above information in conjunction with the Honda Operation and Maintenance Manual. If problem has not been cured by any of the above actions, contact your local Trelawny SPT dealership for assistance. All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited.

  • Page 17: Exploded

    EXPLODED DIAGRAM EXPLODED VIEW www.trelawny.co.uk...

  • Page 18: Parts List

    TCG250 Floor Grinder parts list Item NO. PART NO. DESCRIPTION Item NO. PART NO. DESCRIPTION 822.2000 Rubber grip (x2) 831.0820 M8 x 20 hex bolt 345.9220 Vacuum takeoff tube 811.1008 M8 shake proof washer 3/8” ball valve/bulkhead 828.0138/ 826.0138/ 819.0385 345.9223...
  • Page 19 861.2005 230v control system part no: 861.2007 415v control system part no: 861.2009 Button assy Part no: 861.2018 These are not user-serviceable parts. In the event of failure, new assemblies will be need to be obtained from Trelawny. www.trelawny.co.uk...
  • Page 20 TCG250 Floor Grinder Media Types - Metal Bond Tools IMAGE PART NO.  DESCRIPTION  PCD Removal Diamond Anti-clockwise 365.5495L For removal of coatings, adhesives & toppings PCD Removal Diamond Clockwise 365.5495R For removal of coatings, adhesives & toppings 16 Grit Single (Quick Release) Soft Bond 365.5500...
  • Page 21 2. If the result of the grinding causes uneven floor wear or rapid block wear check the hardness / coarseness of the blocks v’s target floor surface. 3. Keep the machine moving at all times during operation for the best results. www.trelawny.co.uk...
  • Page 22 TCG250 Floor Grinder LAFERT ELECTRIC MOTOR EXPLODED VIEW LAFERT ELECTRIC MOTOR EXPLODED VIEW 110v & 230v Motors Only the most commonly used motor components are carried in stock at Trelawny SPT Ltd. These items are listed under the Lafert Motor heading in the parts list on the previous page.
  • Page 23 www.trelawny.co.uk...
  • Page 24 All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited. This applies to trademarks, model denominations, part numbers and drawings. Use only genuine Trelawny spares. The use of non-Trelawny spare parts invalidates the warranty. PAGE 24...
  • Page 25 www.trelawny.co.uk...
  • Page 26 TCG250 Floor Grinder notes PAGE 26...
  • Page 27 www.trelawny.co.uk...
  • Page 28 Trelawny House, 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Telephone: +44 (0)1926 883781 Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk Website: www.trelawny.co.uk Telephone: +44 (0)1926 883781 Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk...
