TFS230 FLOOR STRIPPER
OPERATION & MAINTENANCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFS230 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trelawny TFS230

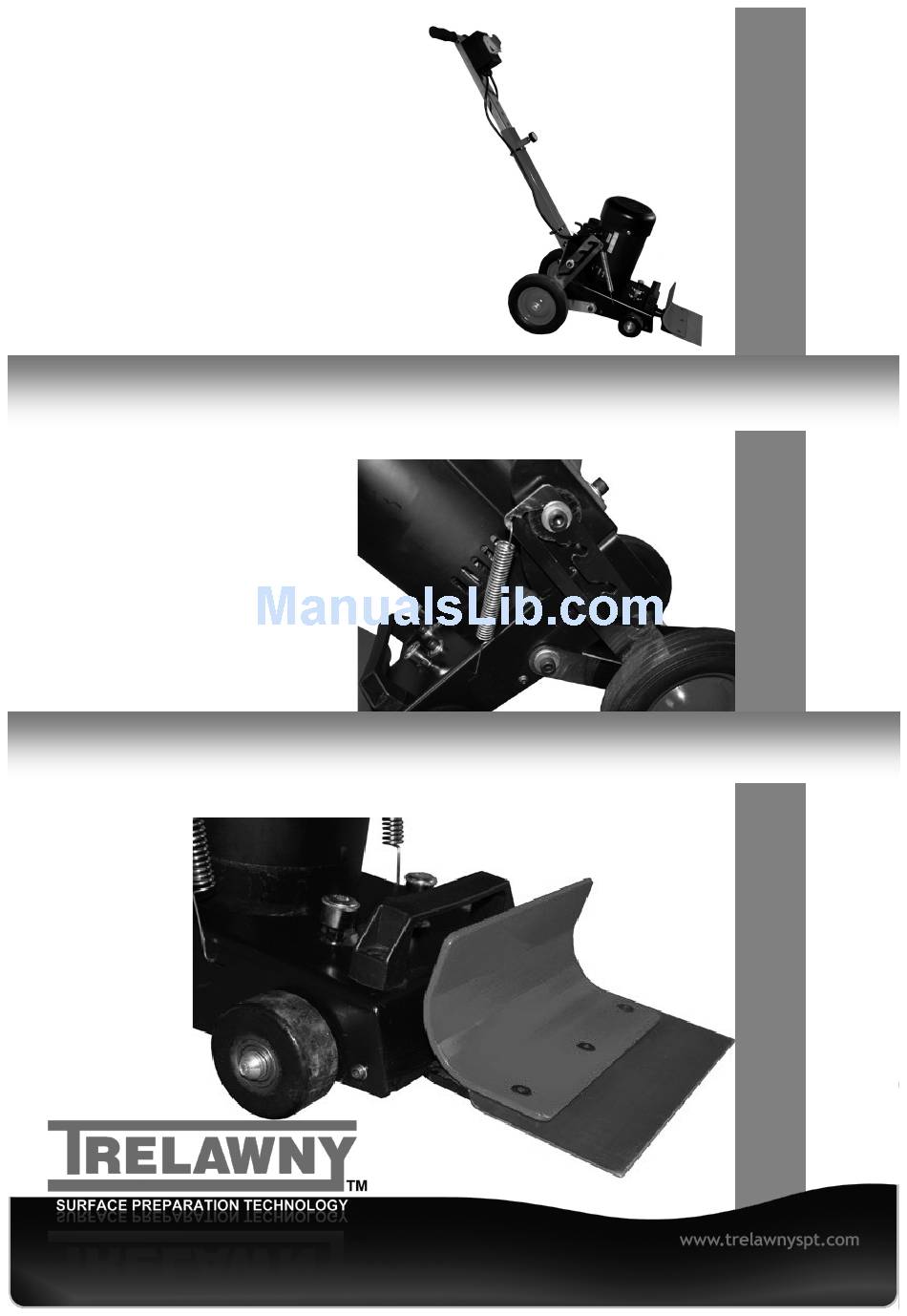

  • Page 1 TFS230 FLOOR STRIPPER OPERATION & MAINTENANCE...
  • Page 2: General Information

    Trelawny TFS230 Floor stripper. These tools may cause Hand-arm Vibration Syndrome injury if their use Do not allow the tool to run Before operating the TFS230 this is not adequately managed. unattended. manual must be read and understood Do not modify this tool in any way, as...
  • Page 3 ASSEMBLY INSTRUCTIONS There are three main parts: Main body Lower handle Upper handle STEP1 Fit lower handle to main body with 4 bolts and washers. STEP2 Pull the knob on LOWER HANDLE and slide UPPER HANDLE into lower handle tube. Secure by turning knob.
  • Page 4: Handle Adjustment

    HANDLE ADJUSTMENT Adjust handle up and down by unscrewing the knob and pulling it out slightly and sliding the upper handle to the desired height. Secure it after you set the handle height. STEP 1: STEP 2: STEP 3: Loosen the knob Set the handle height Secure the knob and pull...
  • Page 5: Blade Angle Adjustment

    BLADE ANGLE ADJUSTMENT Step 1: Place foot on the rear pedal and then push the handle forward. Step 2: When you reach the required angle remove foot from the pedal and the adjustment mechanism engage.
  • Page 6: Maintenance

    MAINTENANCE LUBRICATION Turn grease cap clockwise to lubricate the slide mechanism on a daily basis (See diagram below) If the cap is fully tightened, refill with grease. Turn anti- Lightly oil the adjustment mechanism clockwise and remove and replenish. (See diagram regularly to ensure smooth operation.
  • Page 7 MAINTENANCE BLADE REPLACEMENT Loosen the three Allen screws on top of the blade holder which clamp the blade in position, remove blade holder and replace the blade. Replace the holder, replace and tighten the retaining screws.
  • Page 8: Exploded View

    EXPLODED VIEW...
  • Page 9: Parts List

    PARTS LIST ITEM No PART No DESCRIPTION 323.9220 Sliding set 323.9225 Blade holder fixing set 323.9230 Blade holder set 323.3509A Blade 323.3509 Blades (Pack of 5) 323.9168 Switch box, CW/Switch and power lead 323.9103 Handle set 323.2000 Rubber handle set 323.9167 110v Motor 323.9146...
  • Page 10: Wiring Diagram

    WIRING DIAGRAM ① 1- MOTOR CABLE EARTH (Yellow/Green) ② ③ 2 - MOTOR LIVE + (Brown) ④ 3 - MOTOR NEUTRAL - (Blue) ⑤ 4 - SUPPLY LIVE + (Brown) ⑥ 5 - SUPPLY NEUTRAL - (Blue) 6 - SUPPLY EARTH (Yellow/Green) 230v Motors Take particular care when...
  • Page 11: Technical Specifications

    Use only genuine Trelawny spares. The use of non-Trelawny spare parts invalidates the warranty. SURFACE PREPARATION TECHNOLOGY Trelawny SPT Ltd Trelawny House, 13 Highdown Road, Sydenham Industrial Estate, Leamington Spa, Warwickshire, CV31 1XT, United Kingdom Telephone: +44 (0)1926 883781 Fax: +44 (0)1926 450352 Email: sales@trelawny.co.uk...
