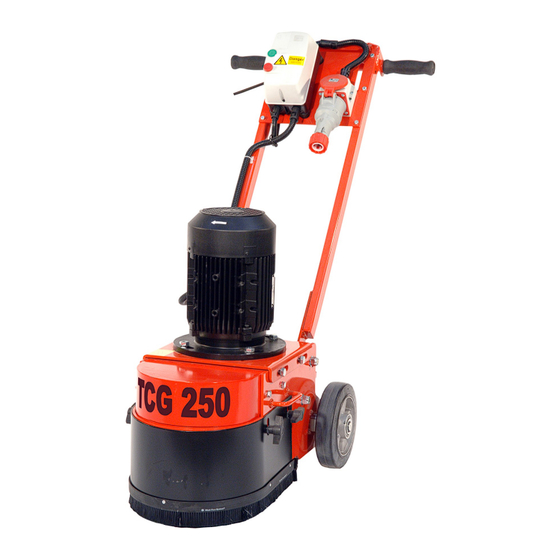

TCG 250 Floor Grinder
Operation and Maintenance Manual
www.trelawnyspt.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCG 250 and is the answer not in the manual?

Questions and answers

Related Manuals for Trelawny TCG 250

Summary of Contents for Trelawny TCG 250

  • Page 1 TCG 250 Floor Grinder Operation and Maintenance Manual www.trelawnyspt.co.uk...

  • Page 2: Operation

    Technical Department. TCG250, please do not hesitate to exhaust gases are poisonous. BE VERY CAREFUL WITH HOT contact your local Trelawny dealer or We strongly advise you to visit the COMPONENTS. The exhaust and agent. alwa ys welc om e Health &...

  • Page 3: Pre-Start Check

    OPERATION In addition, scarifying blocks and Each unit is fully tested and the 230v and 415v Motors wire brushes are available which can overload relays have been calibrated Take particular care when using be fitted in place of the grinding a n d s e t a c c o r d i n g...

  • Page 4: Machine Storage

    Ensure that the machine is started for use in the pharmaceutical or food by neat fuel if switched off from high on a level surface. industries, Trelawny can supply engine revolutions.) Open the engine fuel tap. special HEPA filtered vacuums Release the „hold to run‟...

  • Page 5: Maintenance

    MAINTENANCE Belt Installation & Grinding Block Diamond Disc/Q.R. Adjustment Replacement Plate Replacement Switch off the engine powered Switch off the engine powered versions and allow the engine to Removal versions and allow the engine to cool completely, disconnect electric R e m o v e t h e t o p c o v e r...

  • Page 6: Troubleshooting

    Use above information in conjunction with the Honda / Briggs and Stratton Operation and Maintenance Manual. If problem has not been cured by any of the above actions, contact your local Trelawny SPT dealership for assistance.

  • Page 7: Exploded View

    EXPLODED VIEW...

  • Page 8: Parts List

    PARTS LIST Item Part No. Description Item Part No. Description 822.2000 Rubber grip (x2) 831.0820 M8 x 20 hex bolt 345.9220 Vacuum takeoff tube 811.1008 M8 shake proof washer 828.0138/ 3/8” ball valve/ 345.9223 Belt guard 826.0183/ bulkhead connector/ 819.0385 hose tail 350.9121 Wheel (x2)
  • Page 9 ITEM Part Number DESCRIPTION ITEM Part Number DESCRIPTION OTHER PARTS NOT SHOWN IN EXPLODED VIEW 230v Lovato Starter Box Components 320.7110 110v starter assembly Contactor (Lovato) 230v 841.2616 320.7112 230v starter assembly 841.2625 Overload Relay 230v/415v 4-6.5amp 320.7114 415v starter assembly 841.2621 Start Contact (Lovato) all versions 841.2104...
  • Page 10 PARTS LIST model specific Model variant by part Motor/engine/starter Motor bolts Motor nuts Motor washers number (D=Diamond Disc) N4 shaft prior to 2014 350.9500 Honda N4 345.2000 shaft 806.5610 (x2) 824.0810 (x2) 811.1008 (x8) 5.5HP petrol 345.9500 Honda N1 shaft 350.9500 Honda N4 345.2000D shaft...
  • Page 11 Media Types - Metal Bond Tools Image Part Number Tool Description PCD Removal Diamond Anti Clock Wise 365.5495L For removal of coatings, adhesives & toppings PCD Removal Diamond Clock Wise 365.5495R For removal of coatings, adhesives & toppings 16 Grit Single (Quick Release) Soft Bond 365.5500 For very course grinding and thin coating removal 16 Grit Double (Quick Release) Soft Bond...
  • Page 12 Media Types - Resin Bond Tools Image Part Number Tool Description 365.5605 50 Grit Hybrid 365.5610 100 Grit Hybrid 365.5620 200 Grit Hybrid 365.5602A 200 Grit Resin Bond 365.5604A 400 Grit Resin Bond 365.5608A 800 Grit Resin Bond 365.5618A 1500 Grit Resin Bond 365.5635A 3000 Grit Resin Bond 350.5666...
  • Page 13 LAFERT ELECTRIC MOTOR EXPLODED VIEW 110v & 230v Motors Only the most commonly used motor components are carried in stock at Trelawny SPT Ltd. These items are listed under the Lafert Motor heading in the parts list on the previous page.

  • Page 14: Wiring Diagrams

    WIRING DIAGRAMS...
  • Page 15 WIRING DIAGRAMS...

  • Page 18: Technical Specifications

    All rights reserved. Any unauthorised use or copying of the contents or part thereof is prohibited. This applies to trademarks, model denominations, part numbers and drawings. Use only genuine Trelawny spares. The use of non-Trelawny spare parts invalidates the warranty.
