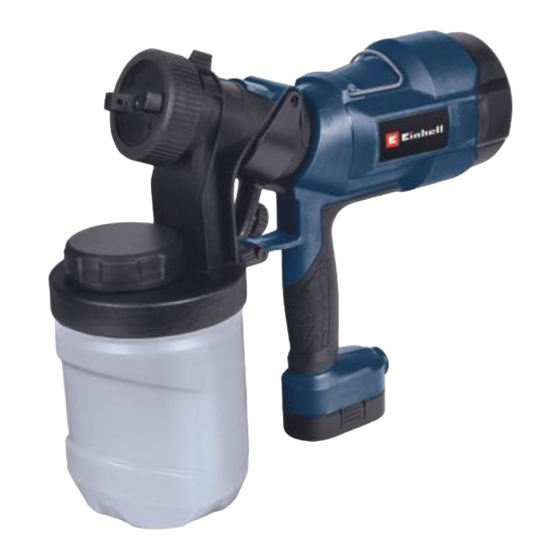

- Page 1 BT-FSS 500 Original operating instructions Paint spray system electric Art.-Nr.: 42.600.36 I.-Nr.: 21011 Anl_BT_FSS_500_EX_UK.indb 1 Anl_BT_FSS_500_EX_UK.indb 1 05.10.2021 12:45:24 05.10.2021 12:45:24...
- Page 2 - 2 - Anl_BT_FSS_500_EX_UK.indb 2 Anl_BT_FSS_500_EX_UK.indb 2 05.10.2021 12:45:25 05.10.2021 12:45:25...
- Page 3 - 3 - Anl_BT_FSS_500_EX_UK.indb 3 Anl_BT_FSS_500_EX_UK.indb 3 05.10.2021 12:45:26 05.10.2021 12:45:26...
- Page 4 50-300 mm 9/11 - 4 - Anl_BT_FSS_500_EX_UK.indb 4 Anl_BT_FSS_500_EX_UK.indb 4 05.10.2021 12:45:30 05.10.2021 12:45:30...
-
Page 5: Table Of Contents
Table of contents 1. Safety regulations 2. Layout and items supplied 3. Proper use 4. Technical data 5. Before starting the equipment 6. Operation 7. Replacing the power cable 8. Cleaning, maintenance and ordering of spare parts 9. Disposal and recycling 10. - Page 6 Danger! - Read the operating instructions to reduce the risk of injury. Caution! Wear ear-muff s. The impact of noise can cause damage to hearing. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials.
-
Page 7: Safety Regulations
Danger! b) Avoid bodily contact with earthed sur- When using the equipment, a few safety pre- faces such as pipes, heating, ovens and cautions must be observed to avoid injuries and fridges. The risk of electric shock is increa- damage. Please read the complete operating sed if your body is earthed. - Page 8 circumstances. 5. Service Wear suitable work clothes. Do not wear a) Have your electric tool repaired only by loose clothing or jewellery. Keep hair, clo- trained personnel using only genuine thes and gloves away from moving parts. spare parts. This will ensure that your elec- Loose clothing, jewellery or long hair can get tric tool remains safe to use.
-
Page 9: Layout And Items Supplied
• Properly dispose of residual paint and 17. Cleaning brush cleaning agents in accordance with local laws 18. Safety catch and regulations. 19. Air cap (1× per spraying unit) • Residual paint must be taken to a suitable 20. Nozzle (1× per spraying unit) collection point. -
Page 10: Technical Data
The equipment is to be used only for its prescri- The stated vibration emission levels and stated bed purpose. Any other use is deemed to be a noise emission values can also be used to make case of misuse. The user / operator and not the an initial assessment of exposure. -
Page 11: Operation
Approved materials Fitting the spraying unit to the motor unit • Indoor wall paint (emulsions etc.) 1. Swing the safety catch (18) on the motor unit • Solvent-based and water-soluble lacquers (2) down as far as possible (see Fig. A). •... - Page 12 6.1.2 Measuring the viscosity (Fig. 3) Position C 1. Use the viscosity test container (15) to check Pattern: Round cone whether your paint has the required viscosity Use: Corners, edges, surfaces that are diffi cult to (see Fig. C). Fill the viscosity test container access with the required spray material until comple- tely full.
- Page 13 pre-fi tted 1.0 mm nozzle and 900 ml tub volume, 11. Screw the union nut clockwise onto the spray- and for spray materials of higher viscosity the ing unit. manufacturer recommends the 2.5 mm or 3.5 mm nozzle set. 6.7 Spraying techniques 1.
-
Page 14: Replacing The Power Cable
7. Replacing the power cable 11. Fit the spraying unit back on the motor unit as described in the section “Attaching/replacing the spraying unit”. Danger! 12. Insert the power plug into a properly installed If the power cable for this equipment is damaged, socket outlet. - Page 15 Spare part number of the required spare part 8.5 Replacing the air fi lter For our latest prices and information please go to Important! Risk of damage! www.Einhell-Service.com Improper handling of the fi ne paint sprayer could result in damage. Tip! For good results we •...
-
Page 16: Disposal And Recycling
9. Disposal and recycling The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. -
Page 17: Viscosity Table
11. Viscosity table Spray material Thinning recommendation Nozzle diameter Indoor wall paint Thin by approx. 5–10 % (max. 100 DIN-sec) 2.5 mm Glazes, wood preservatives, stains, Unthinned (max. 40 DIN-sec) 1.0 mm oils, disinfectants Solvent-based or water-soluble Thin by 0–10 % (max. 40 DIN-sec) 3.5 mm lacquers, primers, vehicle topcoats, 2-component paints, clear lacquers... -
Page 18: Troubleshooting Guide
12. Troubleshooting guide Fault Possible cause Remedy No material at the nozzle. - Nozzle is clogged. - Clean the nozzle. - Intake tube is - Clean the intake tube. clogged. - Setting screw for - Turn the setting screw for controlling the ma- controlling the mate- terial volume to the right (+). - Page 19 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes - 19 - Anl_BT_FSS_500_EX_UK.indb 19...
- Page 20 * Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases: •...
- Page 21 5. To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi...
- Page 22 Notifi ed Body: (EU)2016/425 2011/65/EU_(EU)2015/863 Standard References: EN 60745-1:2009+A11; EN 50580:2012+A1; EN 55014-1:2006+A1+A2; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013 Einhell Germany AG · Wiesenweg 22 · D-94405 Landau/Isar Landau/Isar, den 23.09.2021 Andreas Weichselgartner/General-Manager Jeff Dong/Product-Management First CE: 18 Archive-File/Record: NAPR026416 Art.-No.: 42.600.36...
- Page 23 Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom declare the conformity to UK standards and legislation was assessed for: Paint spray system electric BT-FSS 500 (Einhell) UK legislation Simple Pressure Vessels (Safety) Regulation...
- Page 24 EH 10/2021 (01) Anl_BT_FSS_500_EX_UK.indb 24 Anl_BT_FSS_500_EX_UK.indb 24 05.10.2021 12:45:34 05.10.2021 12:45:34...
