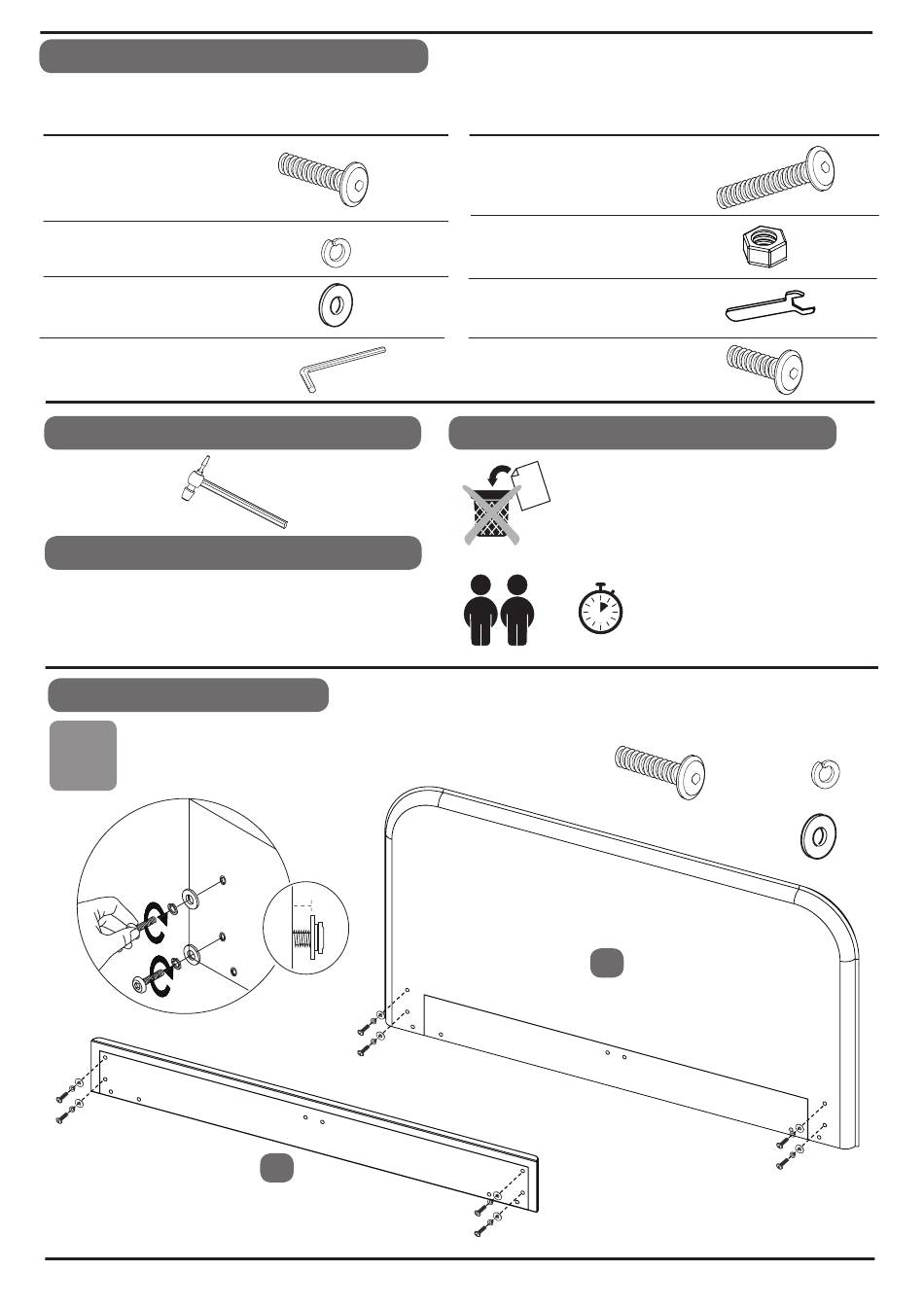

Time4Sleep ELONA Assembly Instructions page 2

Fittings Checklist
Code Description
Bolts (M8x30mm) for
fitting side rails (3) and
A
Centre support bar (5) to
headboard & footboard (1&2)
B Spring Washers (for M8 bolts)
Flat Washers (for M8 bolts)
C
D Allen Key (for M8 bolt)
Additional Tools Required
Care & Maintenance
In the unlikely event of missing or damaged parts,
please contact your retailer. Please have this guide at
hand quoting the part code reference numbers shown
when requesting spare or replacement parts.
Bed Assembly
Stage
1
B C
A
HARDWARE NEEDED FOR BED ASSEMBLY
Qty
x28
x32
x48
x1
10mm
2
Page 2 of 5
Code Description
Bolts (M8x45mm) for fitting
Centre Support Bar Legs (7) to
E
Centre Support Bar (6)
M8 nuts for fitting centre bar
support legs (7) and metal
F
legs (5)
G Spanner (for M8 nut)
Bolts (M8x25mm) for
fitting metal legs (5) to
H
angle brackets (4)
General Hints & Tips
Please retain your assembly instruction and
tools provided for future use.
Periodically check that all bolts are still tight
Approximate time to
assemble this product
A
1
Qty
x4
x12
x1
x8
x8 B x8
C x8
