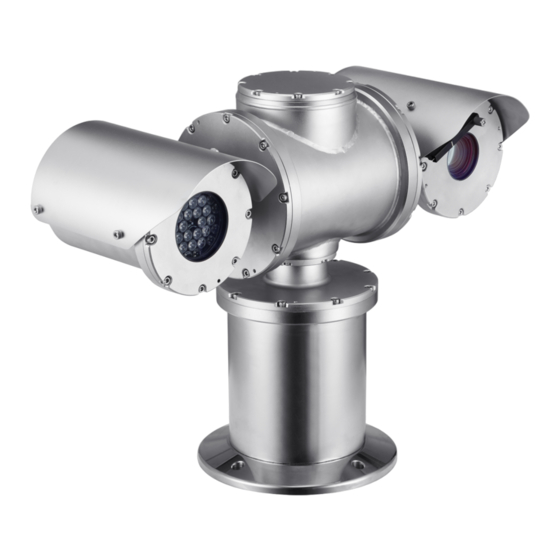

Wisenet TNU-6322ER User Manual
  1. Manuals
  2. Brands
  3. Wisenet Manuals
  4. Security Camera
  5. TNU-6322ER
  6. User manual

Wisenet TNU-6322ER User Manual

Hide thumbs Also See for TNU-6322ER:
Table of Contents

Advertisement

Quick Links

NETWORK CAMERA
User Manual
TNU-6322ER/TNU-6322E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TNU-6322ER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet TNU-6322ER

Summary of Contents for Wisenet TNU-6322ER

  • Page 1 NETWORK CAMERA User Manual TNU-6322ER/TNU-6322E...
  • Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 7. Make sure the power supports 24Vac/6A/50-60Hz (1 device for TNU-6322E) or 24Vac/6A/50- accessories not provided by us, the features/performance/safety of the product cannot be 60Hz (2 devices for TNU-6322ER 2) before powering on the devices. guaranteed. Power in excess of the rated voltage may cause a fire.

  • Page 4: Table Of Contents

    Recommended PC Specifications Password setting NAS recommended specs Login What’s Included (TNU-6322ER) Camera Web Viewer Setup What’s Included (TNU-6322E) At a Glance (TNU-6322ER) At a Glance (TNU-6322E) APPENDIX Troubleshooting INSTALLATION & CONNECTION Installation (TNU-6322ER, TNU-6322E) Connecting with other Device NETWORK CONNECTION AND...

  • Page 5: Recommended Pc Specifications

    RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. Recommended products : QNAP NAS, Synology NAS ~ Recommended browser: Chrome ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 6: What's Included (Tnu-6322Er)

    WHAT’S INCLUDED (TNU-6322ER) Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Appearance Item Name Quantity Description Options (not included)

  • Page 7: What's Included (Tnu-6322E)

    WHAT’S INCLUDED (TNU-6322E) Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Appearance Item Name Quantity Description Options (not included) Rotating explosion-protected Wall bracket Used to install a camera on the wall...

  • Page 8: At A Glance (Tnu-6322Er)

    AT A GLANCE (TNU-6322ER) AT A GLANCE (TNU-6322E) Appearance Appearance Item Description Item Description Main Housing Built-in main circuit board and tilt motor system. Main Housing Built-in main circuit board and tilt motor system. IR housing Built-in IR LED circuit board.

  • Page 9: Installation & Connection

    ~ The weight of TNU-6322ER and TNU-6322E is approximately 36kg (without Pedestal) and 25kg (without pedestal), respectively. When installing the product, at least two people wearing a pair of non-slip gloves are needed for safety.
  • Page 10 Sunshield The weight of TNU-6322ER and TNU-6322E is approximately 36kg (without Pedestal) and 25kg (without pedestal), respectively. It is highly recommended to wear proper non-slip gloves and the transporting rope. You need to be very careful when lifting.
  • Page 11 Optional Accessories for Installation ` Mounting the wall bracket For your easier installation, you can purchase appropriate optional accessories available. ` Mounting the pedestal <TNU-6322ER> <TNU-6322ER> <TNU-6322E> 1. Assemble the wall bracket under the base housing using 4 wrench bolt (M8X15).
  • Page 12 & connection ` How to install wall/pole brackets on the system ` How to install a corner bracket on the system <TNU-6322ER> <TNU-6322ER> <TNU-6322E> <TNU-6322E> 1. Assemble corner bracket sides with the wall bracket using a set of 4 bots.

  • Page 13: Connecting With Other Device

    CONNECTING WITH OTHER DEVICE How to install the grounding wires Ethernet External cables <TNU-6322ER> <TNU-6322ER> Ethernet <TNU-6322E> External cables 1. Insert the grounding wires into the cable terminal. 2. Clamping the terminal using cable clamper tool. <TNU-6322E> 3. Connecting earth cable to external earth bar.
  • Page 14 How to connect external cables for each model Connect external cables by referring the table below. Wire Type (AWG) Cable Length (Max.) Connect alarm input/output cables for each terminals one by one. TNU-6322ER Network Cable Specification Label print COLOR Description...
  • Page 15 How to connect the RJ45 waterproof cable to a LAN cable How to interconnect Washer pump It is recommended that the camera use the following washer pump. 1. Insert it through the arrow direction. ~ Honeywell EXWJ400-10A Refer to the washer pump manual for details on connection of washer pump and usage. 2.

  • Page 16: Network Connection And Setup

    network connection and setup network connection and setup You can set up the network settings according to your network configurations. CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 17: Using Device Manager

    USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).

  • Page 18: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. TNU-6322ER - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 19: Port Range Forward (Port Mapping) Setup

    The settings may differ depending on the connected Broadband Router model. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in For more information, refer to the user manual of the applicable router.

  • Page 20: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. 20_ network connection and setup...

  • Page 21: Connecting To The Camera

    To register your device to the <DDNS> server, visit www.samsungipolis.com and register your device first, 1. Launch the Internet browser. and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.

  • Page 22: Password Setting

    web viewer PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network.

  • Page 23: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION No operation ~ Check the power source. Make sure the power supply termination. ~ If the transmission method is set to multicast, check whether there is a router that supports No image appears. multicast in the LAN the camera is connected to. No network ~ Check the RJ45 cable termination.
  • Page 24 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
