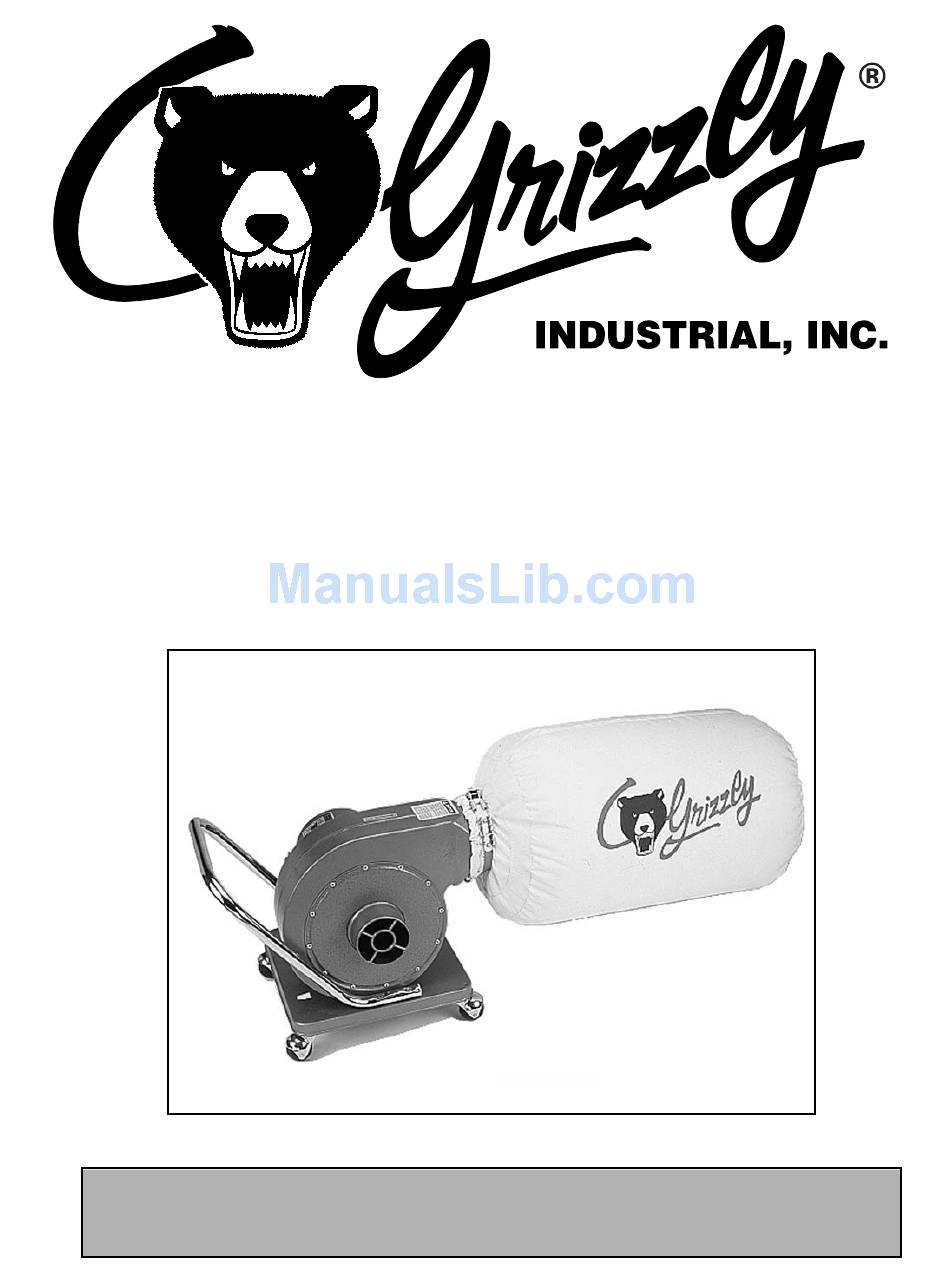

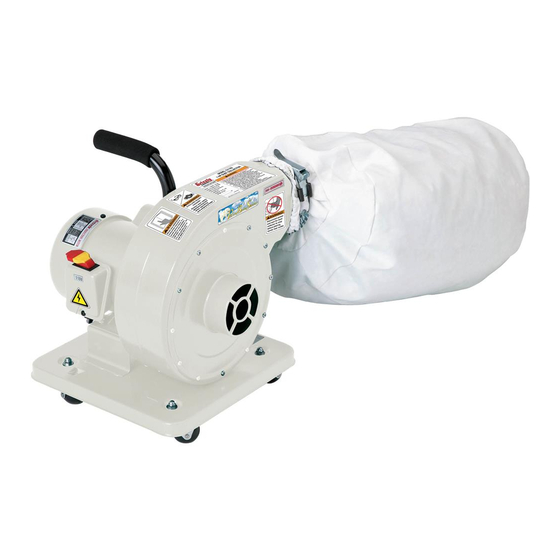

PORTABLE DUST COLLECTOR
MODEL G1163
INSTRUCTION MANUAL
COPYRIGHT © 1994 BY GRIZZLY INDUSTRIAL, INC. REG # TX 4 039 729
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
REVISED FEBRUARY, 1999. PRINTED IN U.S.A.
