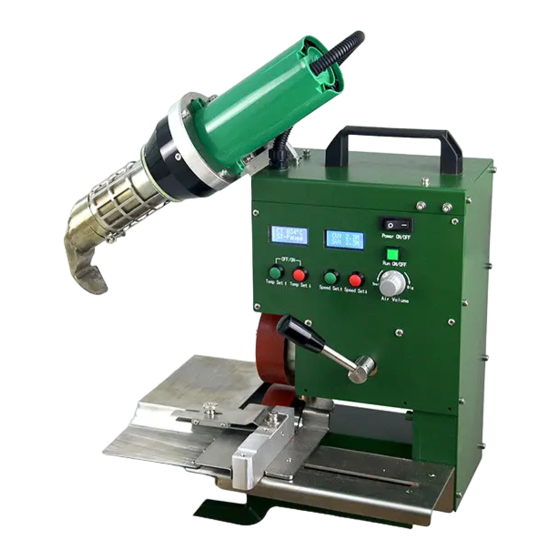

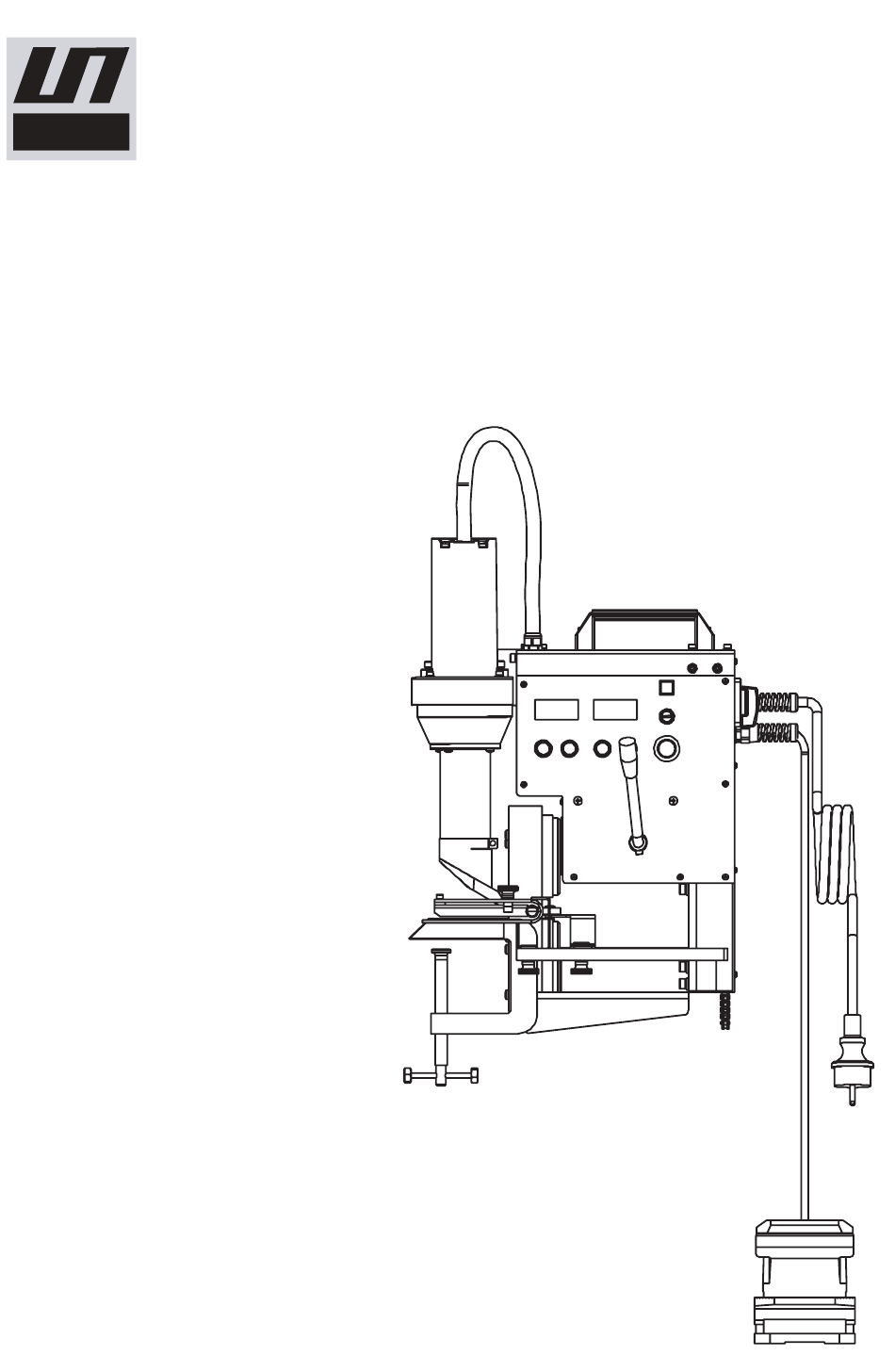

- Page 1 LESITE Lesite Technology LST-PAU Table Welder Manual...
-
Page 2: Machine Installation
LESITE LST-PAU Please read this manual carefully before using this machine, and keep it for future reference. This machine provides heat welding function for thermoplastic soft materials such as advertising cloth and industrial tarpaulin with many functions such as overlap welding, closed hemming welding, open hemming welding and stringing welding. - Page 3 LESITE LST-PAU Machine Installation 2、 Open the case cover, take out the supplied tools, remove the loose parts inside, and loosen and remove the four screws on the back of the stainless steel case with the supplied tools (shown in the back view of Figure 1). These four screws are used to secure the device to the package to avoid turbulence during transportation and damage to the device.
- Page 4 LESITE LST-PAU Machine Installation 4、 Mounting guide: Secure the guide to the main machinet with 2 screws as shown below. Hem Guide Hem Guide Screws 5、 Mounting the pad: Secure the pad to the main machine with 4 screws as shown below.
-
Page 5: Main Parts
LESITE LST-PAU Main Parts 1、Hot Air Blower 2、Welding Nozzle 3、Fixing Bracket Screw 4、Fixed Bracket Handle 5、Fixed Bracket 6、Hem Guide 7、Operation Lever 8、Control Panel 9、OFF/ON Switch 10、Handle 11、Frame 12、Motor 13、Electric Putter 14、Hot Air Blower Fixture 15、Pinch Wheel 16、Drive Wheel 17、Pad 18、Foot Pedal... -
Page 6: Control Panel
LESITE LST-PAU Control Panel OFF/ON Switch LCD Screen Power Switch Switch Air Volume Knob Speed up button Temp up buttom Temp down buttom Speed down button 1、 Power Switch: turn on or turn off the power of machine. 2、 Turn on the power switch, the LCD display is as shown in Figure 1, at this time, the air blower is not heated and is blowing natural wind. - Page 7 LESITE LST-PAU Control Panel 3、 Press the temperature up button and the temperature down button simultaneously. The display shows as Figure 2.At this time, the air blower starts to heat up to the setting temperature. Current Temp Current Speed CT: 501℃...
- Page 8 LESITE LST-PAU Welding and Adjustment Process Operations 1、 Loosen 1 move 2, lock 1 when the distance A between the edge of 2 and the edge of 8 match the welding requires. 2、 Loosen 9 adjust the position of 10 to align the right edge of 10 with the left edge of 8.
-
Page 9: Welding Steps
LESITE LST-PAU Welding Steps 1、 Adjust the corresponding position of the guide as described in point 7 and as needed. It needs the insulated plug to block the rope guide tube when it is not doing the rope welding. 2、 Turn on the machine, setting the temperature, speed and air volume as described in point 6. -
Page 10: Quality Assurance
Repairs and Spare Parts · It is strongly recommended to send the product to Lesite company or authorized repair center for professional inspection and repair. · Only original Lesite spare parts are allowed. - Page 11 FUZHOU LESITE PLASTICS WELDING TECHNOLOGY CO.,LTD Tel： +86(591)83818890 E-mail： info@lesite.com.cn Web： www.lesiteweld.com Add: 5# Jingpu Road, Pushang Industry Park, Cangshan, Fuzhou, 350007, Fujian, China...
