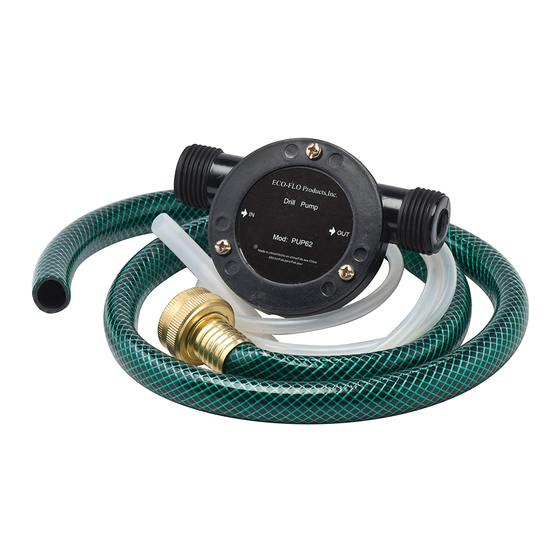

Eco-Flo PUP62 Owner's Manual

Electric drill utility pump
Hide thumbs Also See for PUP62:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
Electric Drill Utility Pump
PUP62
Drill Pump with Kit
PUP63 Drill Pump
General Safety . . . . . . . . . . . . . . . . . . . 2
Pre Assembly. . . . . . . . . . . . . . . . . . . . . 3
Planning Operation . . . . . . . . . . . . . . . . . 3
Assembly. . . . . . . . . . . .. . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance . . . . . . . . . . . . . . . . . . . . . . 7
Service Parts . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . 8
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

TABLE OF CONTENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUP62 and is the answer not in the manual?

Questions and answers

Related Manuals for Eco-Flo PUP62

Summary of Contents for Eco-Flo PUP62

  • Page 1: Table Of Contents

    Owner’s Manual Electric Drill Utility Pump PUP62 Drill Pump with Kit PUP63 Drill Pump TABLE OF CONTENTS General Safety ....2 Pre Assembly..... 3 Planning Operation .

  • Page 2: General Safety

    STOP Before you start ALWAYS USE EXTREME CAUTION maintaining this product! GENERAL SAFETY Important Safety Instructions General Safety Carefully read and follow all safety Risk of burns. Do not instructions in this manual and on pump. touch an operating motor. Motors are de- SAVE THESE INSTRUCTIONS –...

  • Page 3: Pre Assembly

    WARRANTY Warranty Warranty WHAT IS COVERED This pump is warranted against defects in material and workmanship for 90 days from date of purchase. WHAT IS COVERED WHAT IS COVERED WHAT IS NOT COVERED Pumping anything other than clean water and motor oil, and if damaged due to misuse from being Thi s pump i s guar anteed for 90 days from d ate of purchase.
  • Page 4 PLANNING OPERATION (CONTINUED) PACKAGE CONTENTS un without water or oil in the run without water or oil in the PART DESCRIPTION REPLACEMENT PART QUANTITY garden hose with a brass female fitting NUMBER Oil tube, 35 in. x 1/4 in. O.D. W/Adapter 60DRLL005A 3 in.

  • Page 5: Assembly

    ASSEMBLY Preparing to pump clean water using Preparing to pump motor oil using garden hose connected to pump adapter and tube Ensure drill is not connected Ensure drill is not connected to electrical service as you begin this process. to electrical service as you begin this process. Inspect the washer in the inlet hose to Remove the dipstick from the engine/motor make sure it is in good condition and installed...

  • Page 6: Operation

    OPERATION Preparing for operation Priming the pump NOTE: Never operate the impeller dry. Risk of electrical shock, per- Operating it dry for as little as 30 seconds can sonal injury or death. Never touch or handle ruin the pump. The impeller must be oiled to driven pump with wet hands or when standing on reduce friction or wear.

  • Page 7: Maintenance

    MAINTENANCE Normal use of the pump causes it to wear. To extend pump life: Lubricate the impeller with vegetable oil before each use by placing a few drops in pump inlet (port 1) Always flush with clear water after using Keep the suction hose/tubing as short as possible and prime the hose/tubing (fill with liquid) when possible before starting the pump Do not use a suction hose that can collapse due to vacuum pressure...

  • Page 8: Troubleshooting

    TROUBLESHOOTING Problem Probable Cause Corrective Action The pump will not prime Air is leaking into the inlet Replace the washer in the hose hose or connection fitting or replace the hose The inlet hose is clogged Clean or replace the hose The hose collapsed due to inlet Use quality, heavy duty, thick- walled hose on suction side...

  • Page 9: Warranty

    WARRANTY Retain Original Purchase Receipt for Warranty Eligibility Limited Warranty Manufacturer warrants to the original consumer purchaser (“Purchaser” or “You”) that its products are free from defects in material and workmanship for a period of 90 days from the date of the original consumer purchase. If, within 90 days from the original consumer purchase, any such product shall prove to be defective, it shall be repaired or replaced at manufacturer’s option, subject to the terms and conditions set forth herein.
